7450E00.00

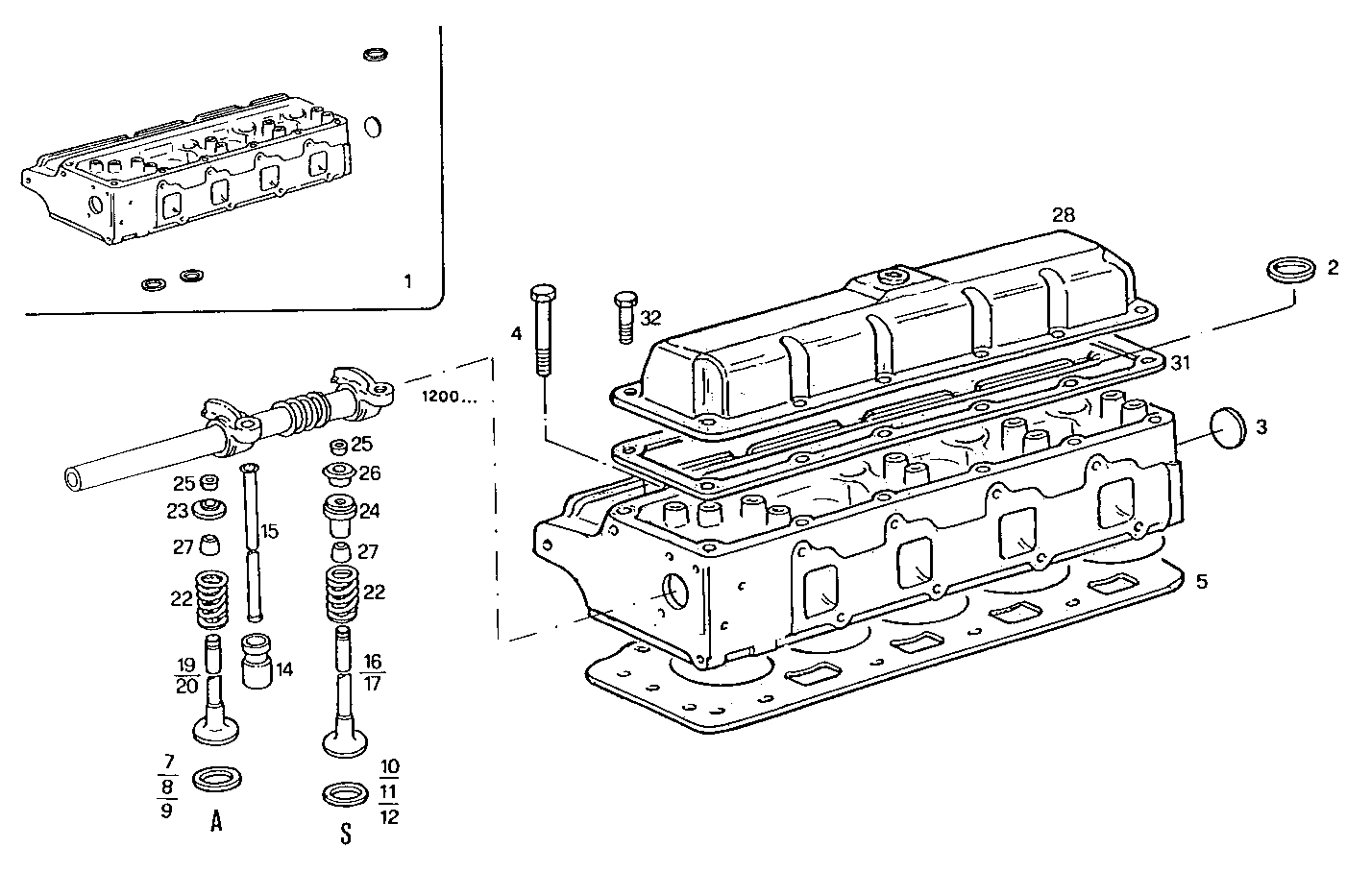

0600.153 CYLINDER HEAD
| Item |
Part number |
Description |
|
1 |
81876753 |
CYLINDER HEAD ASSY |
|
2 |
83957021 |
PLUG |
|
3 |
83957025 |
PLUG |
|
4 |
87801691 |
SCREW |
|
5 |
87800517 |
CYL.HEAD GASKET |
|
7 |
81876756 |
VALVE SEAT STD. |
|
8 |
81876763 |
VALVE SEAT +0.25 |
|
9 |
81876768 |
VALVE SEAT +0.51 |
|
10 |
81865194 |
VALVE SEAT STD. EXHAUST |
|
11 |
81865195 |
VALVE SEAT +0.25 EXHAUST |
|
12 |
81865196 |
VALVE SEAT +0.51 EXHAUST |
|
14 |
83946434 |
VALVE TAPPET |
|
15 |
81877890 |
PUSHROD |
|
16 |
81865085 |
EXHAUST VALVE |
|
17 |
81865086 |
EXHAUST VALVE 0,015 MM |
|
19 |
81865092 |
INLET VALVE |
|
20 |
81865093 |
INLET VALVE 0,015 MM |
|
22 |
83999742 |
ENGINE VALV.SPRING |
|
23 |
83958102 |
TAPPET INTAKE |
|
24 |
83952336 |
TAPPET EXHAUST |
|
25 |
81876796 |
VALVE CONE |
|
26 |
83952337 |
CAP |
|
27 |
87840154 |
RING |
|
28 |
87800920 |
CYL. HEAD COVER |
|
31 |
83976375 |
HEAD COVER GASKET |
|
32 |
83949109 |
SCREW |
