7450E00.00

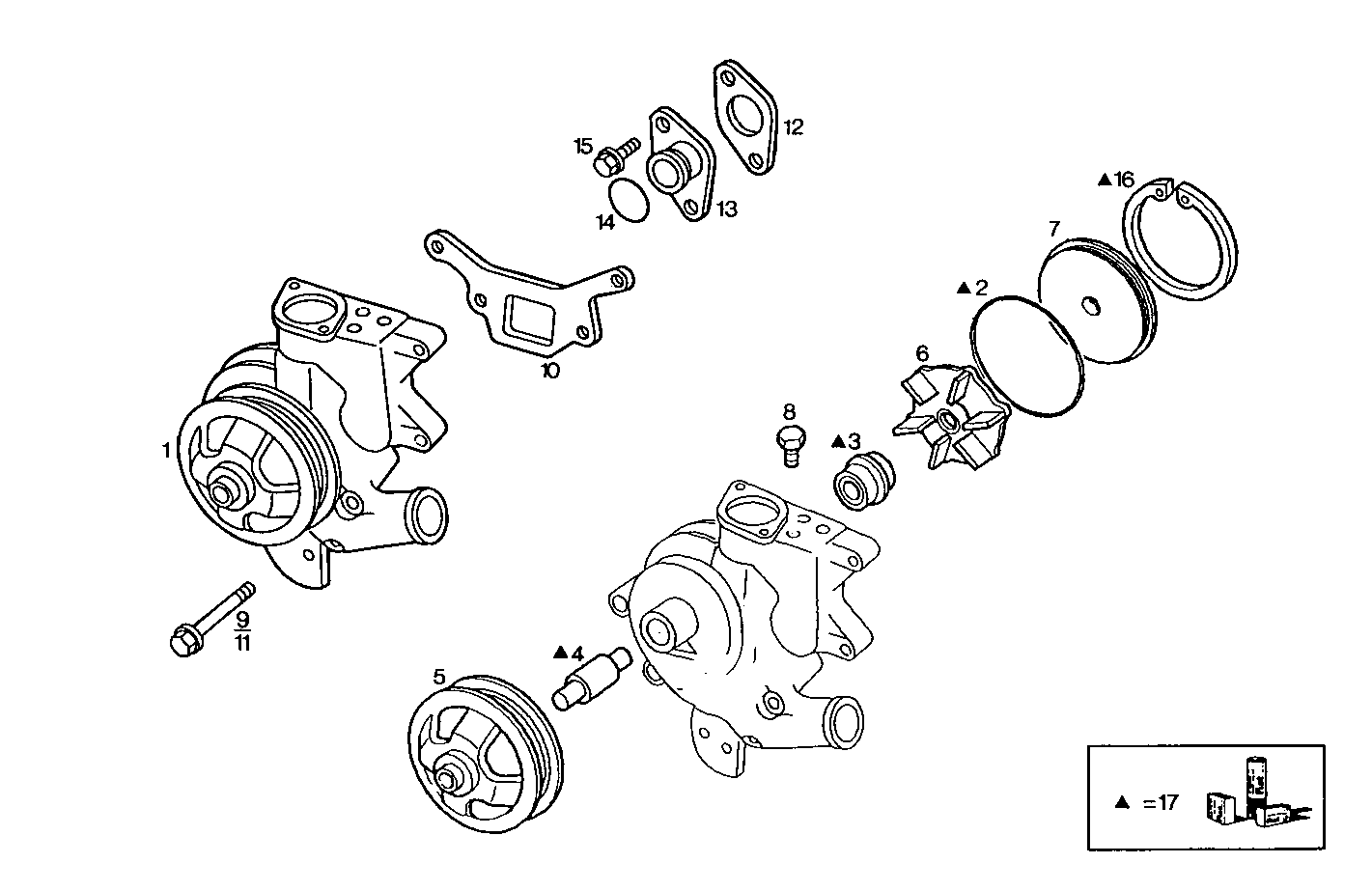

3200.101 WATER PUMP
Item | Part number | Description |
---|---|---|
1 | 87800714 | WATER PUMP ASSY |
2 | 83991498 | O-RING |
3 | 81870468 | BUSH |
4 | 83991495 | DRIVE BEARING |
5 | 83991492 | PULLEY |
6 | 81865054 | WATER PUMP IMPELL. |
7 | 83991496 | PLATE |
8 | 83984176 | PLUG |
9 | 81868093 | SCREW |
10 | 82853374 | GASKET |
11 | 81868094 | SCREW |
12 | 87800983 | FLAT ENGINE GASKET |
13 | 83999257 | FLANGE |
14 | 14463881 | O-RING Ø3,53X34,52 MM |
15 | 82853254 | SCREW |
16 | 83991497 | CIRCLIP |
17 | 81866491 | KIT-WATER PUMP |
