7450G86.05C001

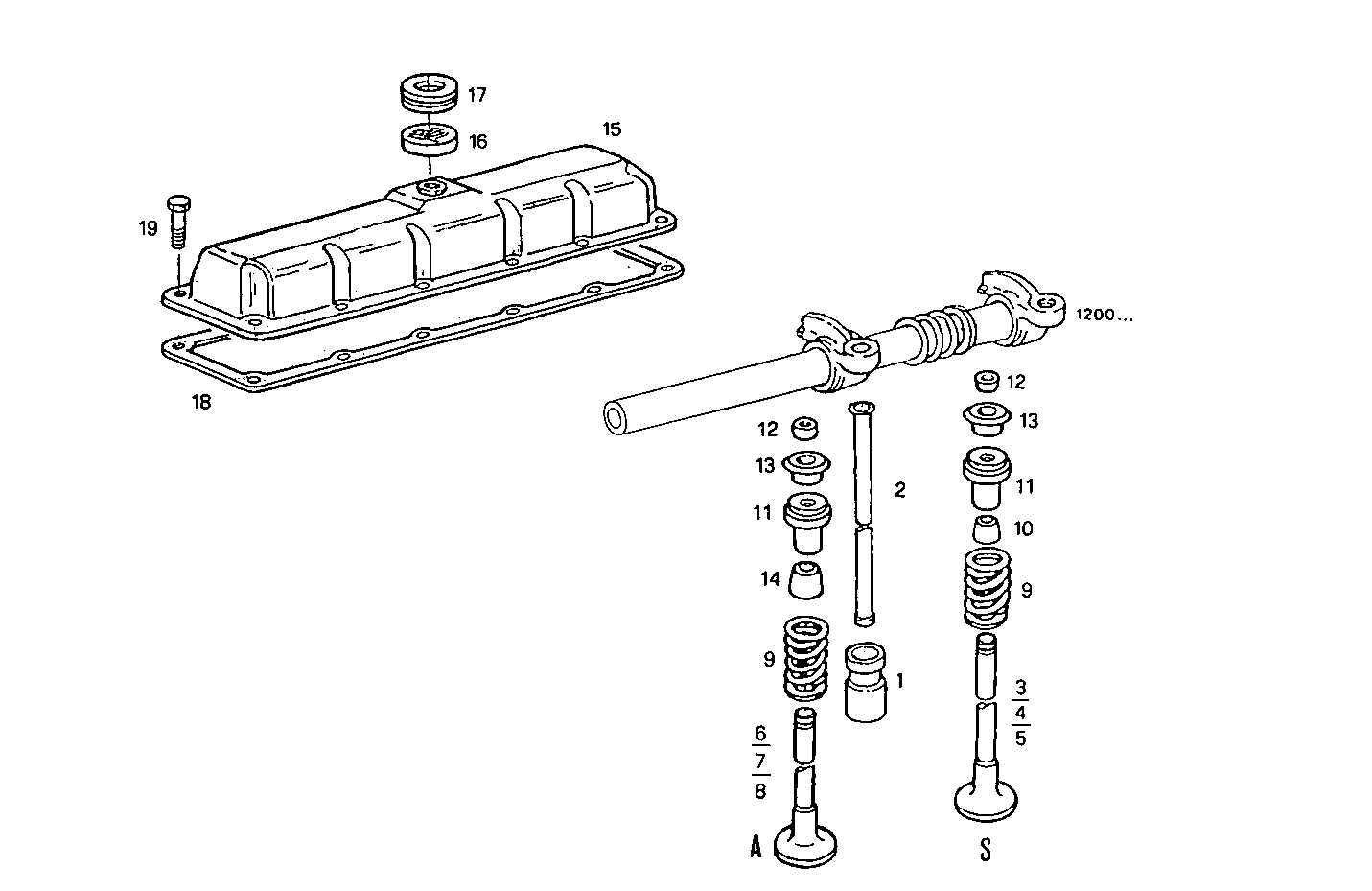

0600.093/02 CYLINDER HEAD
| Item | Part number | Description |
|---|---|---|
| 1 | 83946434 | VALVE TAPPET |
| 2 | 81877890 | PUSHROD |
| 3 | 8092915 | EXHAUST VALVE |
| 6 | 81865092 | INLET VALVE |
| 7 | 81865093 | INLET VALVE 0,015 MM |
| 8 | 81865094 | INLET VALVE 0,76 MM |
| 9 | 83999742 | ENGINE VALV.SPRING |
| 10 | 8093000 | TAPPET |
| 11 | 83952336 | TAPPET EXHAUST |
| 12 | 81876796 | VALVE CONE |
| 13 | 83952337 | CAP |
| 14 | 87840154 | RING |
| 15 | 87800919 | CYL. HEAD COVER |
| 16 | 81878954 | STRAINER |
| 17 | 83958239 | WASHER |
| 18 | 83976375 | HEAD COVER GASKET |
| 19 | 83949109 | SCREW |
