7450G86.05C001

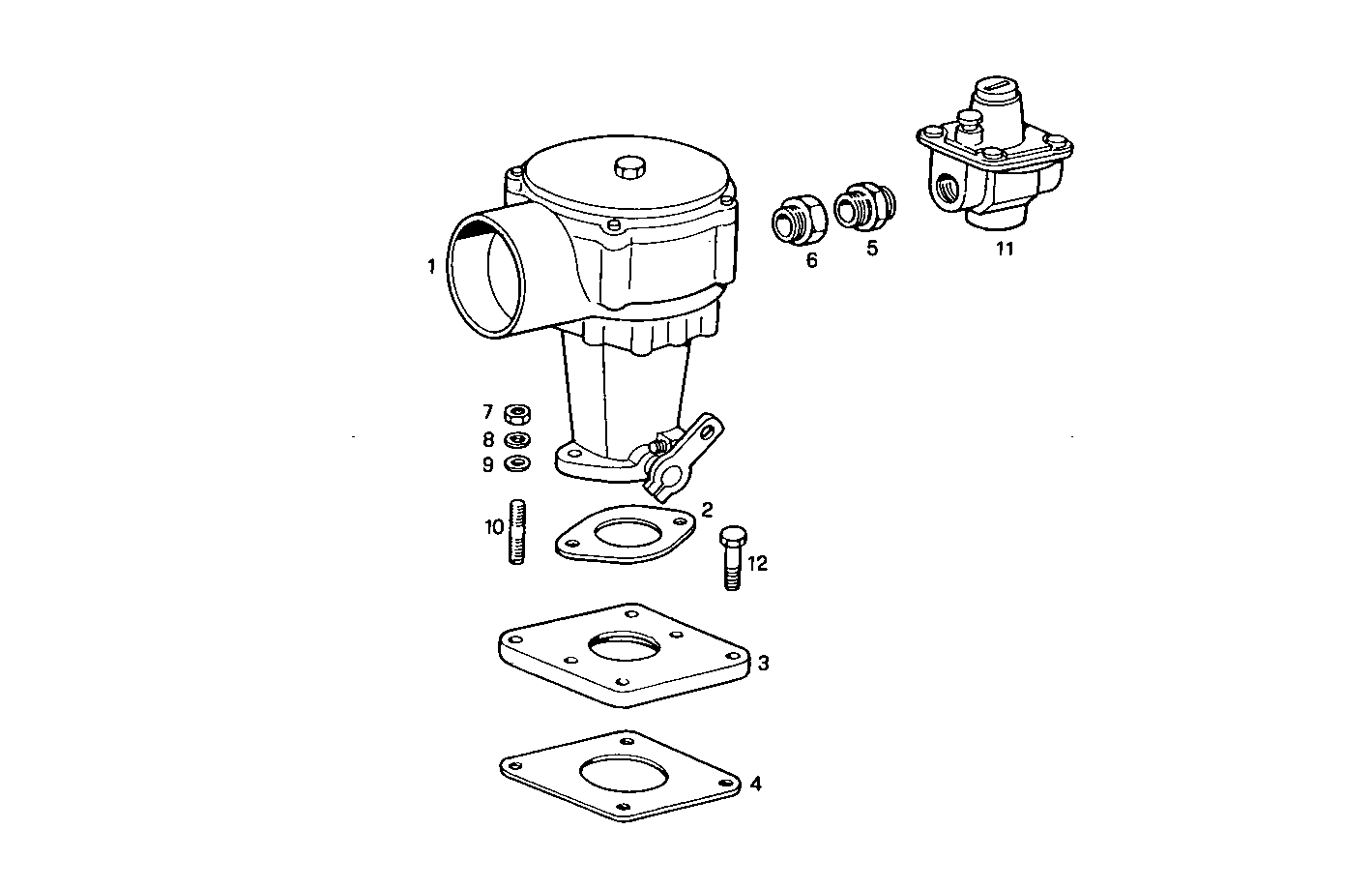

1600.005 POWERING
Item | Part number | Description |
---|---|---|
1 | 8093004 | GAS ENGINE CARBURETTOR IMPCO |
2 | 8093030 | GASKET |
3 | 8093107 | SUPPORT |
4 | 8093082 | GASKET |
5 | 8093006 | PIPE SOCKET |
6 | 8093007 | PIPE SOCKET |
7 | 8093121 | NUT |
8 | 8093122 | WASHER |
9 | 8093117 | WASHER |
10 | 8093127 | STUD |
11 | 8093002 | GAS PRESSURE REDUCER |
12 | 8093287 | SCREW |
