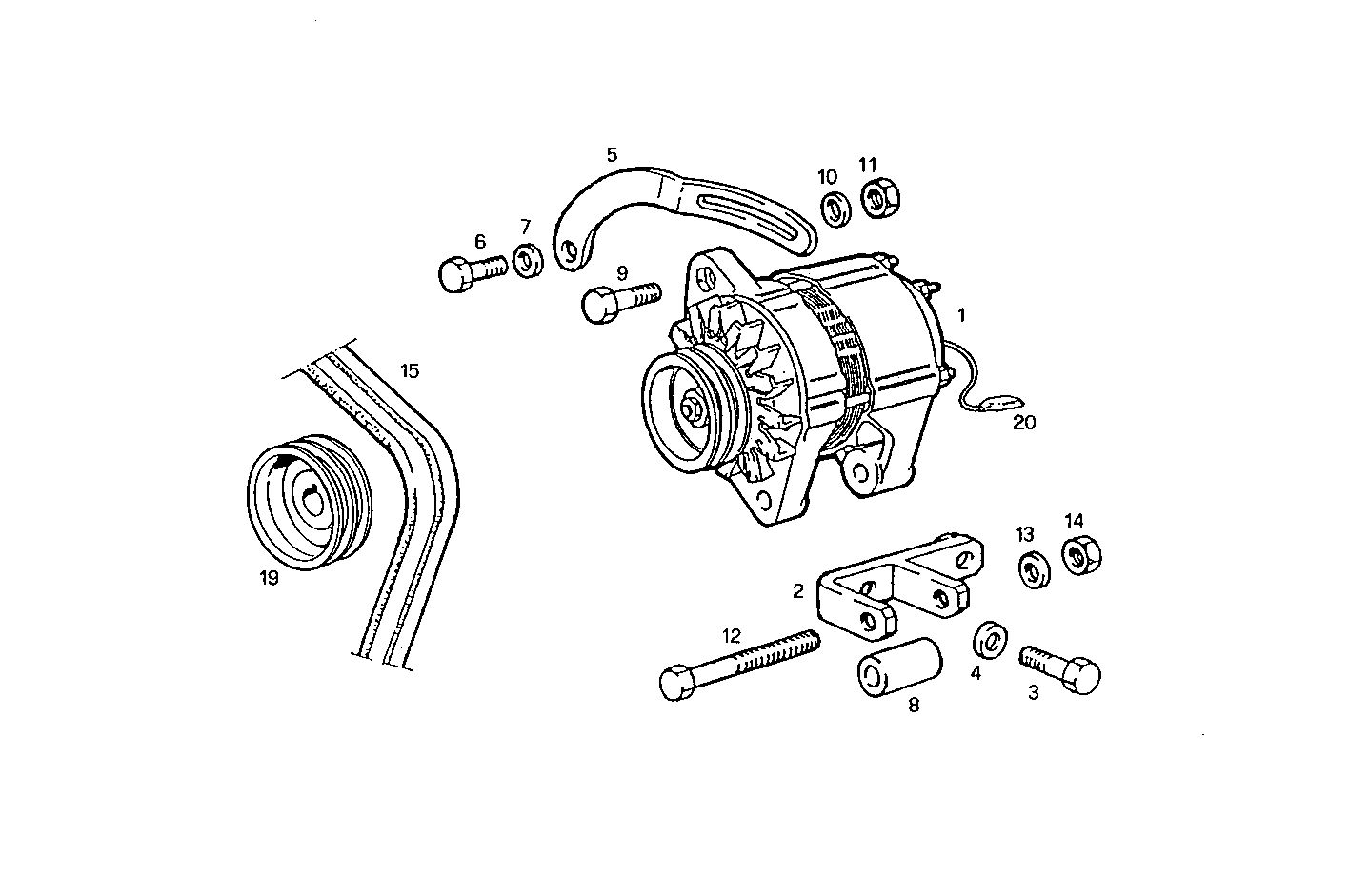

| Item |
Part number |
Description |
|
1 |
8016719 |
ALTERNATOR ASSY |
|
2 |
8015283 |
SUPPORT |
|
3 |
8014502 |
SCREW |
|
4 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
5 |
8015344 |
BELT TENSIONER |
|
6 |
8014111 |
SCREW |
|
7 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
8 |
8015304 |
SPACING BAR |
|
9 |
16607924 |
HEXAGON BOLT M10X1,5X40 MM |
|
10 |
17090474 |
SPRING WASHER Ø10X27 MM SP=2,5 |
|
11 |
17152921 |
HEXAGON NUT M10X1,5 |
|
12 |
16611324 |
HEXAGON BOLT M12X130 MM |
|
13 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
14 |
17038521 |
HEXAGON NUT M12X1,5 |
|
15 |
4631961 |
SET OF V-BELTS KIT |
|
19 |
8014706 |
PULLEY |
|
20 |
8105654 |
WIRE/CABLE |
