7450i16.05

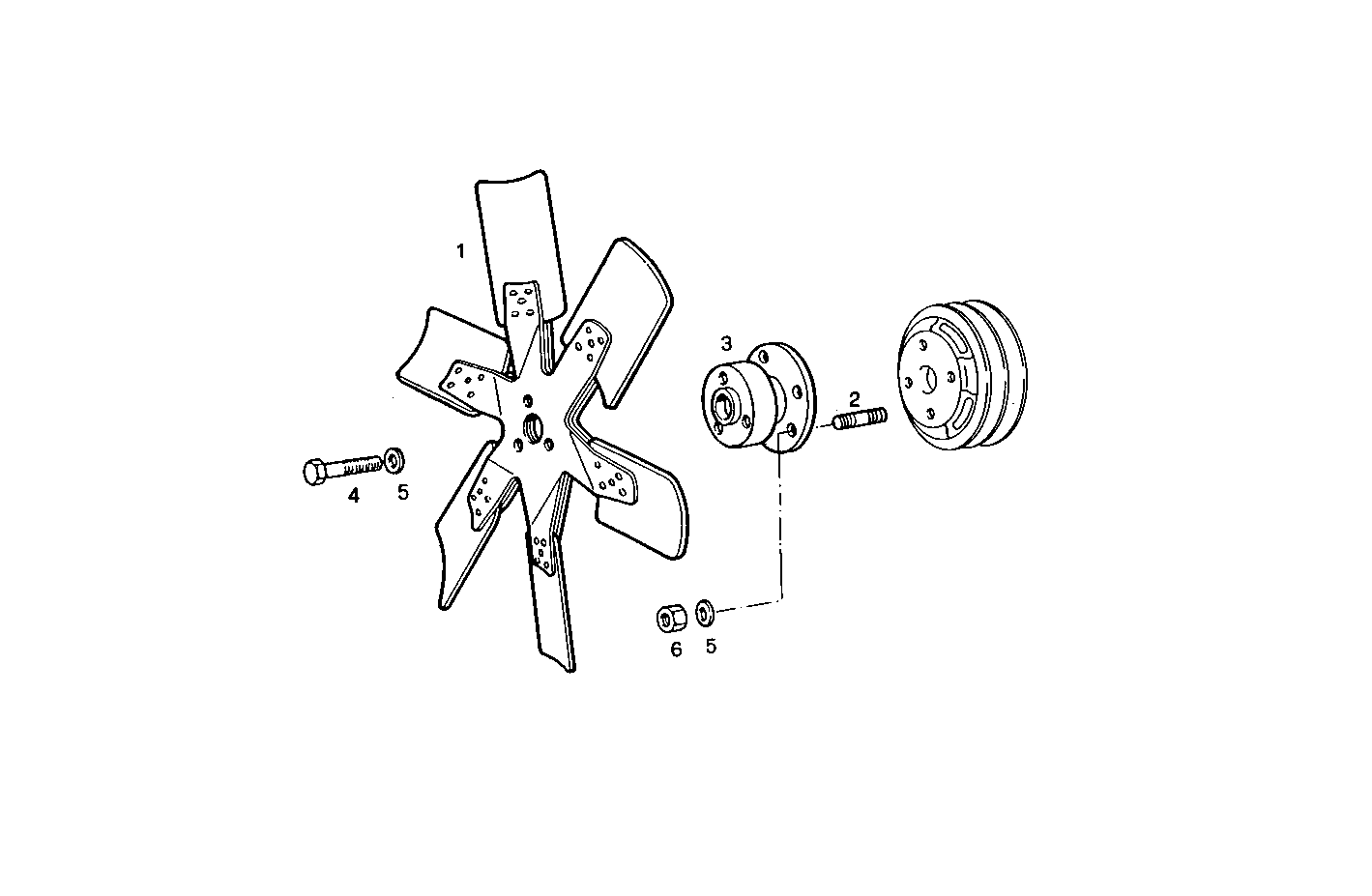

A08010029 PUSHER FAN - on water pump
Item | Part number | Description |
---|---|---|
1 | 8107257 | FAN Ø450 MM |
2 | 8014223 | STUD |
3 | 8014222 | SPACING BAR |
4 | 16605524 | HEXAGON BOLT M8X20 MM |
5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
6 | 17037931 | HEXAGON NUT M8X1,25 |
