7450i16.05A520

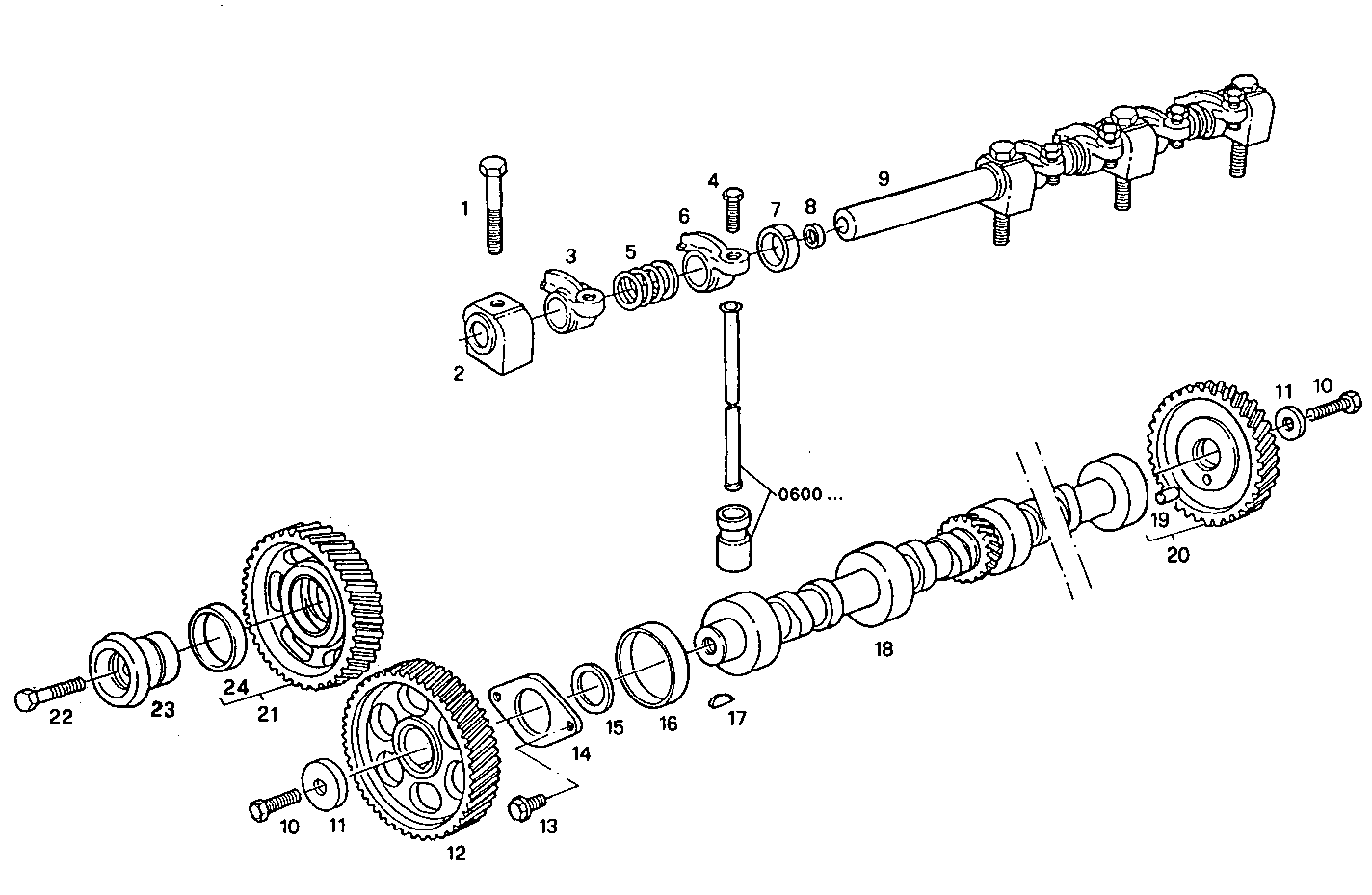

1250.050 TIMING PARTS
Item |
Part number |
Description |
1 |
87801690 |
SCREW |
2 |
83903589 |
SUPPORT |
3 |
83956710 |
ROCKER ARM INTAKE |
4 |
83963749 |
SCREW |
5 |
81804341 |
SPRING |
6 |
81804316 |
ROCKER ARM EXHAUST |
7 |
81818731 |
SPACING BAR |
8 |
83417040 |
PLUG |
9 |
83960174 |
ROCKER SHAFT |
10 |
83909101 |
SCREW |
11 |
81804024 |
WASHER |
12 |
83963173 |
GEAR |
13 |
83956692 |
SCREW |
14 |
83957730 |
FLANGE |
15 |
81804020 |
SPACING BAR |
16 |
87800272 |
BUSH |
17 |
83416019 |
KEY |
18 |
83999236 |
CAMSHAFT |
19 |
81877662 |
PIN |
20 |
83937074 |
GEAR ASSY |
21 |
83963174 |
GEAR ASSY |
22 |
82852337 |
SCREW |
23 |
87840404 |
BUSH |
24 |
83923678 |
BUSH |
