7450SE00.00

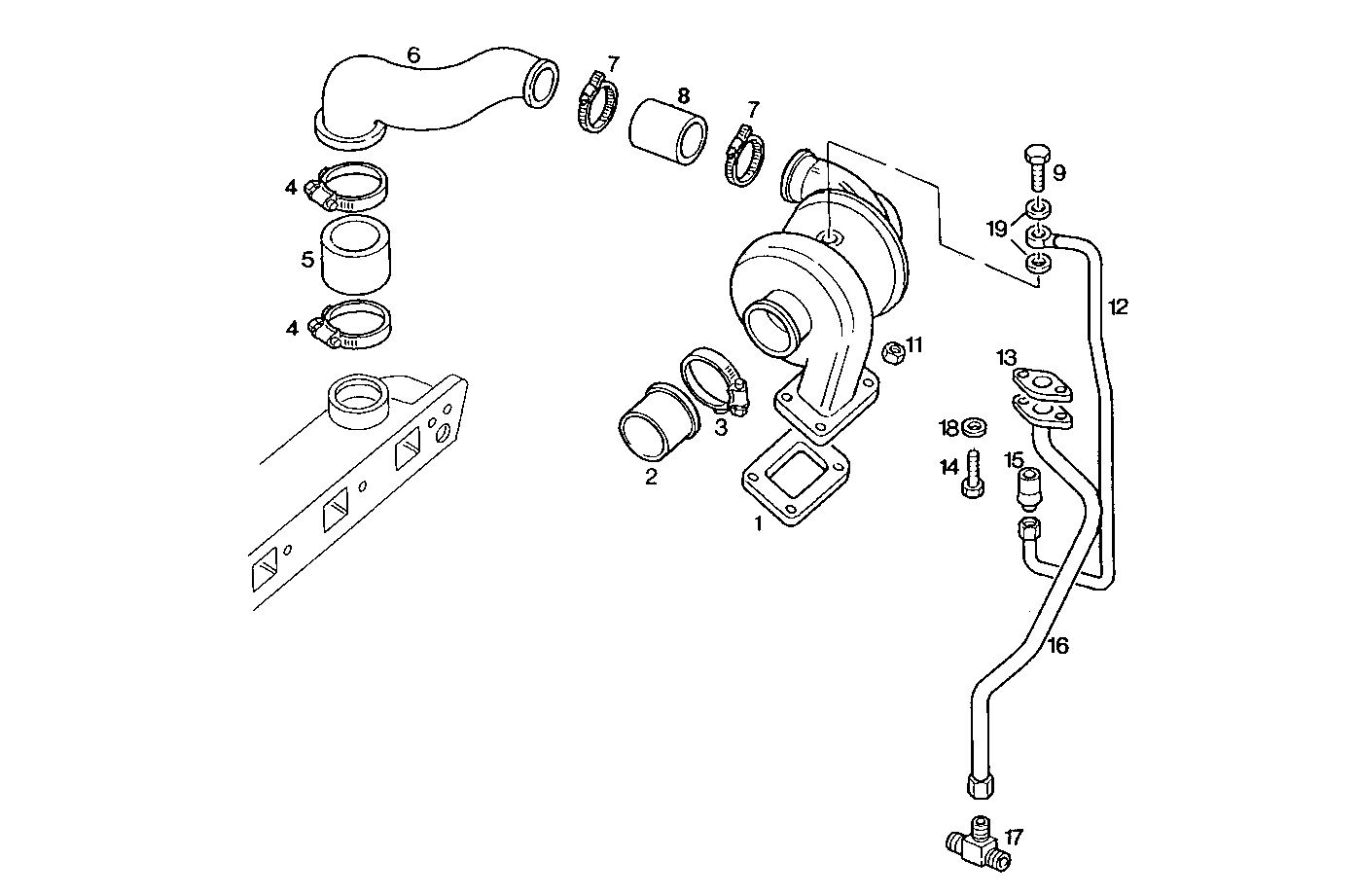

2420.162 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 83911642 | GASKET |
| 2 | 8014613 | FLANGE |
| 3 | 8015368 | CLIP 150 KVA |
| 4 | 81871498 | CLIP |
| 5 | 81862808 | RUBBER SLEEVE |
| 6 | 81868455 | INTAKE ELBOW |
| 7 | 81871496 | CLIP |
| 8 | 81868456 | RUBBER SLEEVE |
| 9 | 87801024 | SCREW CONNECTOR |
| 11 | 83993005 | NUT |
| 12 | 87801699 | OIL LINE |
| 13 | 81862805 | GASKET |
| 14 | 82880843 | SCREW |
| 15 | 81865543 | PIPE SOCKET |
| 16 | 87801748 | OIL LINE |
| 17 | 81869032 | PIPE SOCKET |
| 18 | 85700656 | WASHER |
| 19 | 87801445 | GASKET |
