7450SE00.00

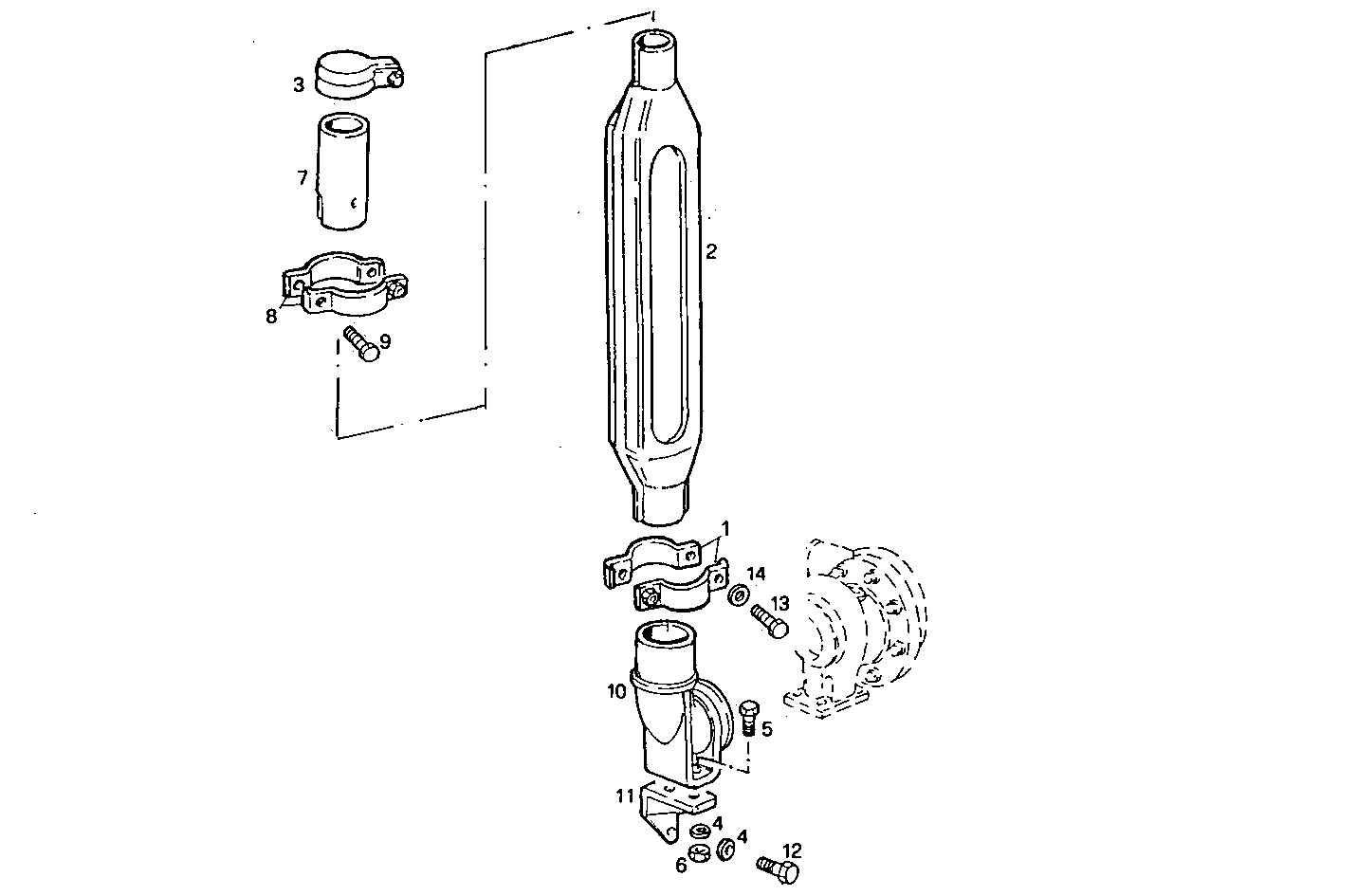

A23010013 VERTICAL SILENCER
| Item | Part number | Description |
|---|---|---|
| 1 | 5116800 | CLIP |
| 2 | 5152184 | SILENCER |
| 3 | 5140885 | COVER ASSY |
| 7 | 8015188 | EXHAUST PIPE |
| 8 | 5116798 | CLIP ASSY [from 06-93] |
| 10 | 8016483 | EXHAUST ELBOW |
| 11 | 8016535 | SUPPORT |
| 12 | 8017639 | SCREW |
