7450Si15.05A500

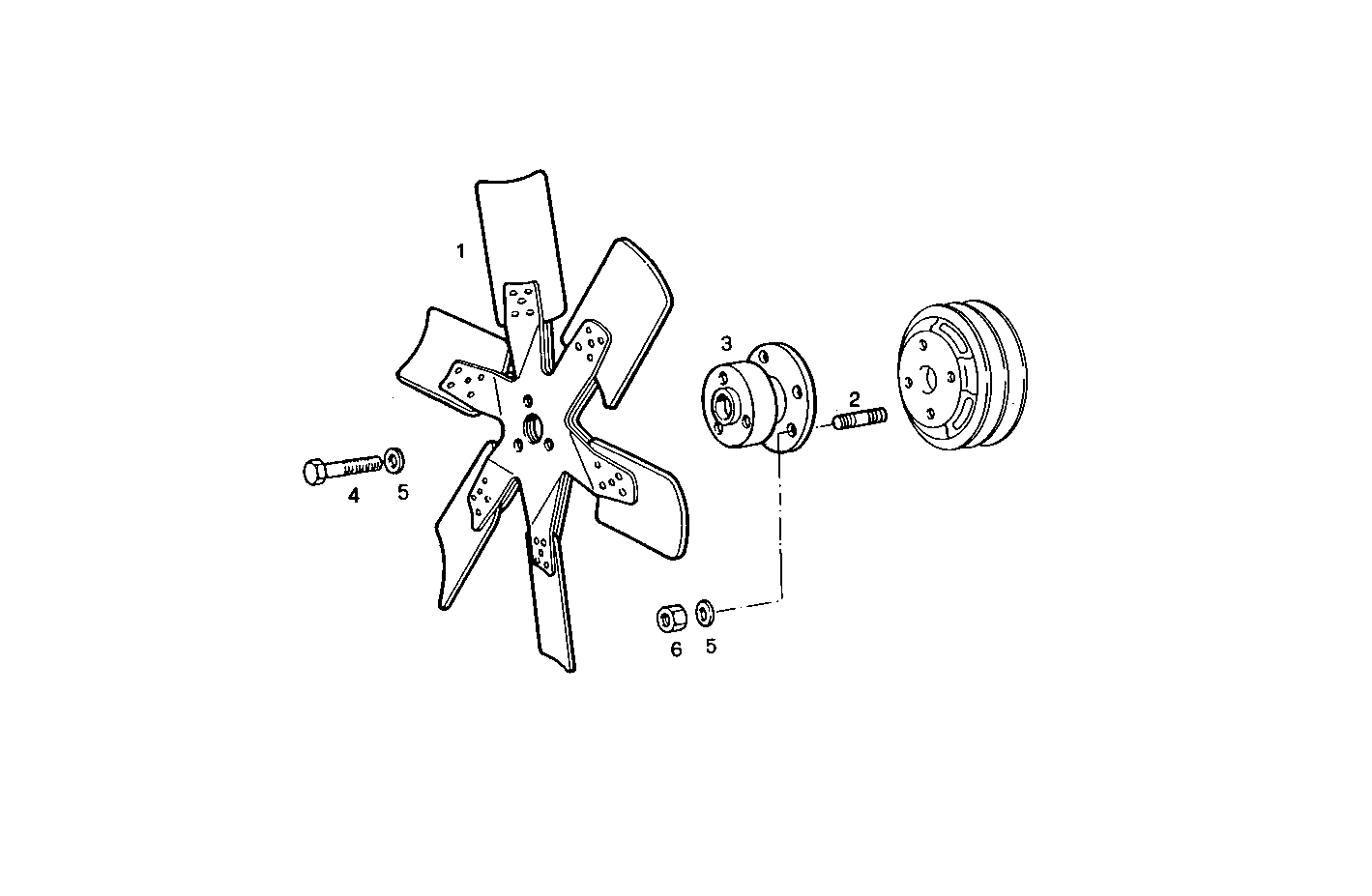

A08010029 PUSHER FAN - on water pump

Iveco/FPT PUSHER FAN

Item Part number Description
1 8107257 FAN Ø450 MM
2 8014223 STUD
3 8014222 SPACING BAR
4 16605524 HEXAGON BOLT M8X20 MM
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 17037931 HEXAGON NUT M8X1,25
