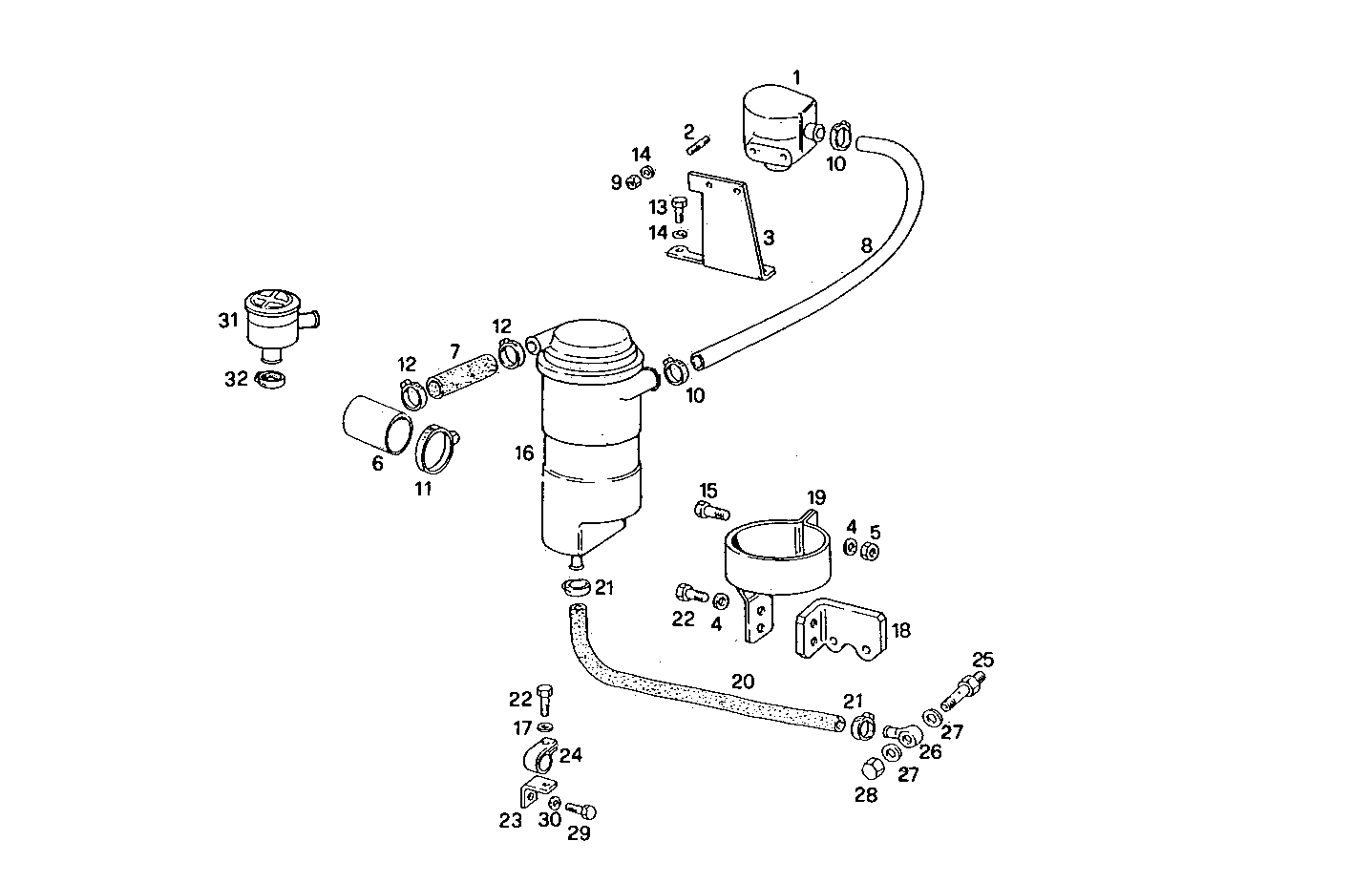

0450.084 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 8016815 BREATHER [from 09-93]
2 16731124 STUD M10X20
3 8016833 RETAINER [from 09-93]
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 17037931 HEXAGON NUT M8X1,25
6 8021578 FILTER HOSE
7 8020824 FILTER HOSE
8 8020862 AIR HOSE
9 17038121 HEXAGON NUT M10
10 17764691 CLIP Ø25/40 MM
11 17765091 CLIP Ø60/80 MM
12 17764592 CLIP Ø20/32 MM
13 8015185 SCREW
14 17090174 SPRING WASHER Ø10X20 MM
15 16605524 HEXAGON BOLT M8X20 MM
16 7303441 BREATHER [up to 03-97]
17 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
18 8015130 RETAINER
19 4860370 SUPPORT [up to 03-97]
20 8013352 OIL HOSE [up to 03-97]
21 17764491 CLIP Ø16/25 MM
22 16605424 SCREW M8X16 MM (8.8)
23 8110294 RETAINER
24 17316990 LOCK/YOKE
25 8015162 PIPE SOCKET
26 98405552 PIPE SOCKET
27 98474308 SEAL GASKET Ø14X22 MM
28 10182817 LOCK PLUG
29 16603724 HEXAGON BOLT M6X20 MM (8.8)
30 17088974 SPRING WASHER Ø6X18X1,4 MM
31 4810557 BYPASS VALVE
32 18088391 CLIP Ø16/25 MM
