7450Si16.05

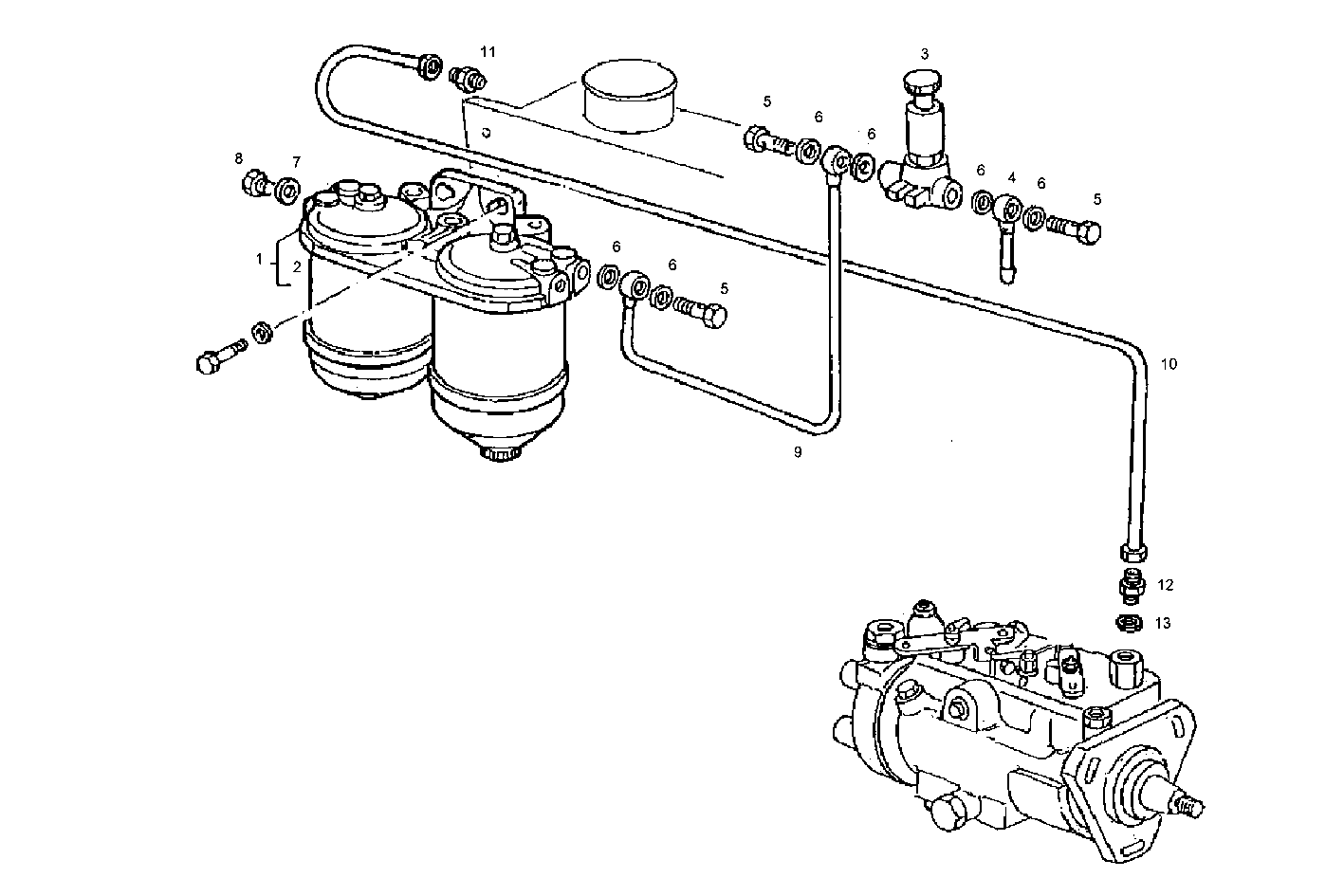

2030.087 FUEL LINES
Item | Part number | Description |
---|---|---|
1 | 98416659 | FUEL FILTER ASSY |
2 | 1901929 | FUEL FILTER ELEM. |
3 | 4797319 | HAND PUMP ASSY |
4 | 98404882 | PIPE SOCKET Ø8 MM |
5 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
6 | 98474308 | SEAL GASKET Ø14X22 MM |
7 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
8 | 16992311 | LOCK PLUG M14X1,5 |
9 | 8014056 | FUEL LINE |
10 | 8016057 | FUEL LINE |
11 | 8016056 | THERMO-STARTER |
12 | 8014066 | PIPE SOCKET |
13 | 17278081 | O-RING Ø10,82X1,78 MM |
