7450Si16.05

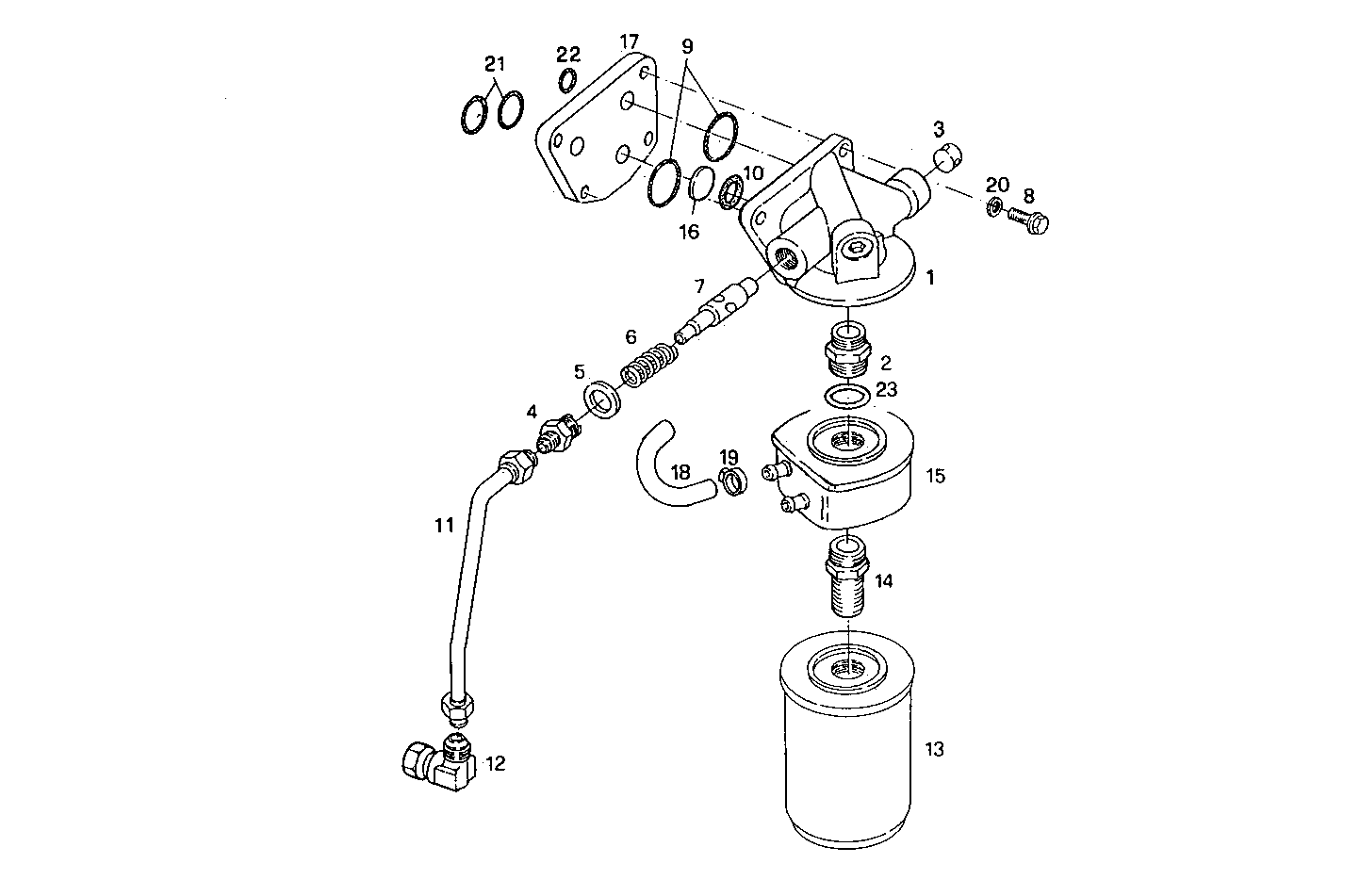

3010.109 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 87802052 | SUPPORT |
| 2 | 8013049 | PIPE SOCKET |
| 3 | 82926938 | PLUG |
| 4 | 81869029 | PIPE SOCKET |
| 5 | 80167266 | WASHER |
| 6 | 81868595 | SPRING |
| 7 | 83999649 | VALVE |
| 8 | 8020539 | SCREW |
| 9 | 14463881 | O-RING Ø3,53X34,52 MM |
| 10 | 83958249 | O-RING |
| 11 | 81869030 | OIL LINE |
| 12 | 80182977 | PIPE SOCKET |
| 13 | 8014680 | OIL FILTER CARTRIDGE |
| 14 | 8020540 | PIPE SOCKET |
| 15 | 8012973 | OIL/WATER HEAT EXCHANGER |
| 16 | 81869031 | PLUG |
| 17 | 8018329 | SPACING BAR |
| 18 | 8020541 | WATER HOSE |
| 19 | 17764592 | CLIP Ø20/32 MM |
| 20 | 17090174 | SPRING WASHER Ø10X20 MM |
| 21 | 17289281 | O-RING Ø34,5 MM SP=3,53 MM |
| 22 | 17288481 | O-RING Ø21,82X3,53 MM |
| 23 | 98429617 | RUBBER RING |
