7450Si16.05

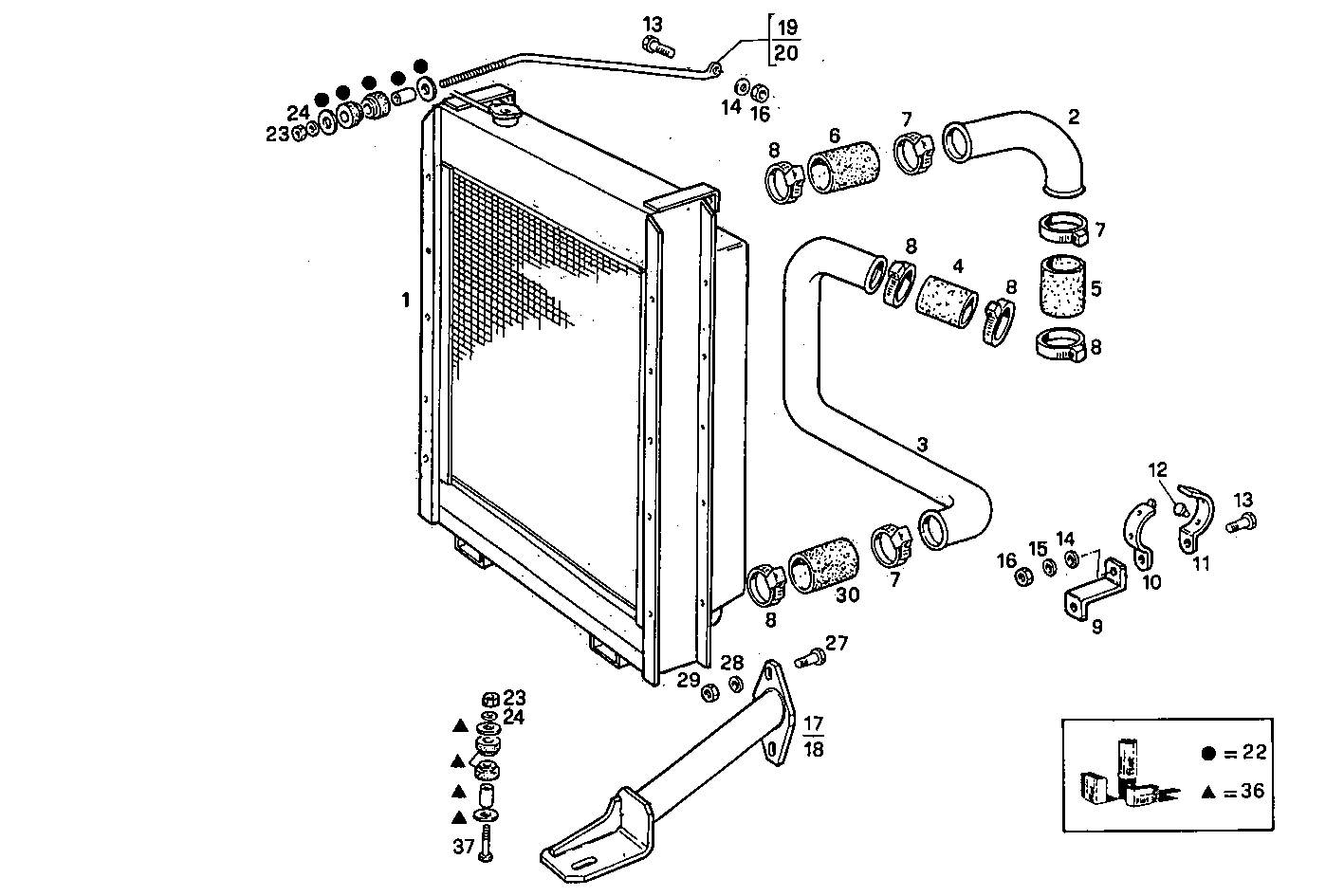

A22010044 RADIATOR FOR SETTING TILL MAX POWER

Iveco/FPT RADIATOR FOR SETTING TILL MAX POWER

Item Part number Description
1 8015686 WATER RADIATOR ASSY
2 8021529 WATER PIPE
3 8014455 WATER PIPE
4 17743887 RUBBER SLEEVE
5 8813238 WATER HOSE
6 4788148 WATER HOSE
7 17764891 CLIP Ø40/60 MM
8 17764791 CLIP Ø32/50 MM
9 8015261 RETAINER
10 8113298 CLAMP
11 8113299 CLAMP
12 1366290 RUBBER LUG
13 16605624 HEXAGON BOLT M8X25 MM (8.8)
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 17094914 WASHER 8x16
16 17037931 HEXAGON NUT M8X1,25
17 8021544 SUPPORT LEFT
18 8021533 SUPPORT RIGHT
19 8020577 TIE ROD LEFT
20 8020578 TIE ROD RIGHT
22 8090413 KIT-RADIATOR A.S. COMPLETE
23 17038421 HEXAGON NUT M12 (8)
24 17091074 WASHER Ø12X24X2,8 MM
27 16614824 SCREW M16X50
28 17092174 SPRING WASHER Ø16X32X3,4
29 17038921 NUT M16X2
37 16610724 SCREW M12X1,75X70 MM
