7450Si16.05A500

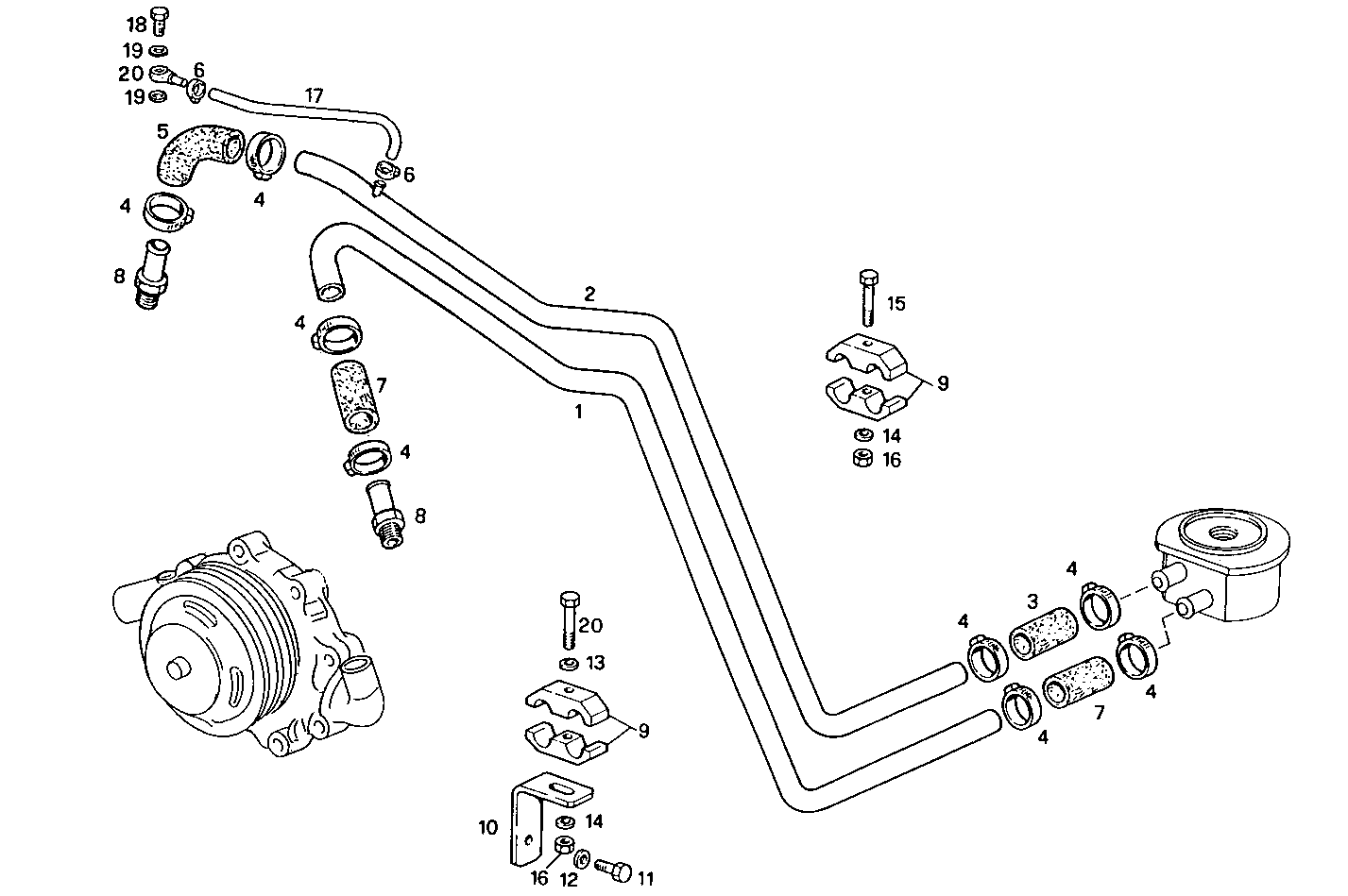

3210.109 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8020544 | WATER PIPE |
| 2 | 8020542 | WATER PIPE |
| 3 | 17736987 | WATER HOSE |
| 4 | 17764592 | CLIP Ø20/32 MM |
| 5 | 98443339 | WATER HOSE |
| 6 | 18087692 | CLIP Ø8/12 MM |
| 7 | 98418717 | WATER HOSE Ø18 MM |
| 8 | 8015361 | PIPE SOCKET |
| 9 | 8016628 | CLAMP |
| 10 | 8021579 | RETAINER |
| 11 | 8014502 | SCREW |
| 12 | 17090174 | SPRING WASHER Ø10X20 MM |
| 13 | 17094914 | WASHER 8x16 |
| 14 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 15 | 16605824 | HEXAGON BOLT M8X35 MM |
| 16 | 17037931 | HEXAGON NUT M8X1,25 |
| 17 | 8017131 | WATER HOSE |
| 18 | 4864078 | BANJO BOLT M8X1,25 |
| 19 | 98474303 | WASHER Ø8X14 MM SP=2,3 MM |
| 20 | 4551099 | SWIVEL COUPLING |
