7450Si16.05A500

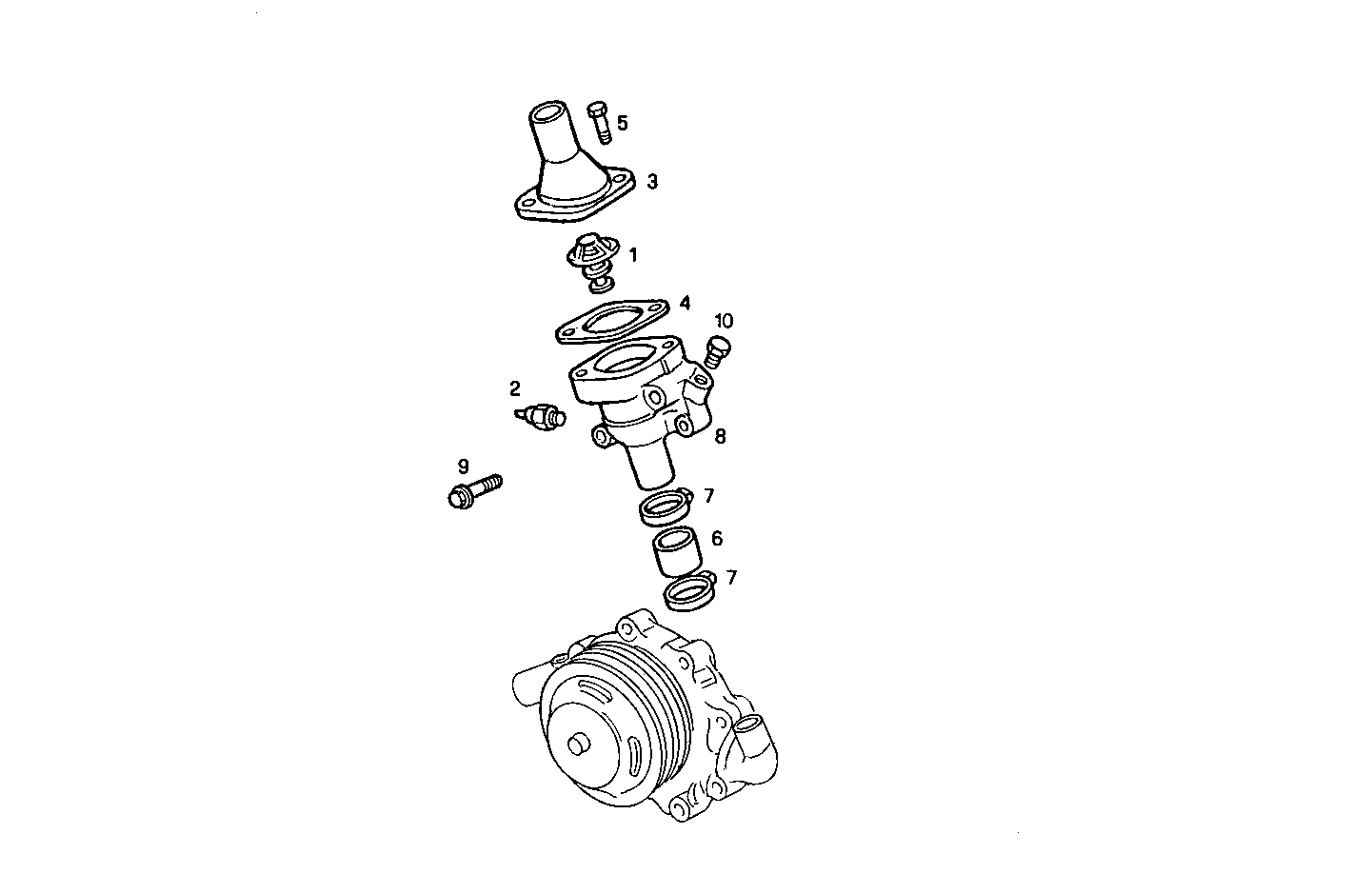

3220.033 THERMOSTAT
| Item | Part number | Description |
|---|---|---|
| 1 | 83916340 | THERMOSTAT |
| 2 | 83917490 | TRANSMITTER |
| 3 | 83959426 | COVER |
| 4 | 81805624 | GASKET |
| 5 | 81821198 | SCREW |
| 6 | 83946457 | RUBBER SLEEVE |
| 7 | 81811886 | CLIP |
| 8 | 82866720 | THERMOSTAT BODY |
| 9 | 83946468 | SCREW |
| 10 | 81863681 | PLUG |
