7450Si16.05A500

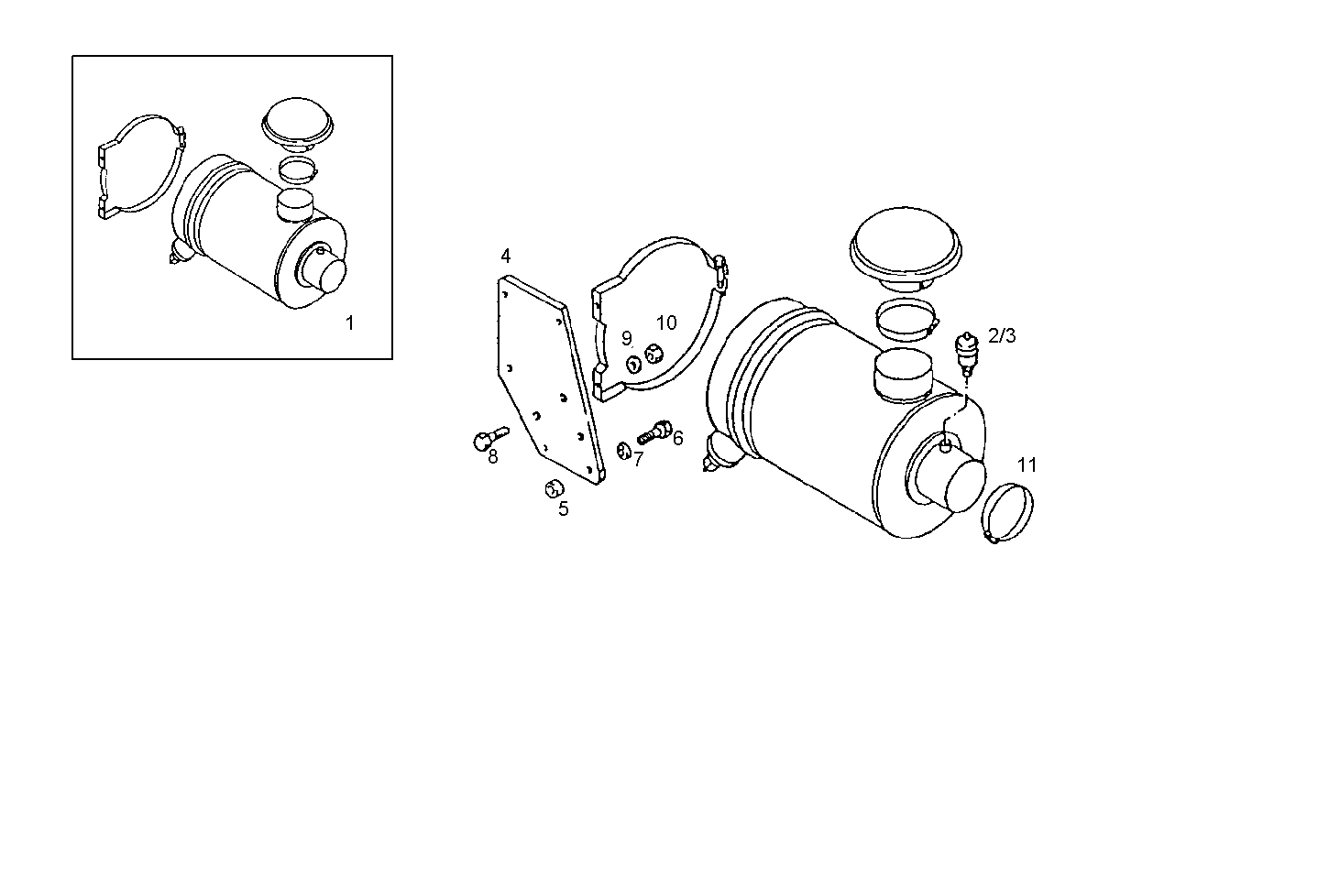

A21210053 DRY AIR CLEANER - with mechanical clogging gauge - genset
Item | Part number | Description |
---|---|---|
1 | 8031382 | AIR CLEANER ASSY |
2 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
3 | 8022540 | CHOCKED FILTER INDIC. MECHANICAL |
4 | 8019990 | PLATE |
5 | 8014162 | SPACING BAR |
6 | 8114495 | SCREW |
7 | 17091074 | WASHER Ø12X24X2,8 MM |
8 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
10 | 17037921 | HEXAGON NUT M8X1,25 |
11 | 17765391 | CLIP Ø90/110 MM |
