7450SU00.00

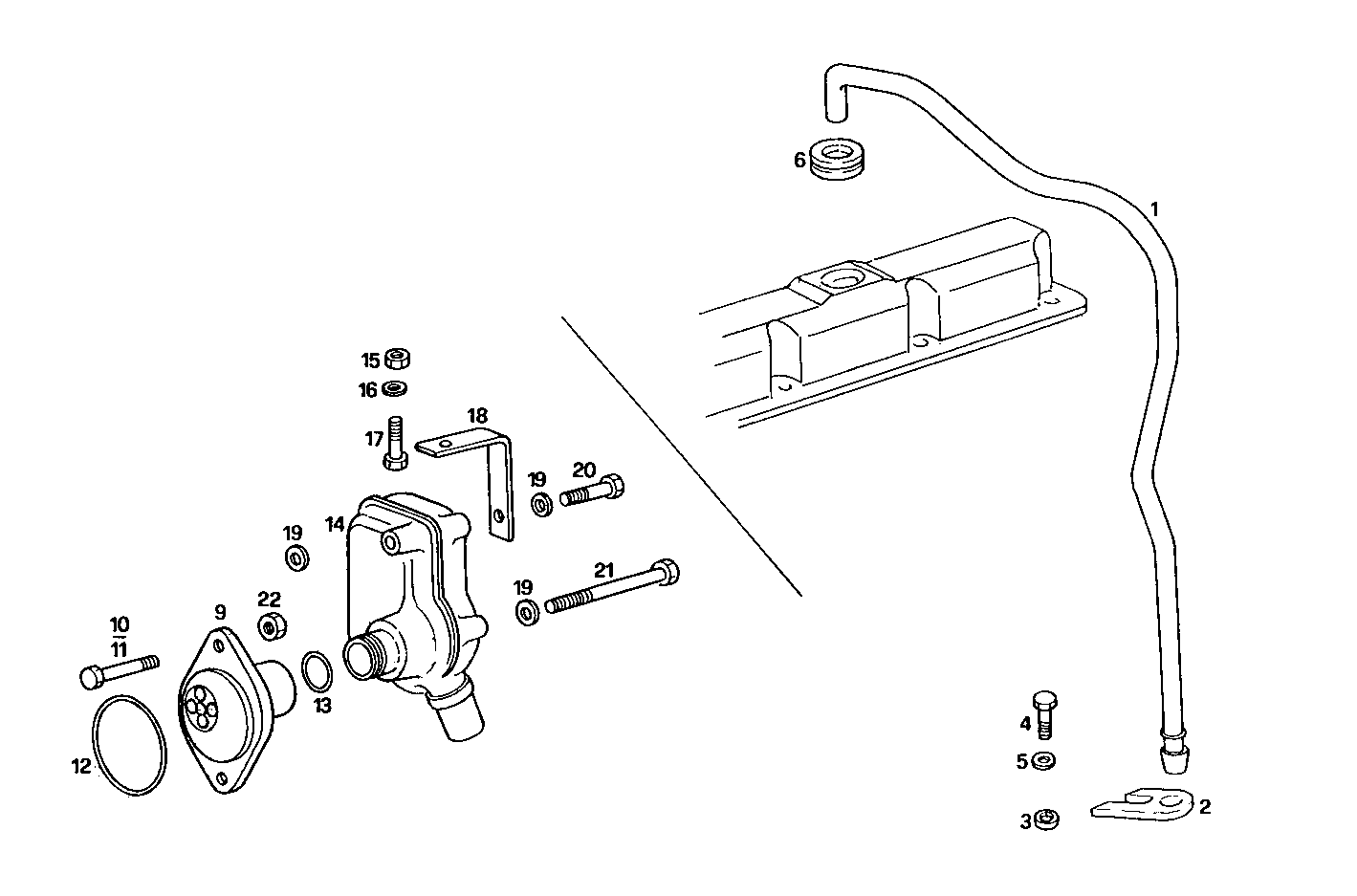

0450.157 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 87801109 | AIR PIPE/DUCT |
| 2 | 83991667 | RETAINER [from 05-96] |
| 3 | 8109544 | SPACING BAR [from 05-96] |
| 4 | 8014502 | SCREW |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 87801816 | WASHER |
| 9 | 8030077 | COVER |
| 10 | 81868845 | SCREW |
| 11 | 81876950 | SCREW |
| 12 | 17290881 | O-RING Ø82,14X3,53 MM |
| 13 | 4600893 | GASKET |
| 14 | 4624515 | BREATHER ASSY |
| 15 | 17037931 | HEXAGON NUT M8X1,25 |
| 16 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 17 | 16606724 | HEXAGON BOLT M8X90 MM |
| 18 | 87801625 | RETAINER |
| 19 | 4716734 | WASHER |
| 20 | 8014110 | SCREW |
| 21 | 8028003 | SCREW |
| 22 | 81862931 | NUT |
