7450SU00.00

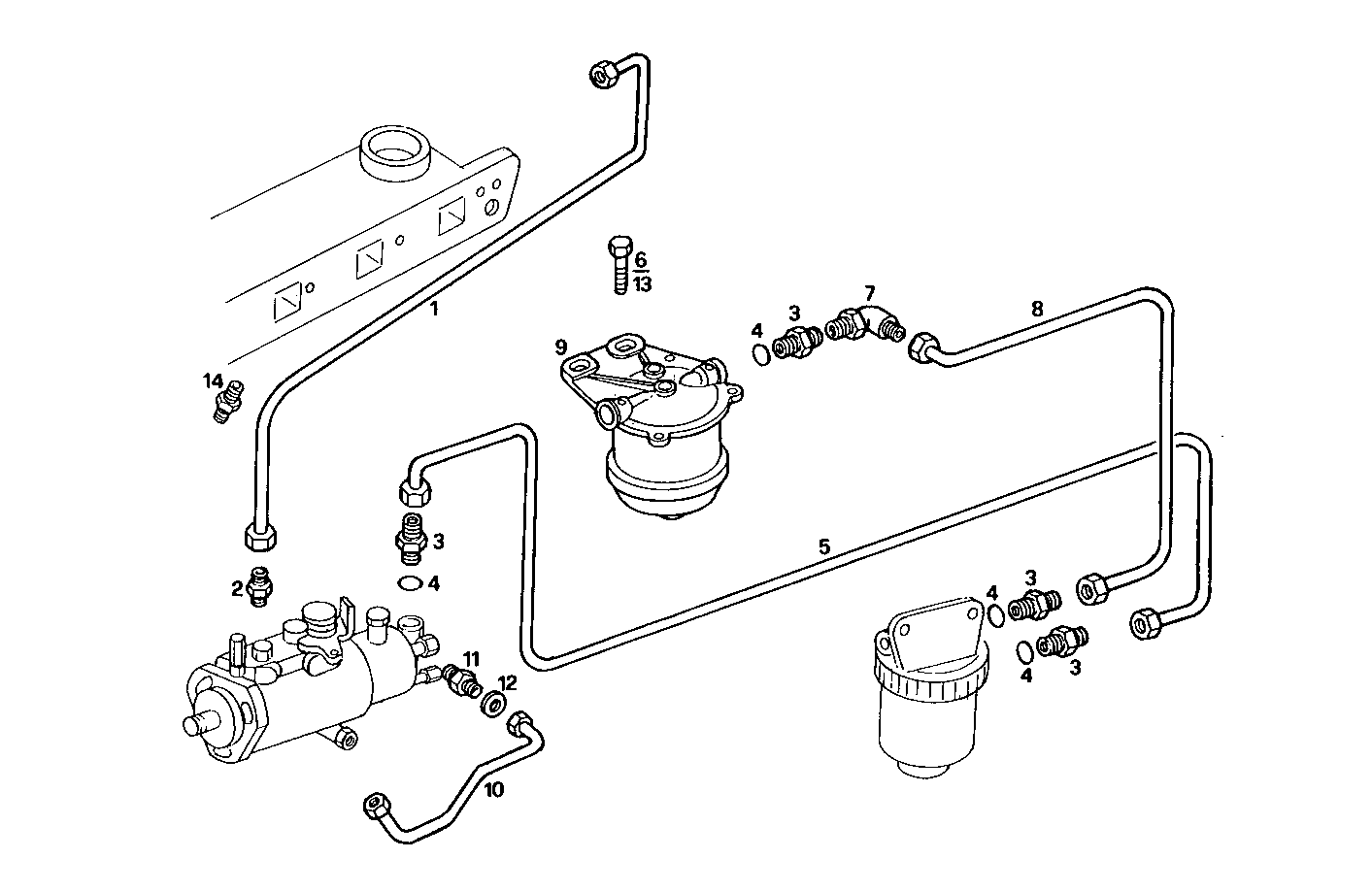

2030.171/01 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 87801626 | FUEL LINE |
| 2 | 87800970 | PIPE SOCKET |
| 3 | 83947824 | PIPE SOCKET |
| 4 | 83904845 | O-RING |
| 5 | 87801468 | FUEL LINE |
| 6 | 83958605 | SCREW |
| 7 | 83951858 | PIPE SOCKET |
| 8 | 87801467 | FUEL LINE |
| 9 | 81871476 | FUEL FILTER |
| 10 | 87800909 | FUEL LINE |
| 11 | 87801322 | PIPE SOCKET |
| 12 | 11270060 | SEAL GASKET Ø10X13,5 MM |
| 13 | 81868740 | SCREW |
| 14 | 83958607 | PIPE SOCKET |
