7450SU00.00

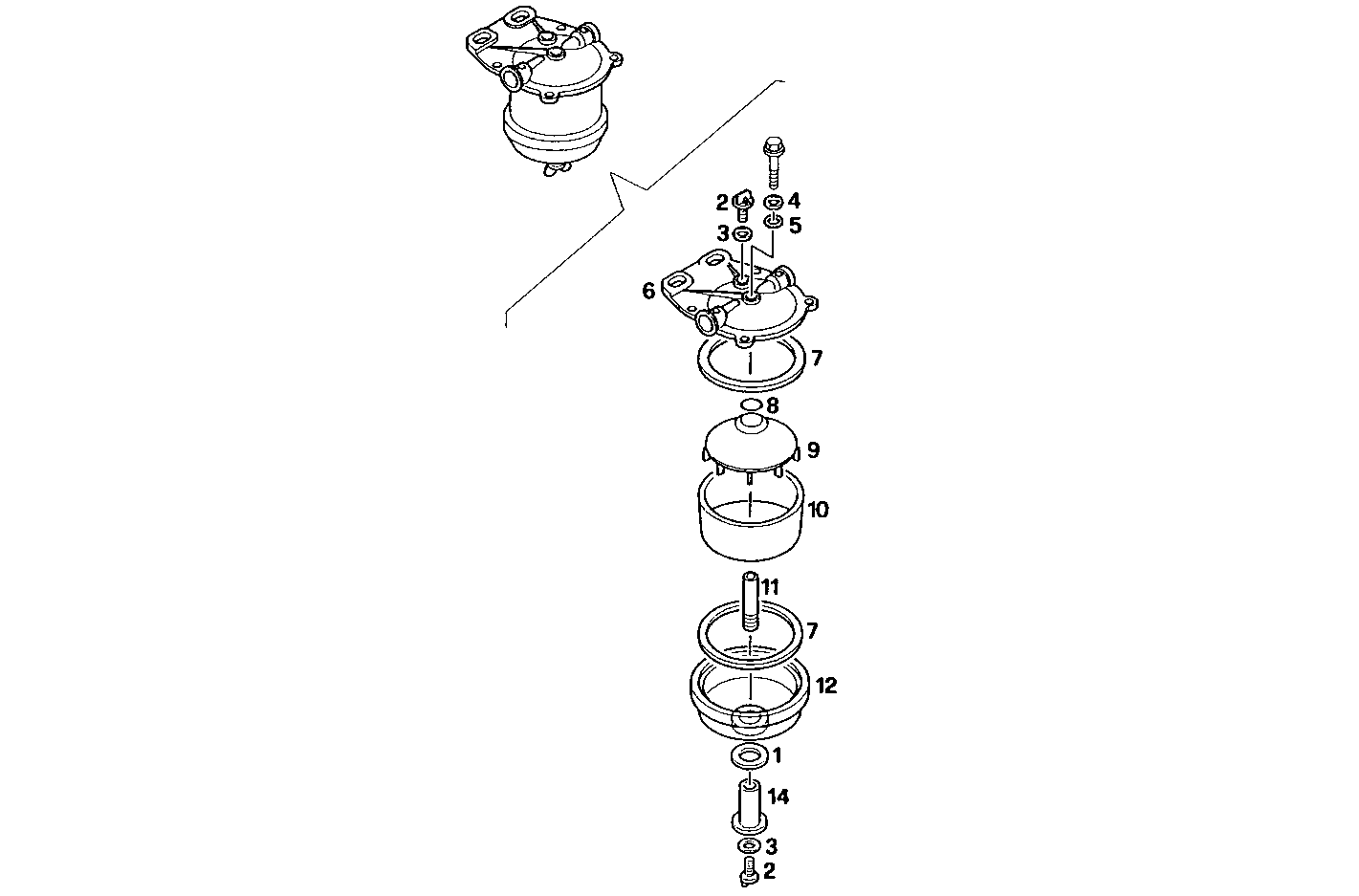

2030.171/02 FUEL LINES
Item | Part number | Description |
---|---|---|
1 | 81871480 | WASHER |
2 | 81825360 | PLUG |
3 | 81825363 | GASKET |
4 | 81833781 | WASHER |
5 | 81811884 | O-RING |
6 | 81871477 | COVER |
7 | 83914036 | GASKET |
8 | 80229317 | O-RING |
9 | 81871478 | FUEL FILTER ELEM. |
10 | 83916922 | FILTER SHELL |
11 | 81871481 | STUD |
12 | 81871479 | COVER |
14 | 81871482 | BUSH |
