7450SU00.00

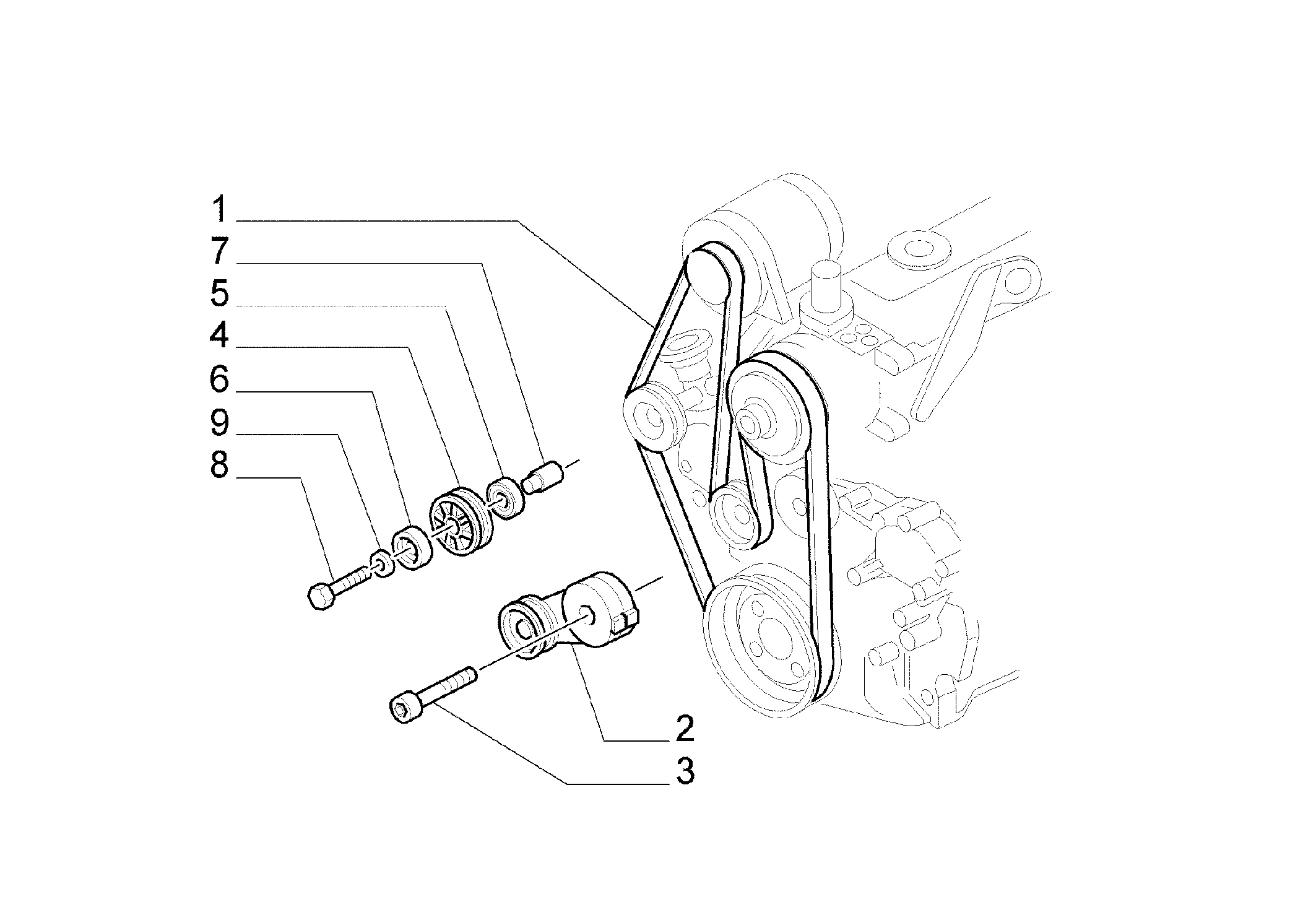

3240.166 PULLEYS AND BELTS
Item | Part number | Description |
---|---|---|
1 | 82850751 | ALTERNATOR BELT |
2 | 87801689 | BELT TENSIONER |
3 | 81868092 | CYLIND-HEAD SCREW M12 |
4 | 83995241 | PULLEY |
5 | 83995238 | DRIVE BEARING |
6 | 83995246 | DRIVE BEARING |
7 | 83995240 | PIN |
8 | 89706693 | HEXAGON BOLT M12x1,75x60mm |
9 | 82879400 | WASHER M12 |
