Catalogue Menu
7450SU00.00

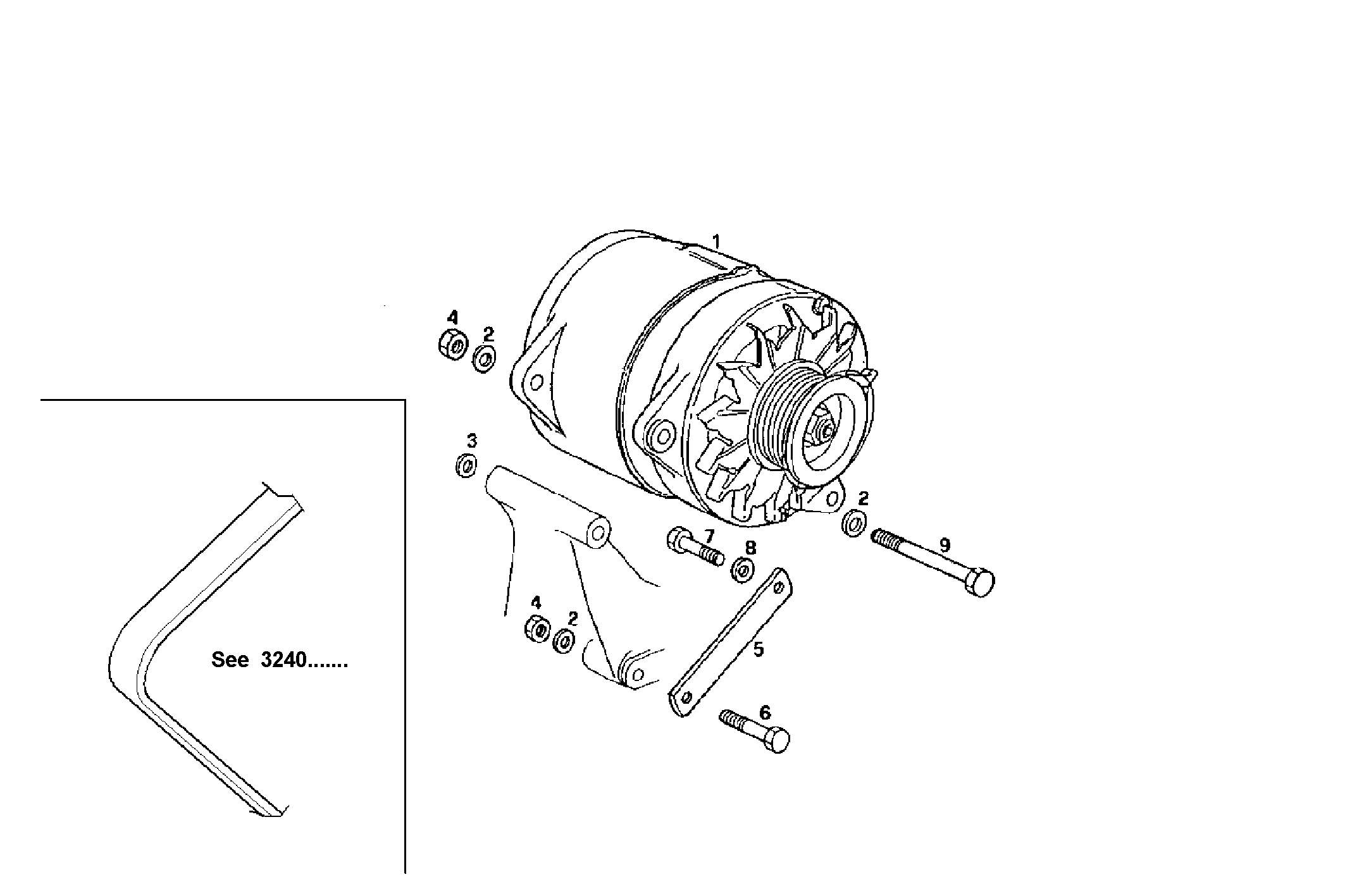

4000.106 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 82001260 | ALTERNATOR ASSY |
| 2 | 83911073 | WASHER |
| 3 | 83974432 | WASHER |
| 4 | 81851141 | NUT |
| 5 | 81873138 | RETAINER |
| 6 | 81868341 | SCREW |
| 7 | 83984655 | SCREW |
| 8 | 85700656 | WASHER |
| 9 | 81865068 | SCREW |
