7450SU00.00

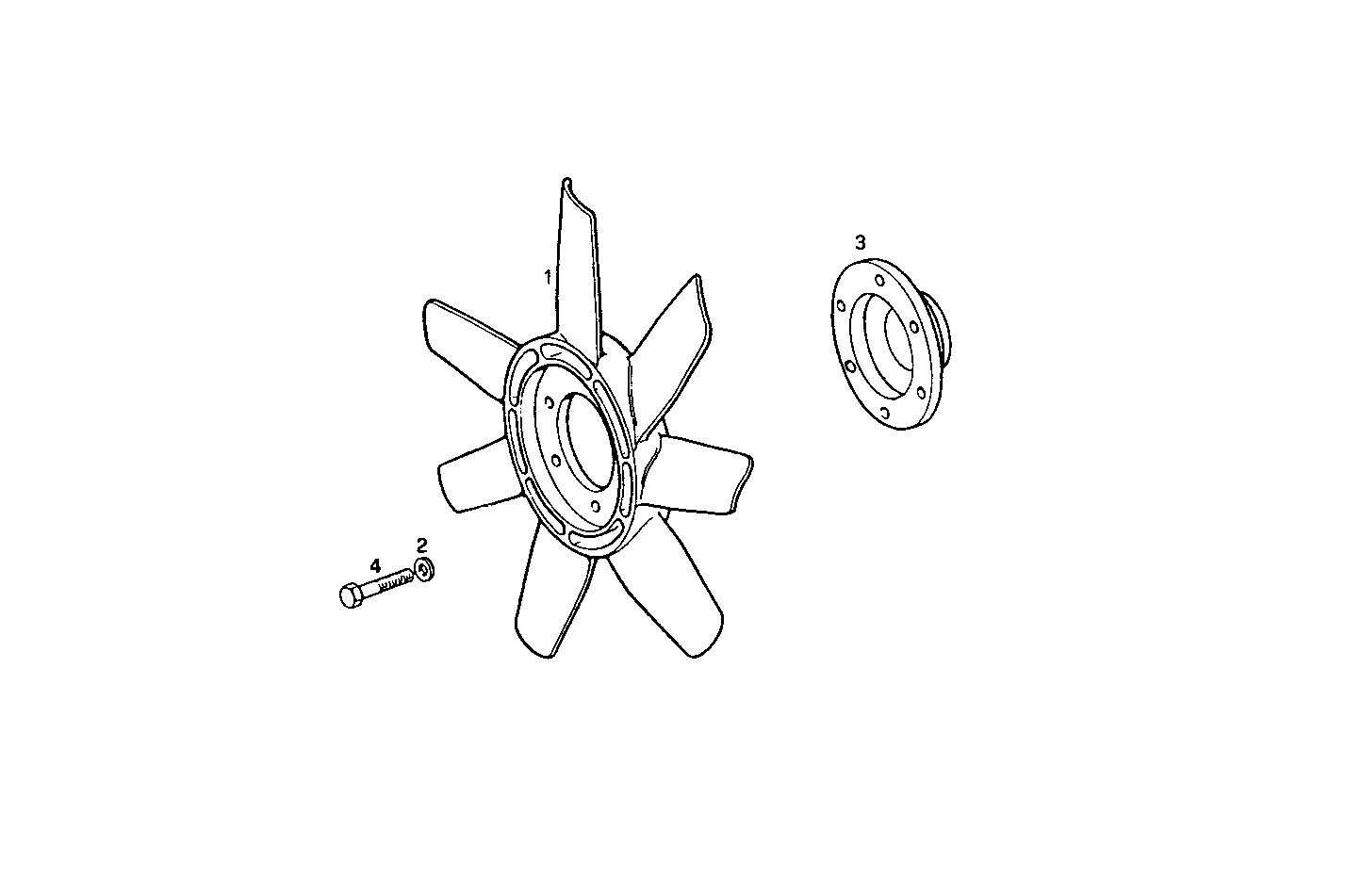

A08000048 PULLER FAN - on water pump
| Item | Part number | Description |
|---|---|---|
| 1 | 8108067 | FAN Ø450 MM |
| 2 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 3 | 8030085 | HUB |
| 4 | 16605424 | SCREW M8X16 MM (8.8) |
