7450SU00.00

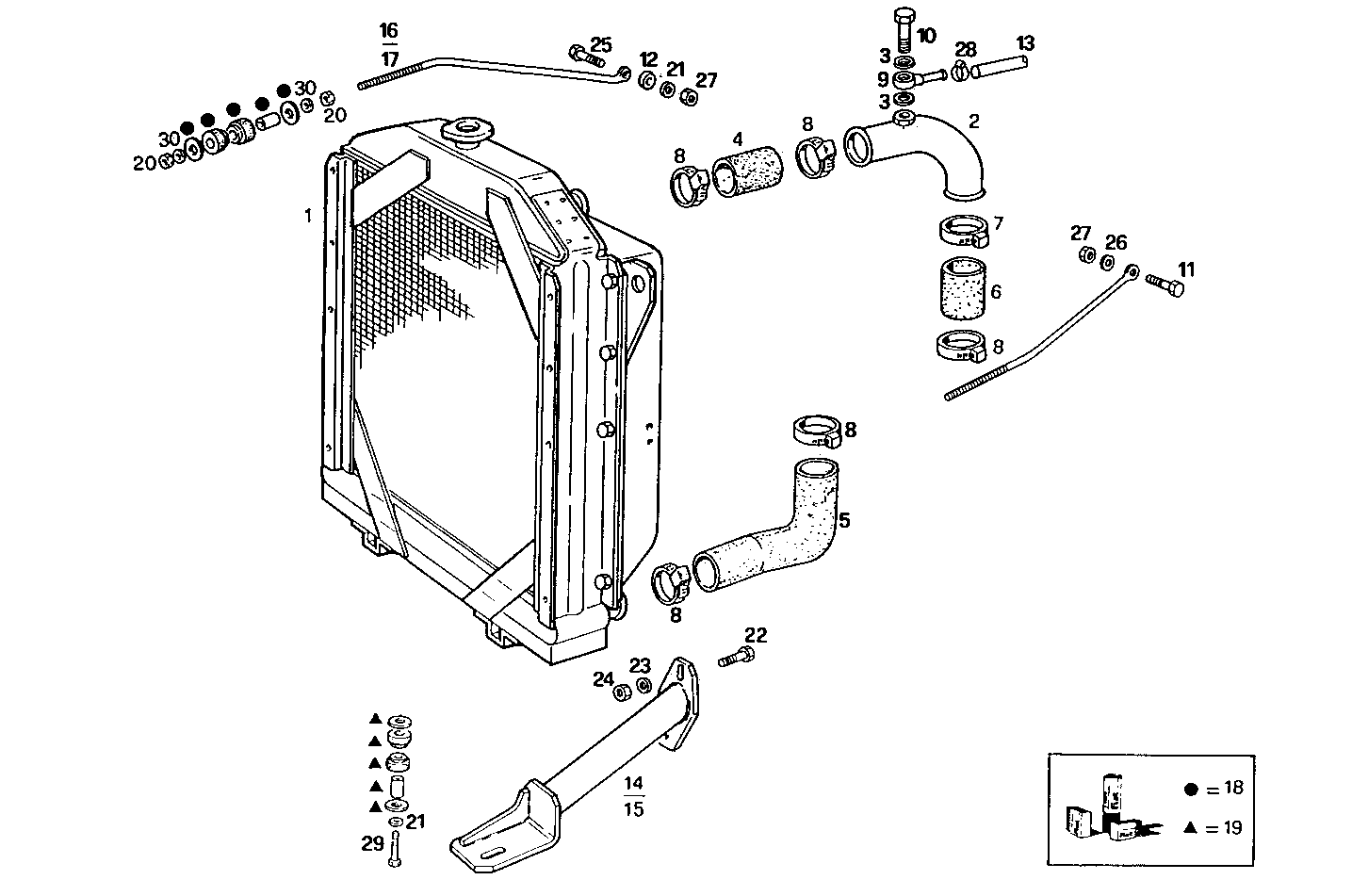

A22010062 RADIATOR FOR SETTING TILL MAX POWER
| Item | Part number | Description |
|---|---|---|
| 1 | 8012354 | WATER RADIATOR |
| 2 | 8027895 | WATER PIPE |
| 4 | 4787630 | RUBBER SLEEVE |
| 5 | 93811591 | WATER HOSE |
| 6 | 98447313 | WATER HOSE Ø45 MM/Ø38 MM |
| 9 | 4551099 | SWIVEL COUPLING |
| 12 | 8019966 | SPACING BAR |
| 13 | 8017131 | WATER HOSE |
| 14 | 8027080 | SUPPORT LEFT |
| 15 | 8027081 | SUPPORT RIGHT |
| 16 | 8027197 | TIE ROD LEFT |
| 17 | 8027198 | TIE ROD RIGHT |
| 18 | 8090413 | KIT-RADIATOR A.S. COMPLETE |
| 19 | 8090341 | KIT-RADIATOR A.S. COMPLETE |
| 25 | 8027021 | SCREW M8X1,25X25 |
