7675E00.00

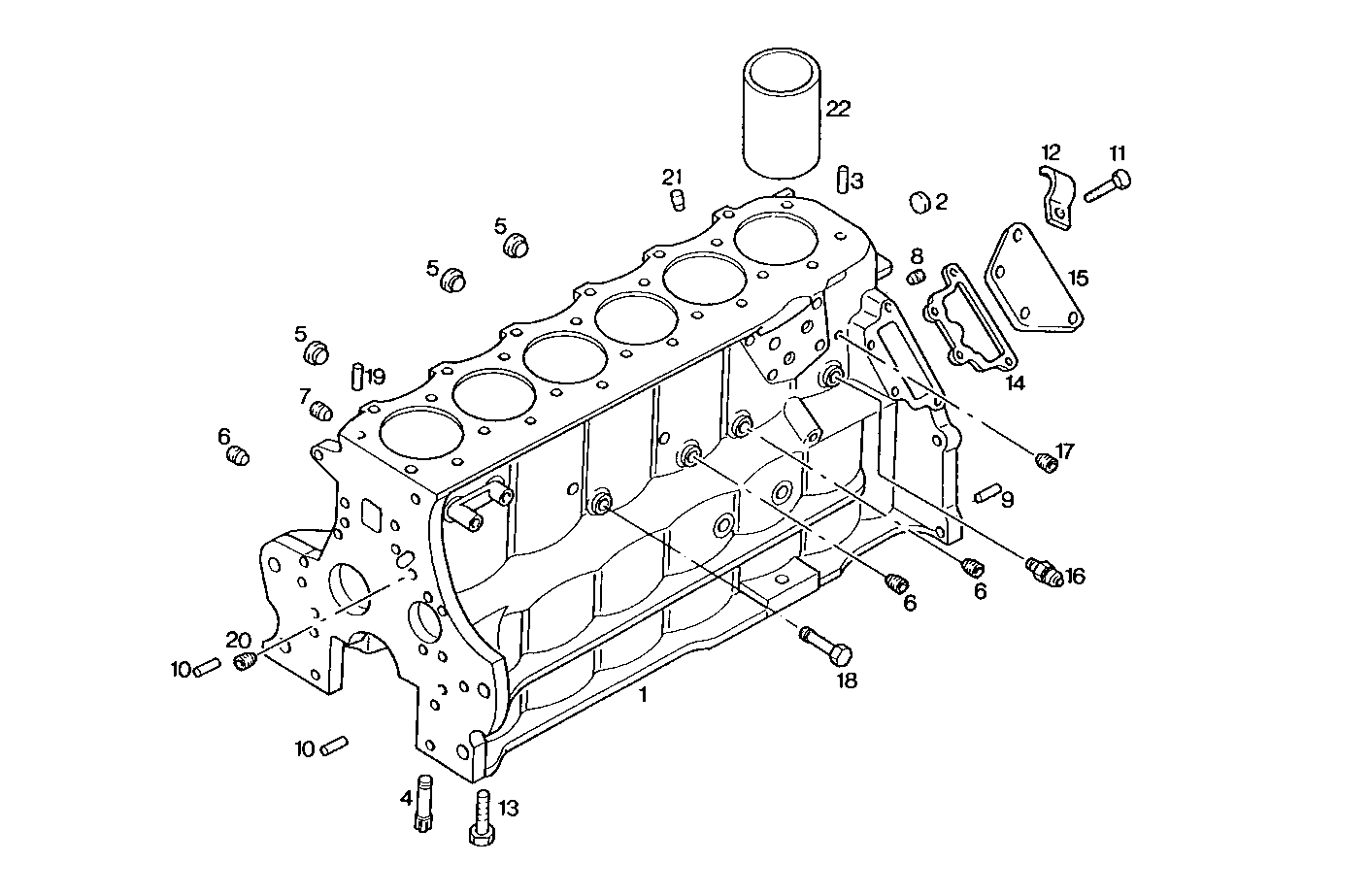

0400.134 CRANKCASE
| Item | Part number | Description |
|---|---|---|
| 1 | 87801406 | CRANKCASE ASSY |
| 2 | 83957025 | PLUG |
| 3 | 83956680 | DOWEL PIN |
| 4 | 81876966 | OIL NOZZLE |
| 5 | 83957023 | PLUG |
| 6 | 81868411 | PLUG |
| 7 | 81868410 | PLUG |
| 8 | 81851790 | PLUG |
| 9 | 81826638 | DOWEL PIN |
| 10 | 81808472 | DOWEL PIN |
| 11 | 83925618 | SCREW |
| 12 | 81822024 | RETAINER |
| 13 | 87801692 | SCREW |
| 14 | 81822547 | GASKET |
| 15 | 87840555 | COVER |
| 16 | 81873524 | TRANSMITTER |
| 17 | 82851791 | PLUG |
| 18 | 87800929 | PLUG |
| 19 | 83960218 | DOWEL PIN |
| 20 | 83956679 | PLUG |
| 21 | 81876802 | PLUG |
| 22 | 83998292 | CYLINDER LINER STANDARD |
