7675G75.05C001

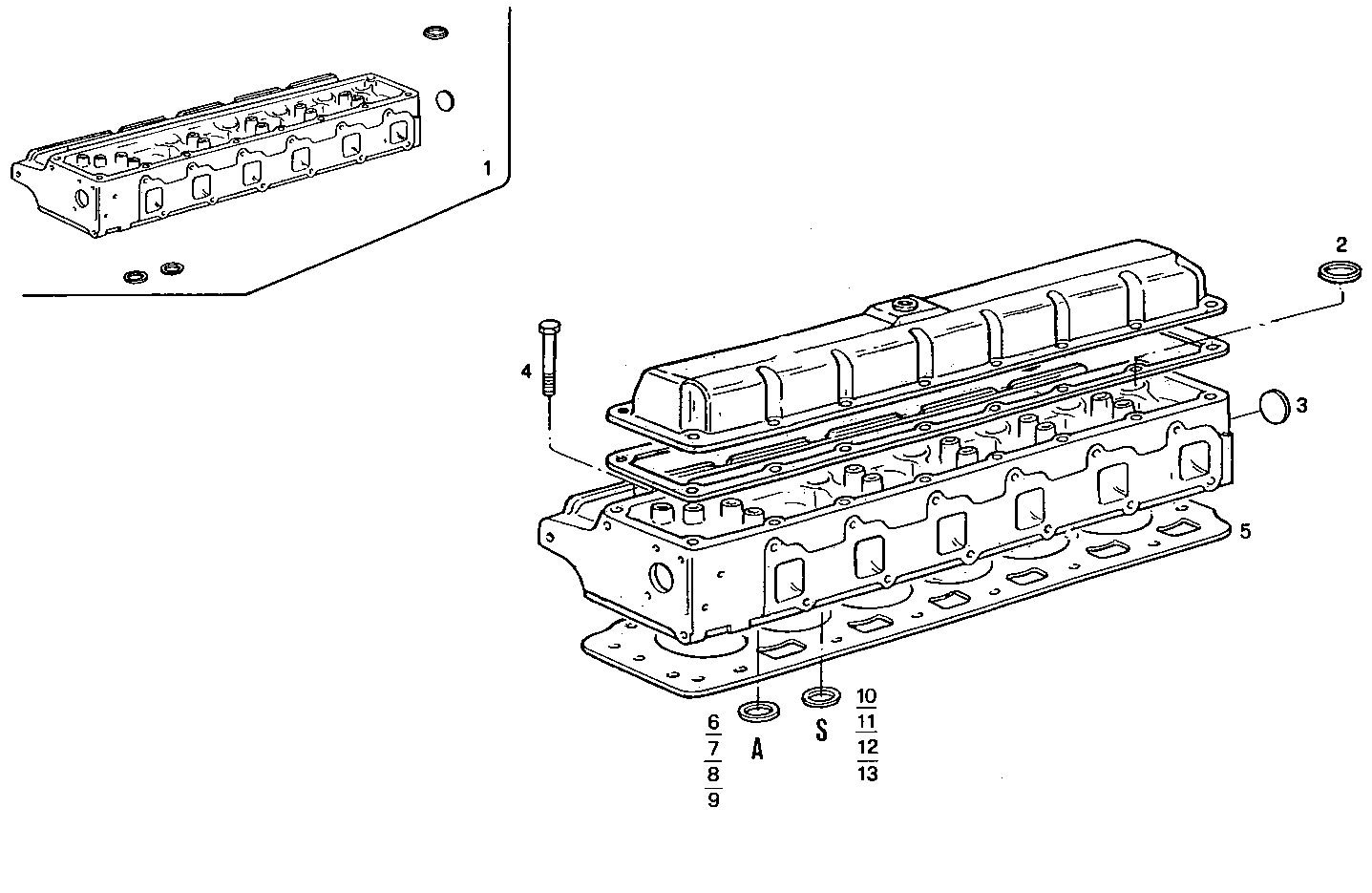

0600.094/01 CYLINDER HEAD
Item | Part number | Description |
---|---|---|
1 | 8093135 | CYLINDER HEAD ASSY |
2 | 83957021 | PLUG |
3 | 83957025 | PLUG |
4 | 83948300 | SCREW |
5 | 87801752 | CYL.HEAD GASKET |
6 | 81865194 | VALVE SEAT STD. EXHAUST |
7 | 81865195 | VALVE SEAT +0.25 EXHAUST |
8 | 81865196 | VALVE SEAT +0.51 EXHAUST |
9 | 81865197 | VALVE SEAT +0.76 EXHAUST |
10 | 81876788 | VALVE SEAT +0.76 EXHAUST |
11 | 81876756 | VALVE SEAT STD. |
12 | 81876763 | VALVE SEAT +0.25 |
13 | 81876768 | VALVE SEAT +0.51 |
