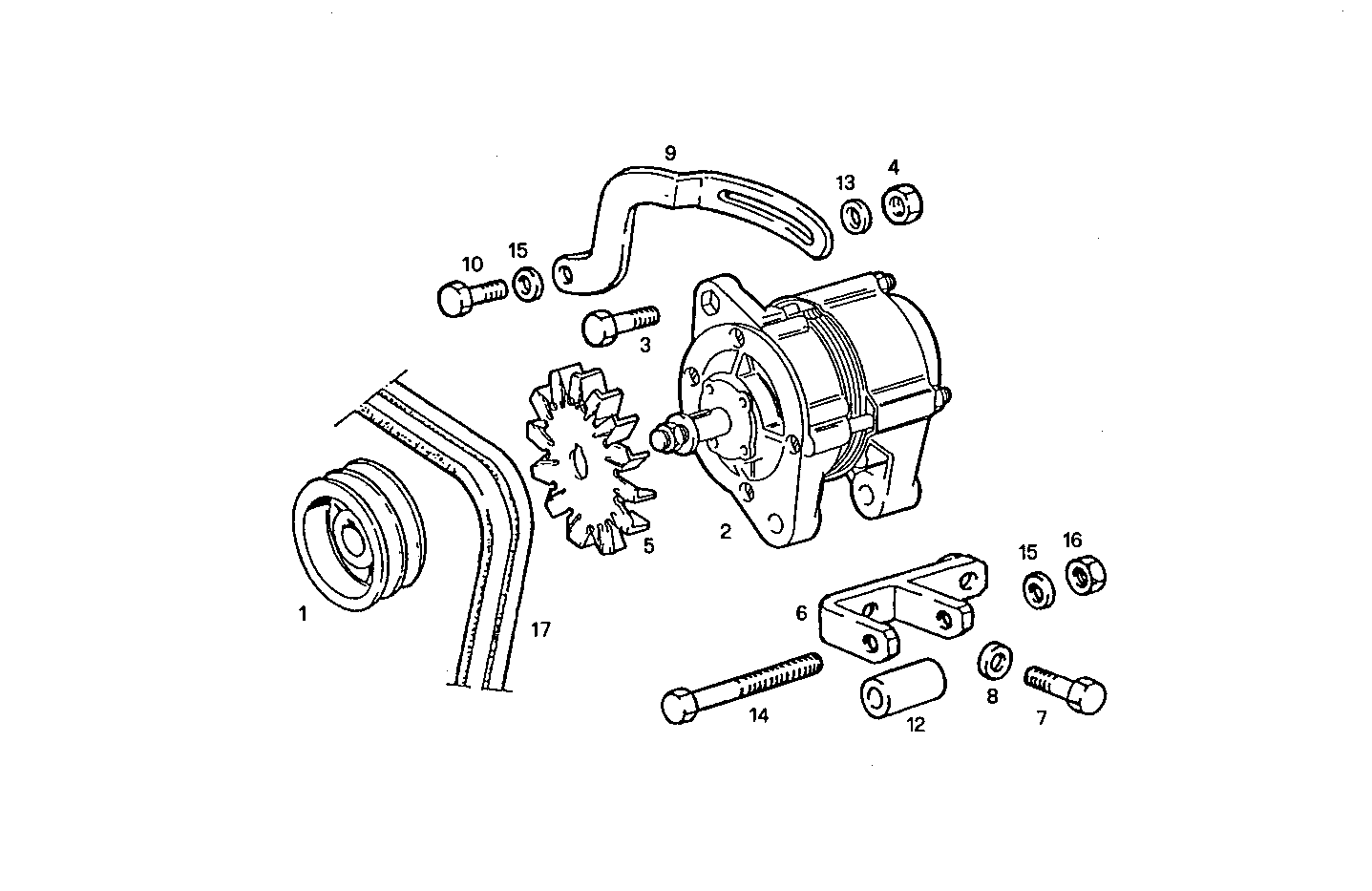

| Item |
Part number |
Description |
|
1 |
8014706 |
PULLEY |
|
2 |
4808519 |
ALTERNATOR MARELLI - 24V [from 26031986] |
|
3 |
16607924 |
HEXAGON BOLT M10X1,5X40 MM |
|
4 |
17152921 |
HEXAGON NUT M10X1,5 |
|
5 |
4717026 |
GENERATOR FAN MARELLI |
|
6 |
8015283 |
SUPPORT |
|
7 |
8014502 |
SCREW |
|
8 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
9 |
8016579 |
BELT TENSIONER |
|
10 |
8014381 |
SCREW |
|
12 |
8015304 |
SPACING BAR |
|
13 |
17090474 |
SPRING WASHER Ø10X27 MM SP=2,5 |
|
14 |
16611324 |
HEXAGON BOLT M12X130 MM |
|
15 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
16 |
17038421 |
HEXAGON NUT M12 (8) |
|
17 |
4631961 |
SET OF V-BELTS KIT |
