7675G86.05A502

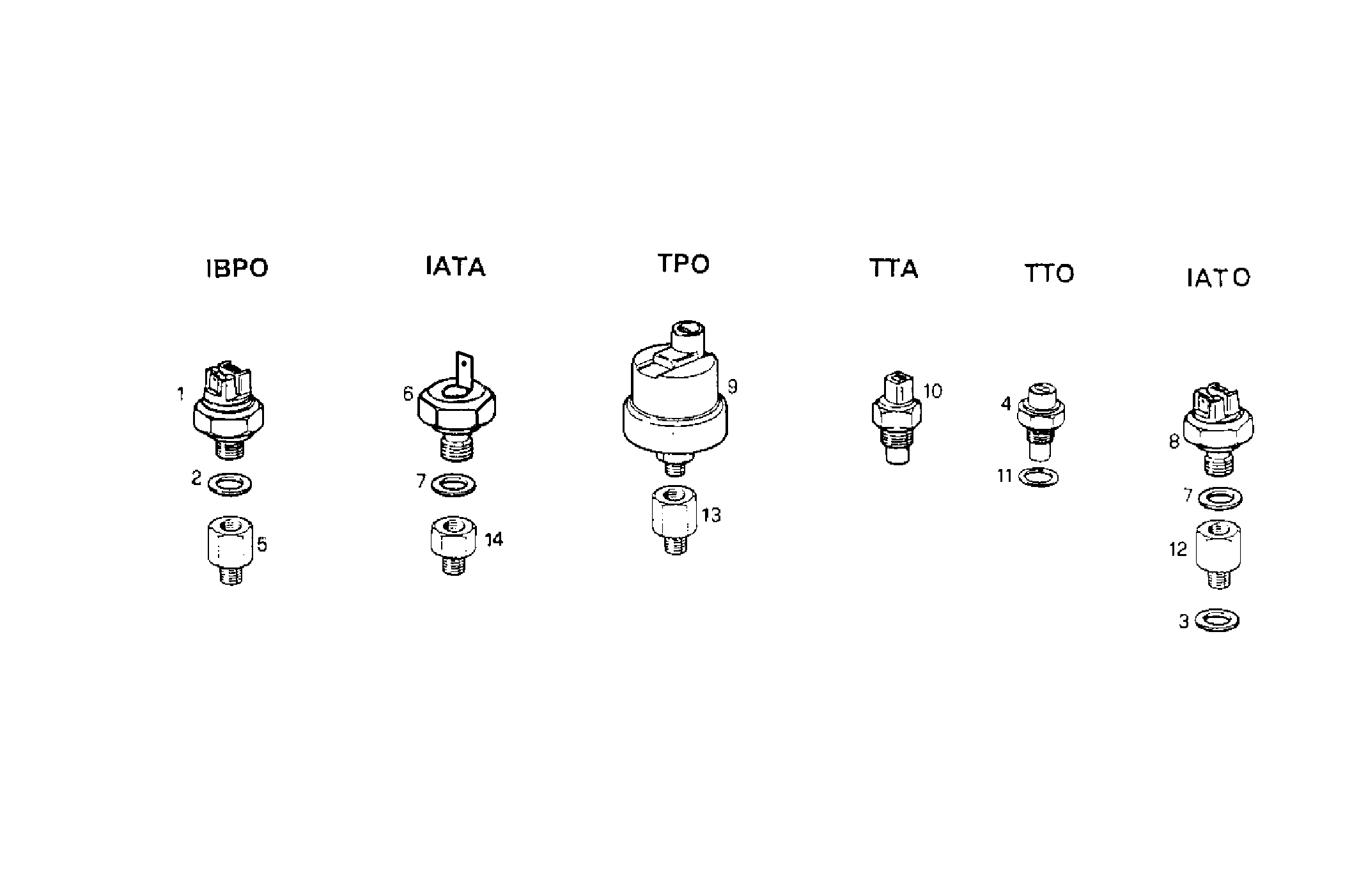

A38550075 SENDER UNITS FOR INSTRUMENTS - two poles system - 12/24V - VEGLIA
| Item | Part number | Description |
|---|---|---|
| 1 | 8114030 | TRANSMITTER IBPO |
| 2 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 3 | 10303360 | SEAL GASKET Ø27,3 MM [up to 15-12-03] |
| 4 | 4933019 | TRANSMITTER TTA - TTO |
| 5 | 8014221 | PIPE SOCKET |
| 6 | 8019581 | TRANSMITTER IATA |
| 7 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 8 | 8024375 | TRANSMITTER IATO |
| 9 | 8100563 | TRANSMITTER TPO |
| 10 | 4448131 | TEMP. TRANSMITTER TTA |
| 11 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 12 | 8025697 | PIPE SOCKET |
| 13 | 8014230 | PIPE SOCKET |
| 14 | 8014220 | PIPE SOCKET |
