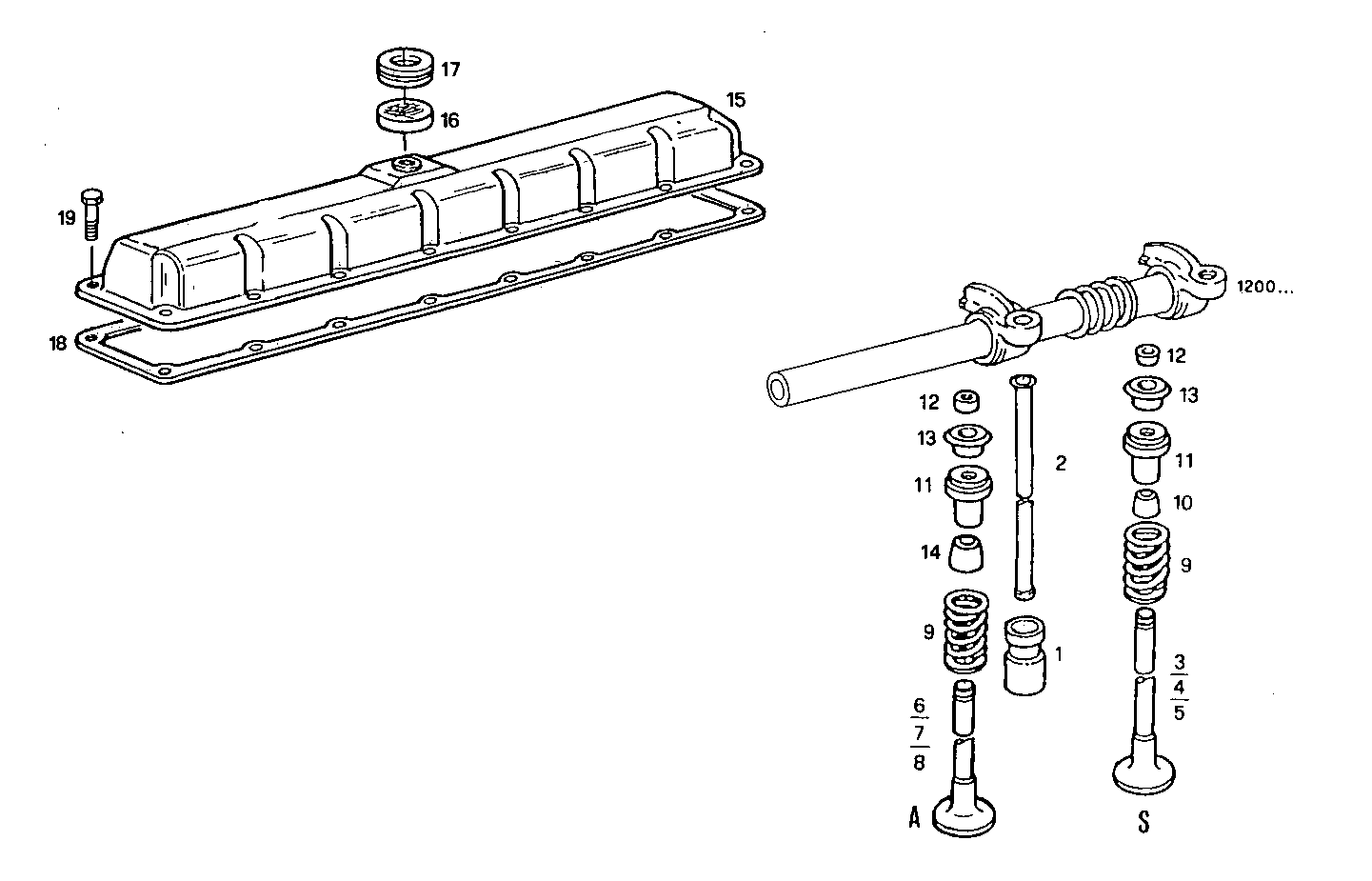

0600.094/02 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 83946434 VALVE TAPPET
2 81877890 PUSHROD
3 8092915 EXHAUST VALVE
6 81865092 INLET VALVE
7 81865093 INLET VALVE 0,015 MM
8 81865094 INLET VALVE 0,76 MM
9 83999742 ENGINE VALV.SPRING
10 8093000 TAPPET
11 83952336 TAPPET EXHAUST
12 81876796 VALVE CONE
13 83952337 CAP
14 87840154 RING
15 83991481 CYL. HEAD COVER
16 81878954 STRAINER
17 83958239 WASHER
18 83976376 HEAD COVER GASKET
19 83949109 SCREW
