7675i10.05

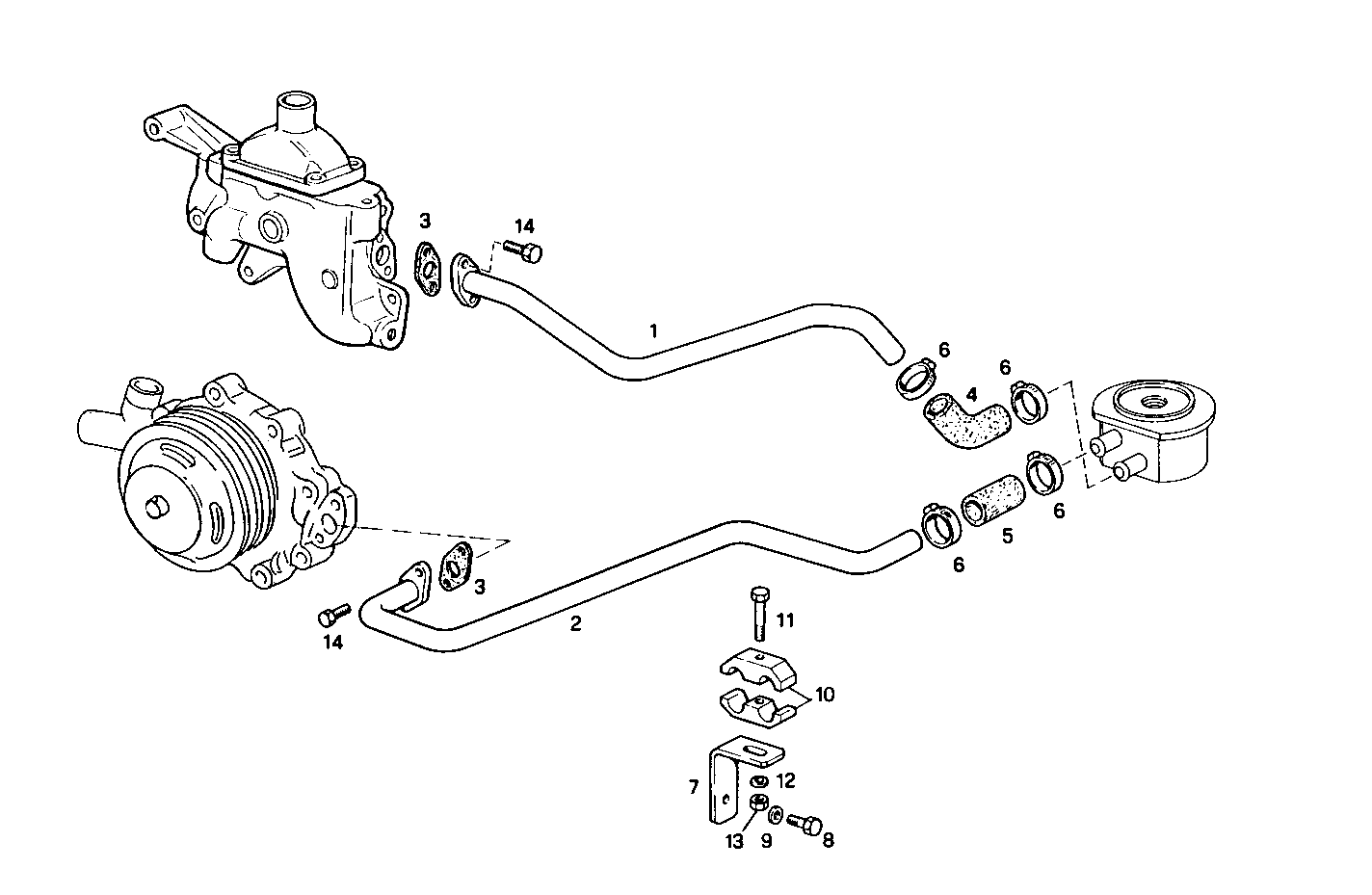

3210.066 WATER LINES
Item | Part number | Description |
---|---|---|
1 | 8014297 | WATER PIPE |
2 | 8014298 | WATER PIPE |
3 | 98418772 | FLAT ENGINE GASKET |
4 | 98425606 | WATER HOSE |
5 | 17737087 | WATER HOSE |
6 | 17764592 | CLIP Ø20/32 MM |
7 | 8015342 | RETAINER |
8 | 8014381 | SCREW |
9 | 17091074 | WASHER Ø12X24X2,8 MM |
10 | 8010505 | CLAMP Ø16 MM |
11 | 16605924 | SCREW M8X40 MM |
12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
13 | 17037931 | HEXAGON NUT M8X1,25 |
14 | 81821198 | SCREW |
