7675i10.05

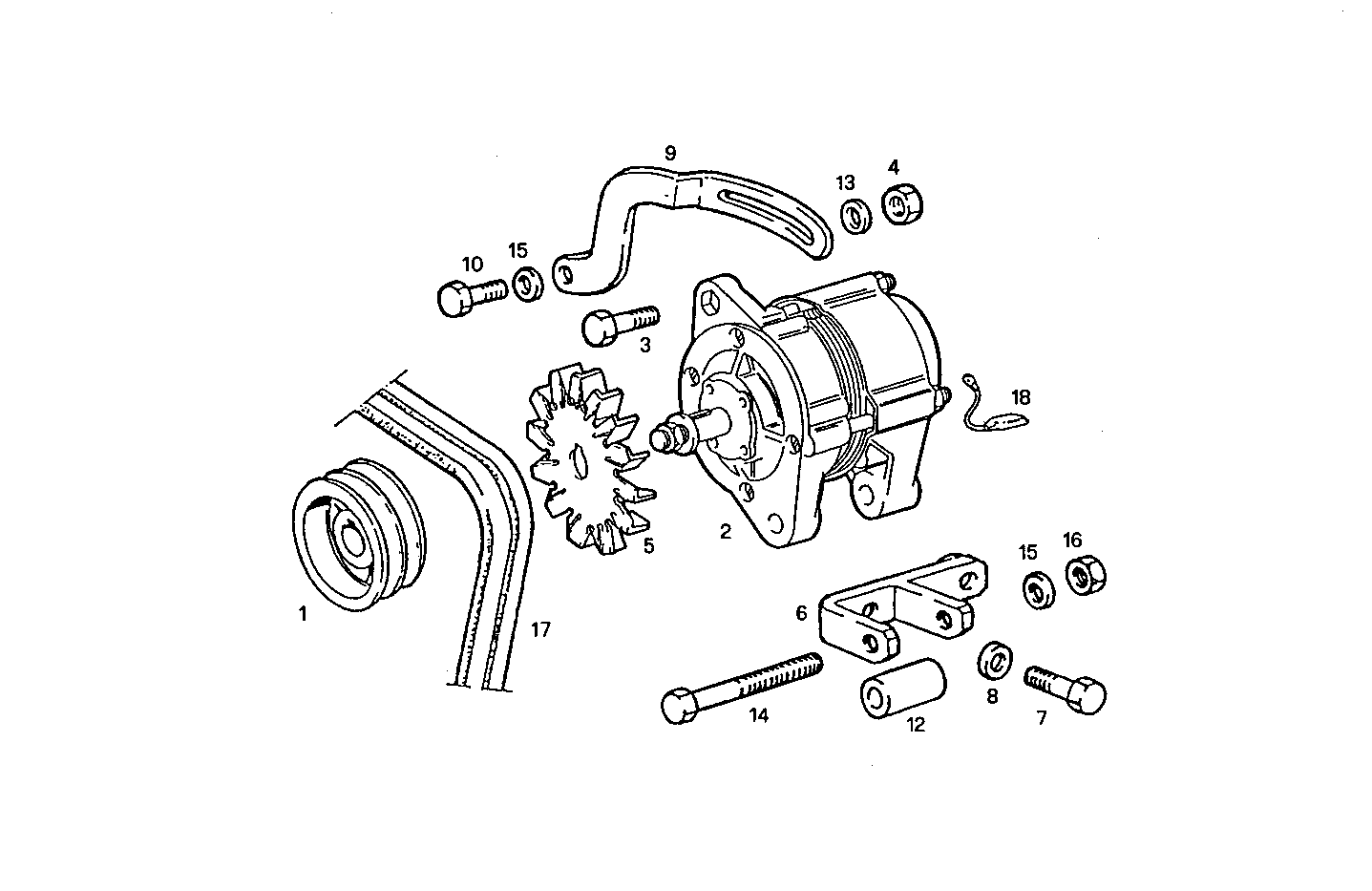

A14030002 SELF-REGULATED ALTERNATOR - 12V 85A (W)

Iveco/FPT SELF-REGULATED ALTERNATOR

Item Part number Description
1 8014706 PULLEY
2 5991719 ALTERNATOR ASSY 14V 85A BOSCH
3 16607924 HEXAGON BOLT M10X1,5X40 MM
4 17152921 HEXAGON NUT M10X1,5
5 4717026 GENERATOR FAN MARELLI
6 8015283 SUPPORT
7 8014502 SCREW
8 17090174 SPRING WASHER Ø10X20 MM
9 8016579 BELT TENSIONER
10 8014381 SCREW
12 8015304 SPACING BAR
13 17090474 SPRING WASHER Ø10X27 MM SP=2,5
14 16611324 HEXAGON BOLT M12X130 MM
15 17091074 WASHER Ø12X24X2,8 MM
16 17038521 HEXAGON NUT M12X1,5
17 4795708 V-BELT KIT
18 8105654 WIRE/CABLE
