7675i10.05

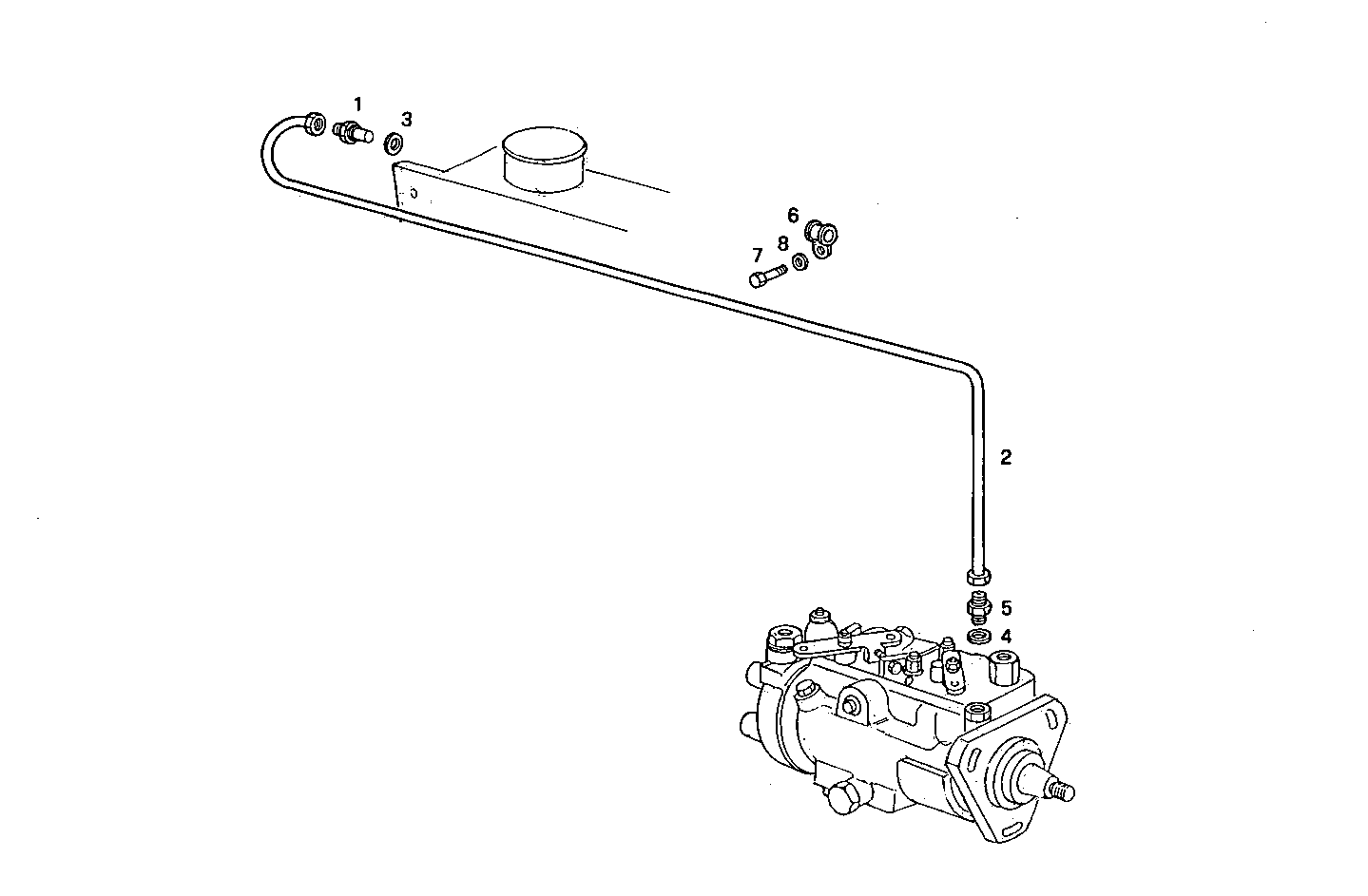

A20010026 THERMOSTARTER - 24V (till -15°C)
Item | Part number | Description |
---|---|---|
1 | 8017679 | HEATER PLUG |
2 | 8016059 | FUEL LINE |
3 | 98429281 | SEAL GASKET Ø24X31 MM SP=1,5 MM |
4 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
5 | 8016058 | PIPE SOCKET |
6 | 8006650 | CLIP |
7 | 8014453 | SCREW |
8 | 17090174 | SPRING WASHER Ø10X20 MM |
