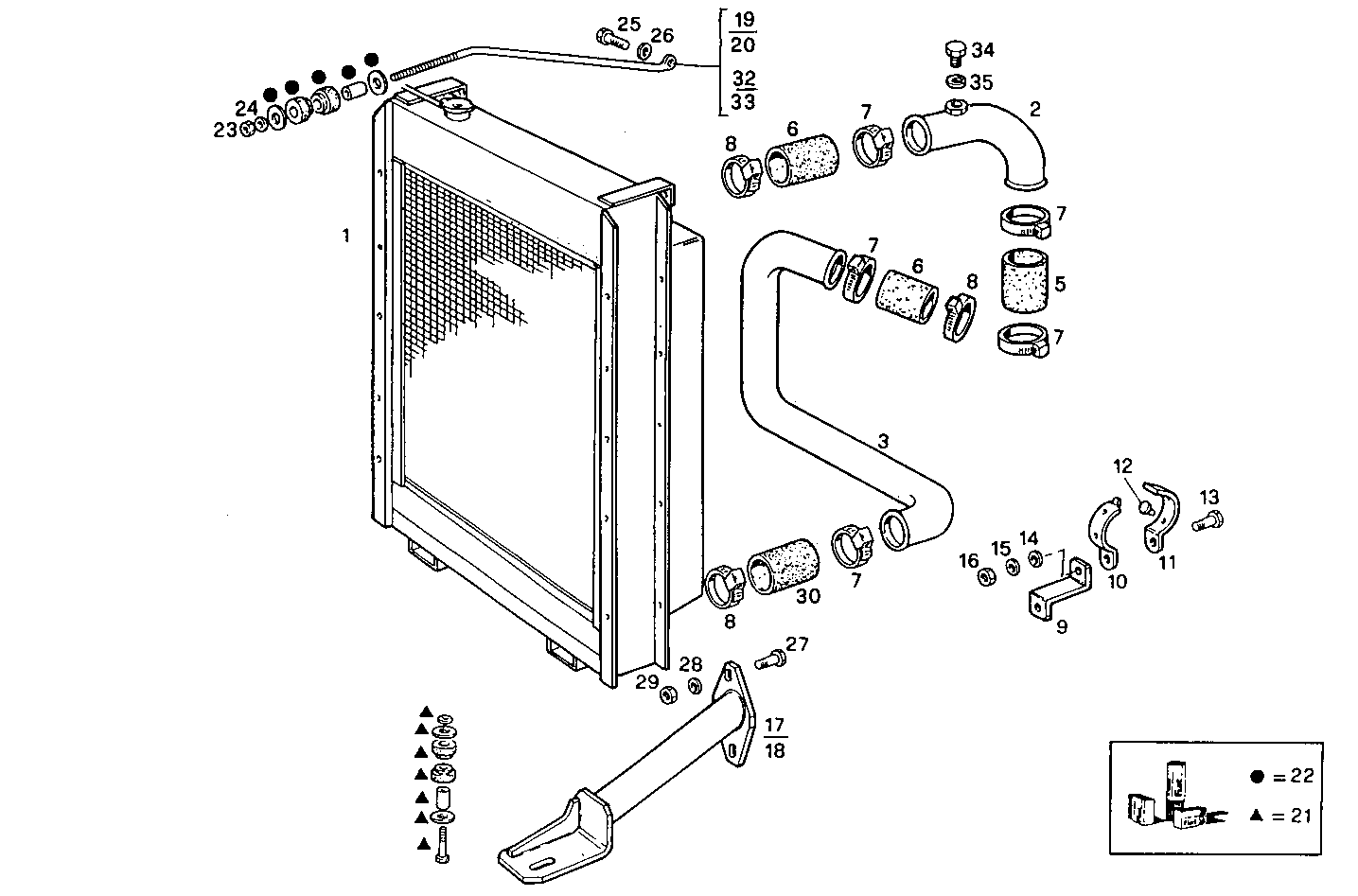

Item |
Part number |
Description |
1 |
8015686 |
WATER RADIATOR ASSY |
2 |
8105330 |
WATER PIPE |
3 |
8014455 |
WATER PIPE |
4 |
4788148 |
WATER HOSE |
5 |
4787630 |
RUBBER SLEEVE |
6 |
98432897 |
WATER HOSE |
7 |
17764891 |
CLIP Ø40/60 MM |
8 |
98490783 |
CLIP Ø55-65 MM |
9 |
8015261 |
RETAINER |
10 |
8113298 |
CLAMP |
11 |
8113299 |
CLAMP |
12 |
1366290 |
RUBBER LUG |
13 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
14 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
15 |
17094914 |
WASHER 8x16 |
16 |
17037931 |
HEXAGON NUT M8X1,25 |
17 |
8014425 |
SUPPORT LEFT |
18 |
8014424 |
SUPPORT RIGHT |
19 |
8014451 |
TIE ROD LEFT [up to 03-93] |
20 |
8014452 |
TIE ROD RIGHT [up to 03-93] |
21 |
8090341 |
KIT-RADIATOR A.S. COMPLETE |
22 |
8090413 |
KIT-RADIATOR A.S. COMPLETE |
23 |
17038421 |
HEXAGON NUT M12 (8) |
24 |
17091074 |
WASHER Ø12X24X2,8 MM |
25 |
8014453 |
SCREW |
26 |
17090174 |
SPRING WASHER Ø10X20 MM |
27 |
16614824 |
SCREW M16X50 |
28 |
17092174 |
SPRING WASHER Ø16X32X3,4 |
29 |
17038921 |
NUT M16X2 |
30 |
4951318 |
RUBBER SLEEVE Ø45/50 MM |
32 |
8015736 |
TIE ROD LEFT [from 03-93] |
33 |
8015737 |
TIE ROD RIGHT [from 03-93] |
34 |
10300911 |
PLUG M8 |
35 |
4858605 |
WASHER Ø8X12 MM |
