7675SE00.00

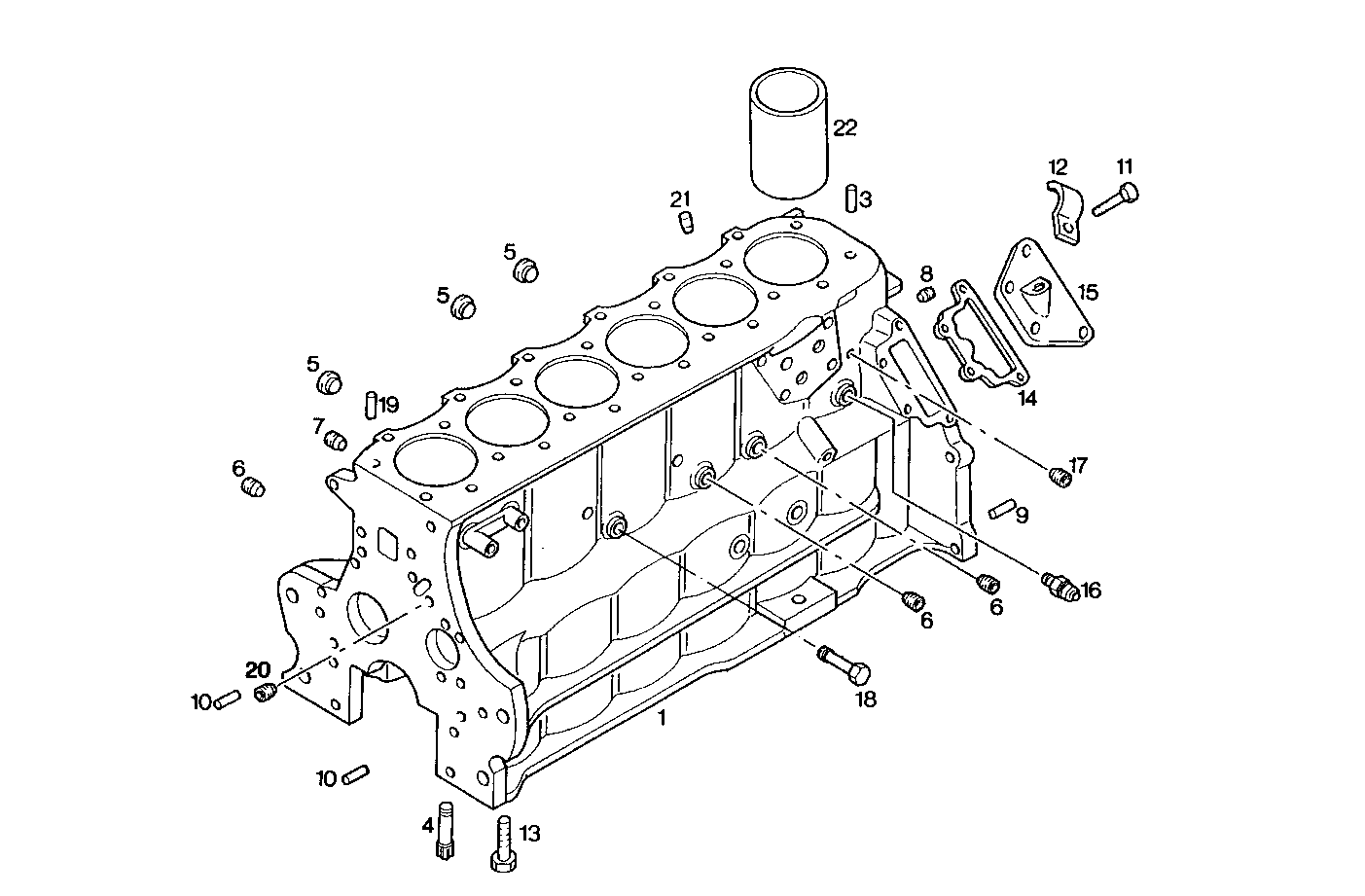

0400.135 CRANKCASE
Item | Part number | Description |
---|---|---|
1 | 87801405 | CRANKCASE ASSY |
3 | 83956680 | DOWEL PIN |
4 | 81879050 | OIL NOZZLE |
5 | 83957023 | PLUG |
6 | 81868411 | PLUG |
7 | 81868410 | PLUG |
8 | 81851790 | PLUG |
9 | 81826638 | DOWEL PIN |
10 | 81808472 | DOWEL PIN |
11 | 83925618 | SCREW |
12 | 81822024 | RETAINER |
13 | 87801692 | SCREW |
14 | 81822547 | GASKET |
15 | 81876726 | COVER |
16 | 81873524 | TRANSMITTER |
17 | 82851791 | PLUG |
18 | 87800929 | PLUG |
19 | 83960218 | DOWEL PIN |
20 | 83956679 | PLUG |
21 | 81876802 | PLUG |
22 | 83998292 | CYLINDER LINER STANDARD |
