7675SE00.00

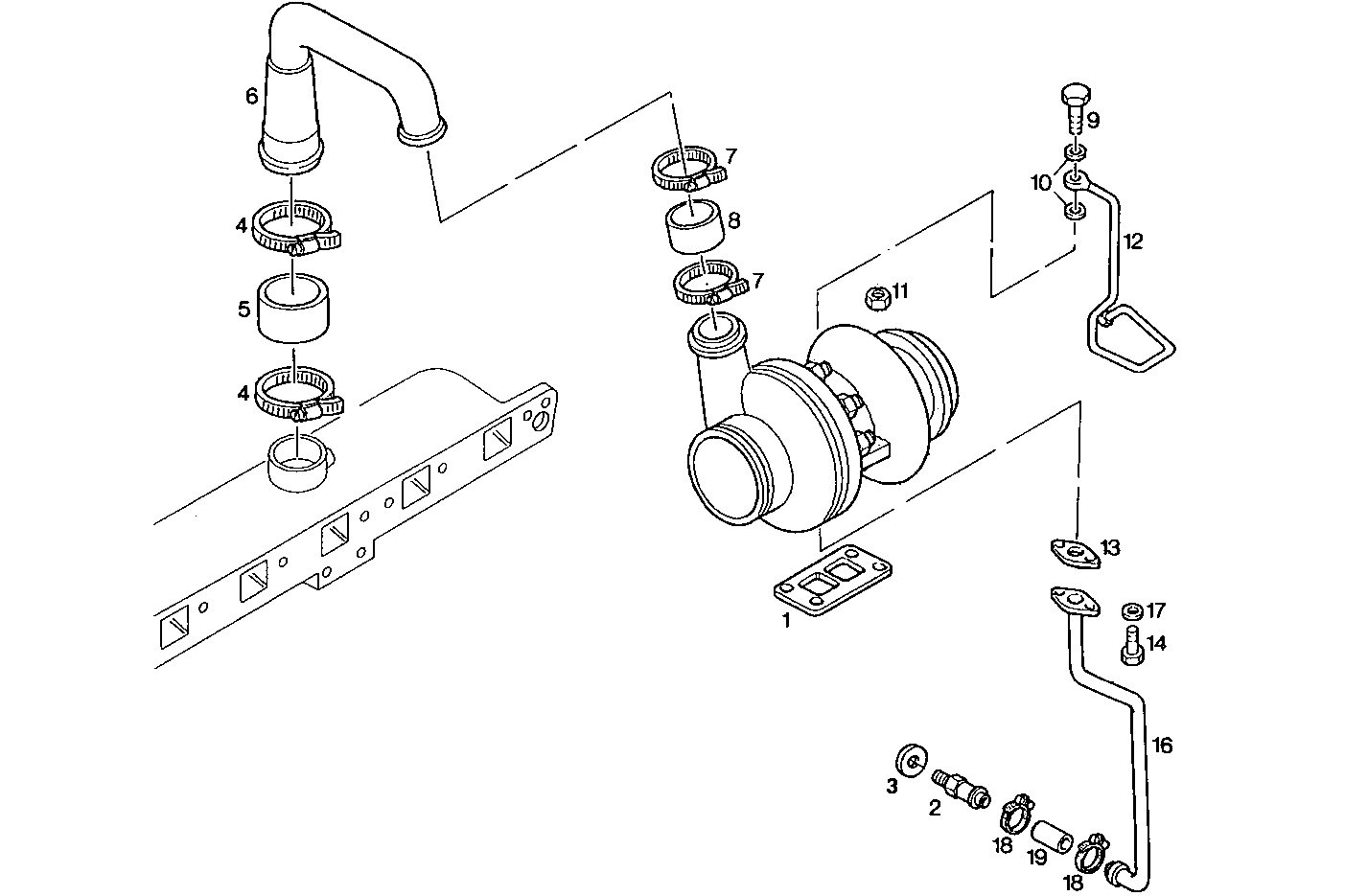

2420.163 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 83911642 | GASKET |
| 2 | 81876817 | PIPE SOCKET |
| 3 | 83953341 | GASKET |
| 4 | 81871498 | CLIP |
| 5 | 81862808 | RUBBER SLEEVE |
| 6 | 87840735 | INTAKE ELBOW |
| 7 | 81871496 | CLIP |
| 8 | 81876827 | RUBBER SLEEVE |
| 9 | 87801023 | SCREW |
| 10 | 87801444 | GASKET |
| 11 | 83993005 | NUT |
| 12 | 87801698 | OIL LINE |
| 14 | 82880843 | SCREW |
| 16 | 87800431 | OIL LINE |
| 17 | 82879357 | WASHER |
| 18 | 82012722 | CLIP |
| 19 | 83997322 | CONNECTOR SLEEVE |
