7675SE00.00

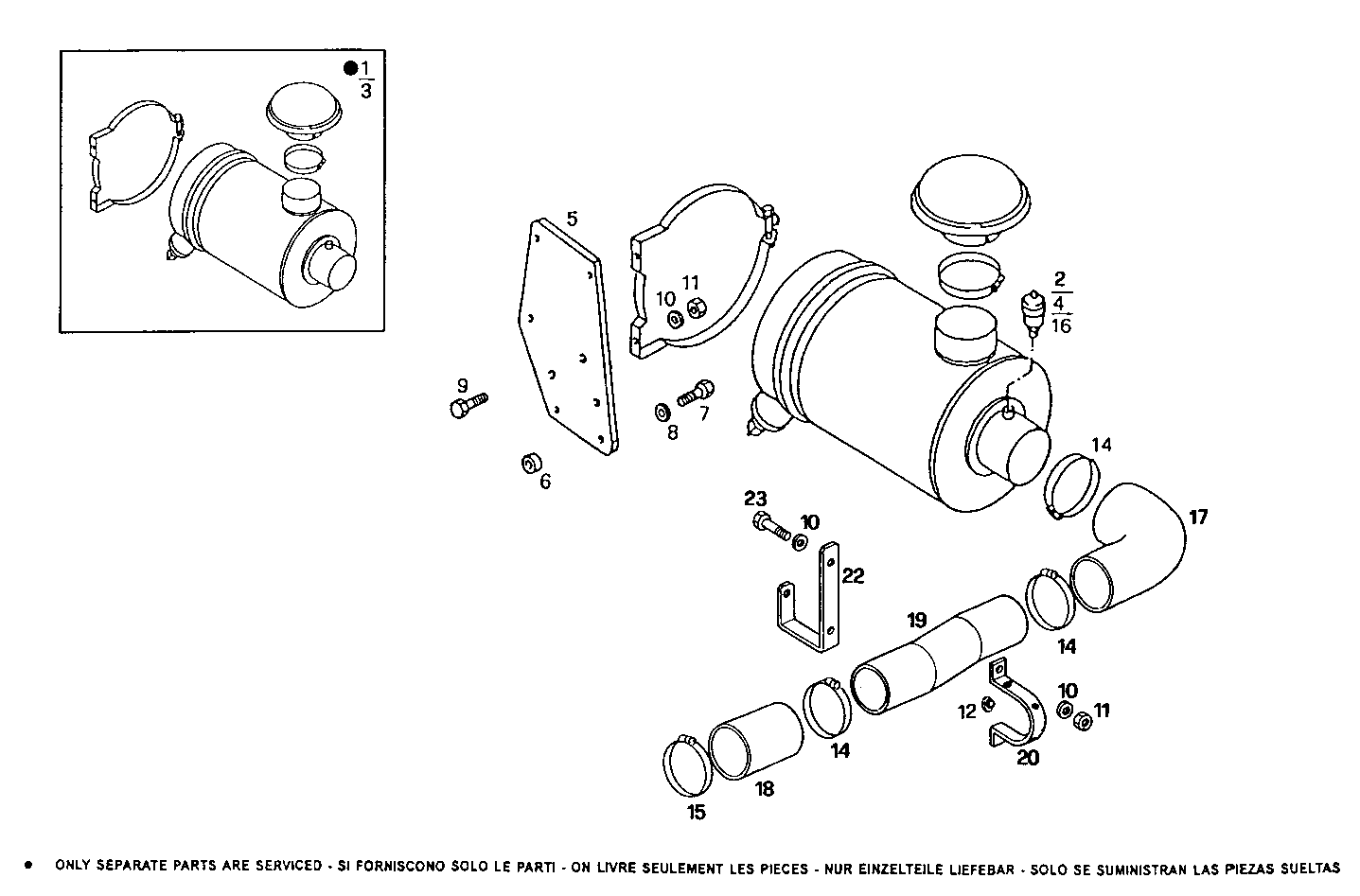

A21210065 DRY AIR CLEANER - with mechanical clogging gauge
| Item | Part number | Description |
|---|---|---|
| 1 | 8016739 | AIR CLEANER ASSY |
| 2 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
| 3 | 8030338 | AIR CLEANER ASSY |
| 4 | 4936137 | CHOCKED FILTER INDIC. MECHANICAL |
| 5 | 8014314 | PLATE |
| 6 | 8014162 | SPACING BAR |
| 7 | 8114495 | SCREW |
| 12 | 1366290 | RUBBER LUG |
| 14 | 17765393 | CLIP Ø90/110 MM |
| 16 | 8022540 | CHOCKED FILTER INDIC. MECHANICAL |
| 17 | 8026798 | CONNECTOR SLEEVE |
| 18 | 8106719 | CONNECTOR SLEEVE |
| 19 | 8026797 | RUBBER SLEEVE |
| 20 | 8108759 | CLIP |
| 22 | 8027872 | RETAINER |
