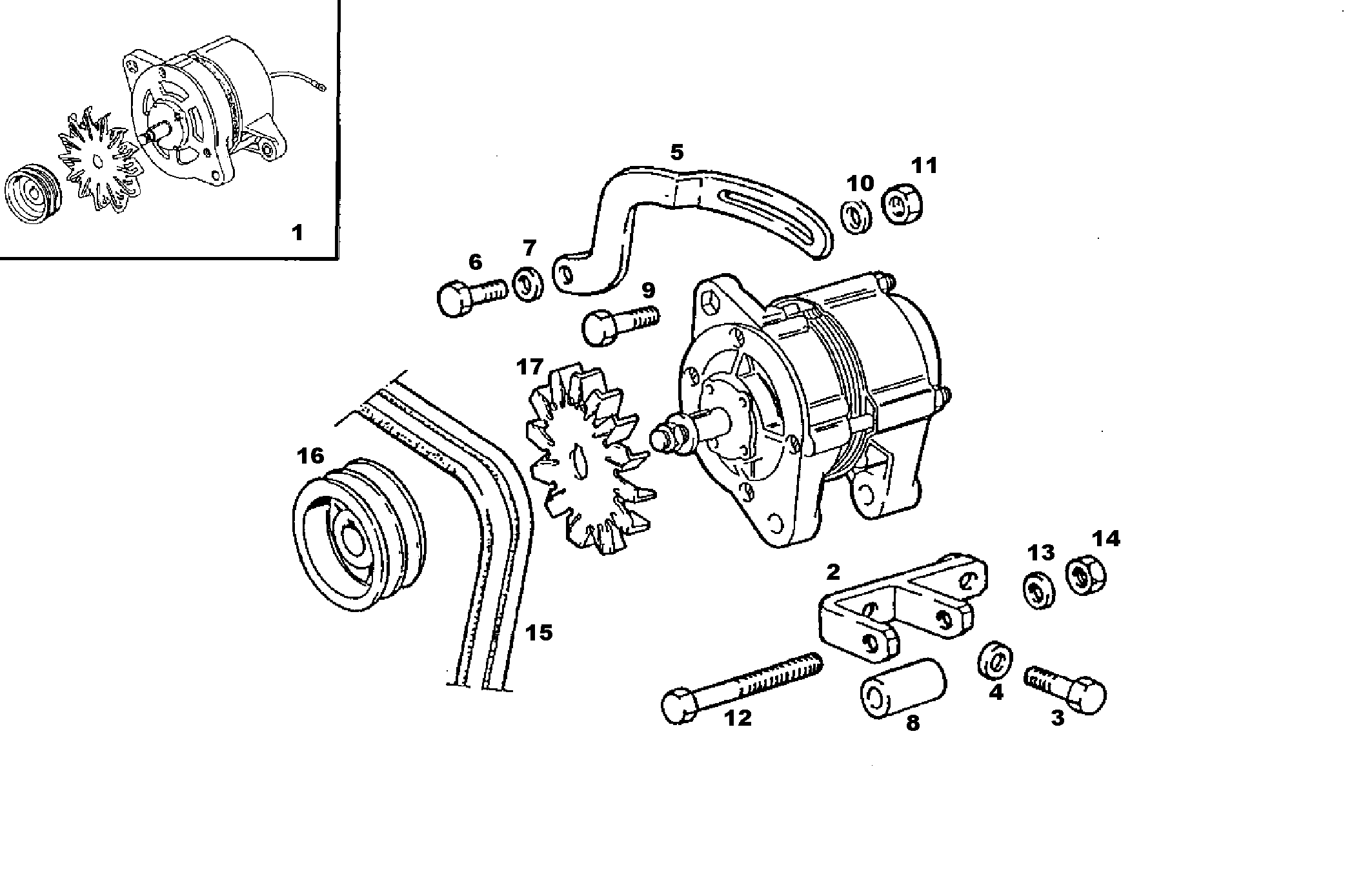

A14020011 SELF-REGULATED ALTERNATOR - 12V 45A

Iveco/FPT SELF-REGULATED ALTERNATOR

Item Part number Description
1 8014071 ALTERNATOR ASSY 12V
2 8015283 SUPPORT
3 8014502 SCREW
4 17090174 SPRING WASHER Ø10X20 MM
5 8016579 BELT TENSIONER
6 8014381 SCREW
7 17091074 WASHER Ø12X24X2,8 MM
8 8015304 SPACING BAR
9 16607924 HEXAGON BOLT M10X1,5X40 MM
10 17090474 SPRING WASHER Ø10X27 MM SP=2,5
11 17152921 HEXAGON NUT M10X1,5
12 16611324 HEXAGON BOLT M12X130 MM
14 17038521 HEXAGON NUT M12X1,5
15 4631961 SET OF V-BELTS KIT
16 8014706 PULLEY
17 4717026 GENERATOR FAN MARELLI
