7675Si15.05

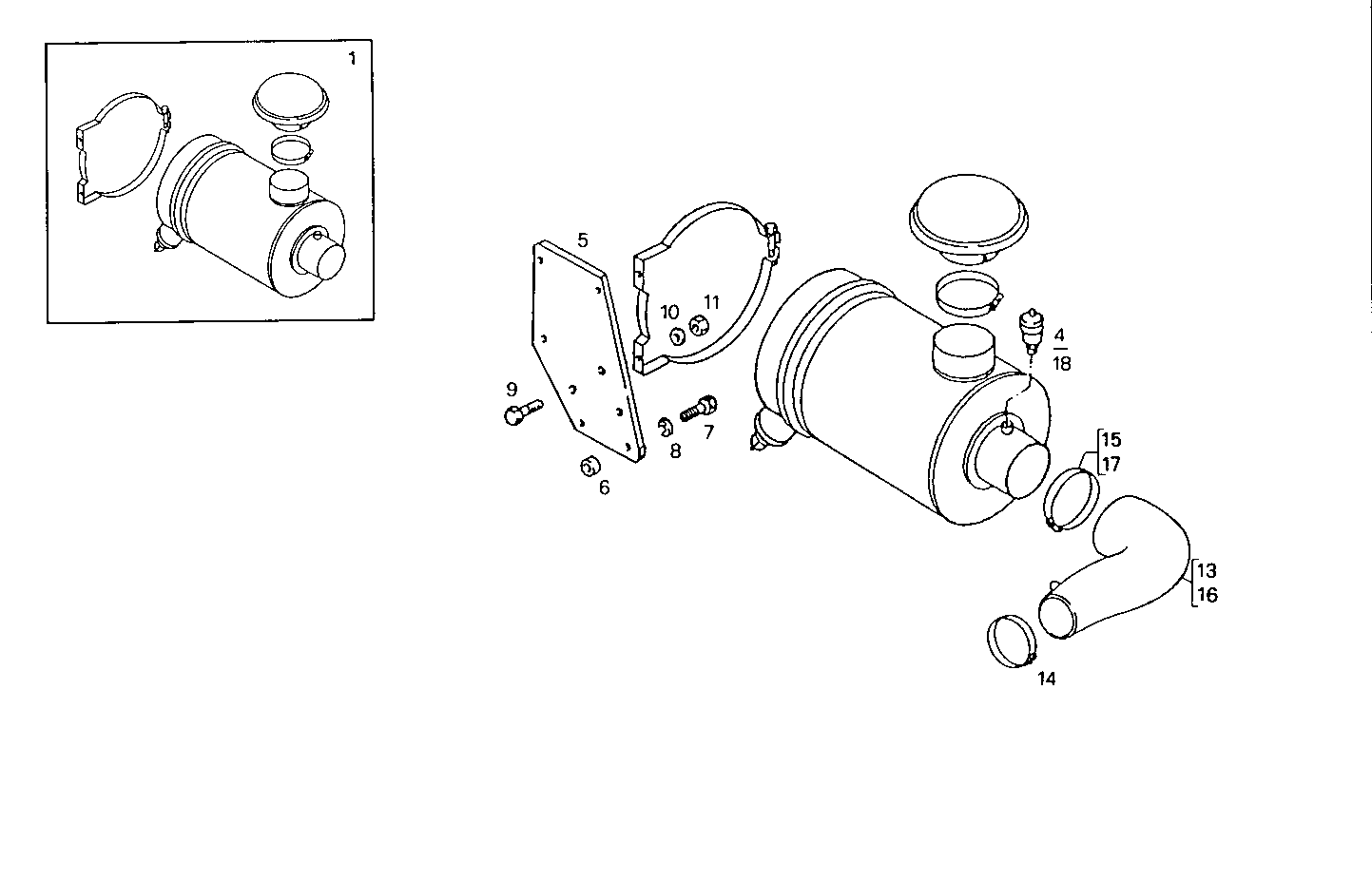

A21210002 DRY AIR CLEANER - with mechanical clogging gauge - genset
Item | Part number | Description |
---|---|---|
1 | 8016743 | AIR CLEANER ASSY |
4 | 4936137 | CHOCKED FILTER INDIC. MECHANICAL |
5 | 8014314 | PLATE |
6 | 8014162 | SPACING BAR |
7 | 8114495 | SCREW |
8 | 17091074 | WASHER Ø12X24X2,8 MM |
9 | 16607624 | SCREW M10X25 |
10 | 17090174 | SPRING WASHER Ø10X20 MM |
11 | 17038121 | HEXAGON NUT M10 |
13 | 8015191 | RUBBER SLEEVE [up to 10-93] |
14 | 17765291 | CLIP Ø80/100 MM |
15 | 17765791 | CLIP DIA 130/150 [up to 10-93] |
16 | 8017063 | RUBBER SLEEVE [from 10-93] |
17 | 17765391 | CLIP Ø90/110 MM |
18 | 8022540 | CHOCKED FILTER INDIC. MECHANICAL |
