7675Si15.05

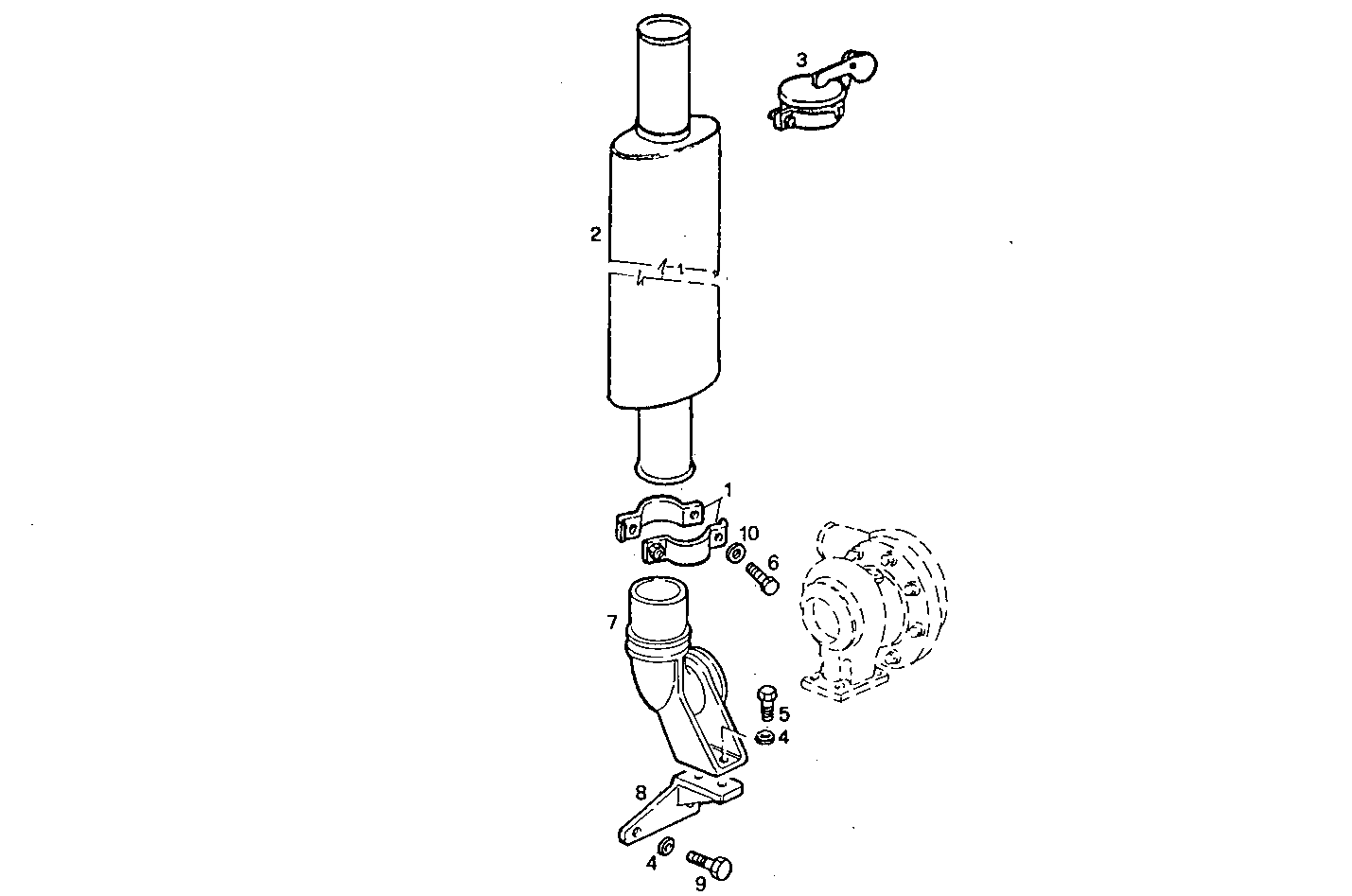

A23010012 VERTICAL SILENCER
Item | Part number | Description |
---|---|---|
1 | 5109263 | CLIP |
2 | 5146413 | SILENCER ASSY |
3 | 5123289 | COVER |
4 | 17090174 | SPRING WASHER Ø10X20 MM |
5 | 16607624 | SCREW M10X25 |
6 | 16605524 | HEXAGON BOLT M8X20 MM |
7 | 8016436 | EXHAUST ELBOW |
8 | 8016536 | SUPPORT |
9 | 8017639 | SCREW |
10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
