7675Si15.05

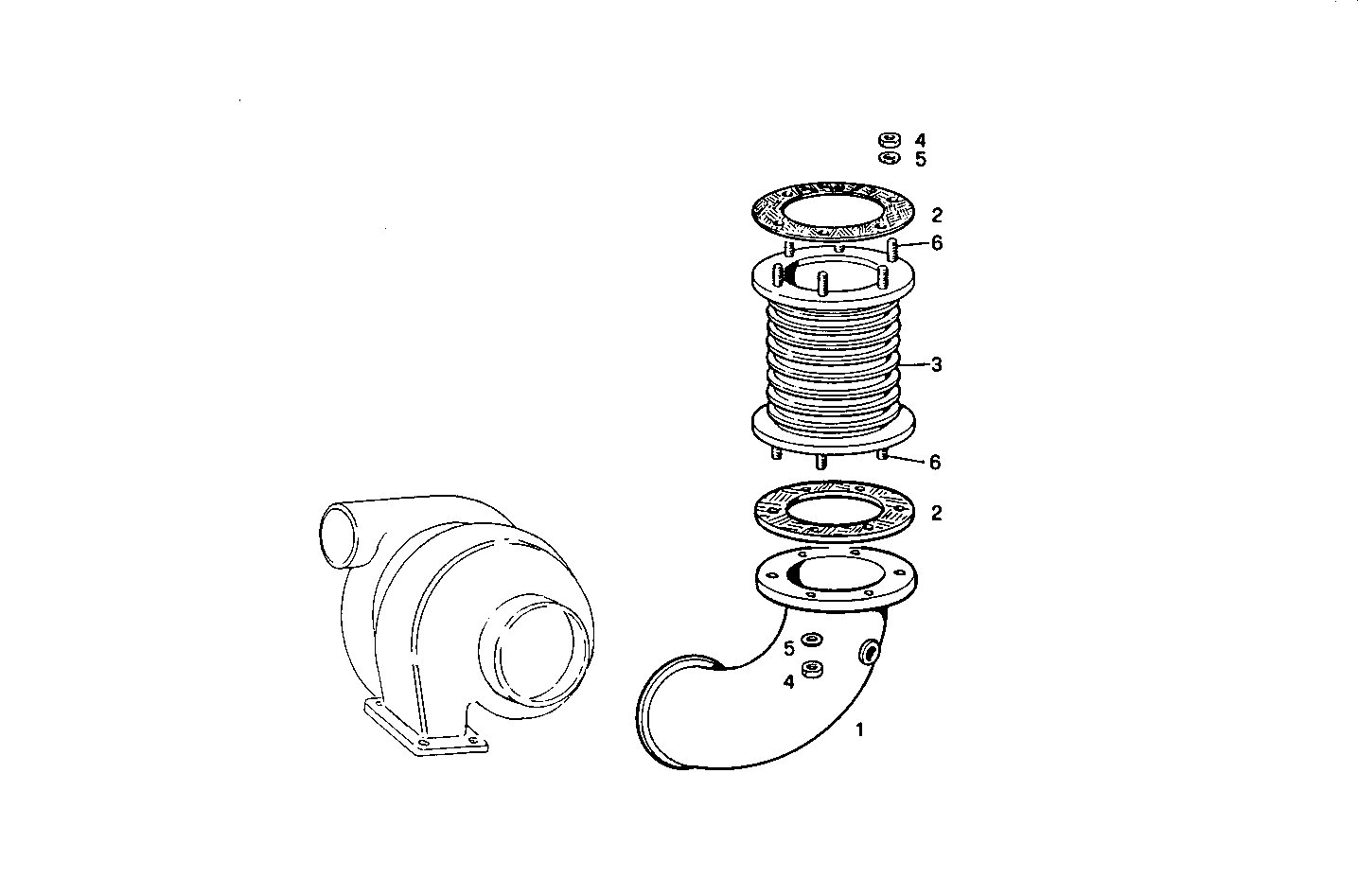

A40010011 TURNING EXHAUST ELBOW WITH BELLOWS
| Item | Part number | Description |
|---|---|---|
| 1 | 8014237 | EXHAUST ELBOW |
| 2 | 8009600 | GASKET |
| 3 | 8101671 | EXHAUST BELLOWS |
| 4 | 17038221 | HEXAGON NUT M10 |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 13449524 | STUD M10X1,25X15X25 |
