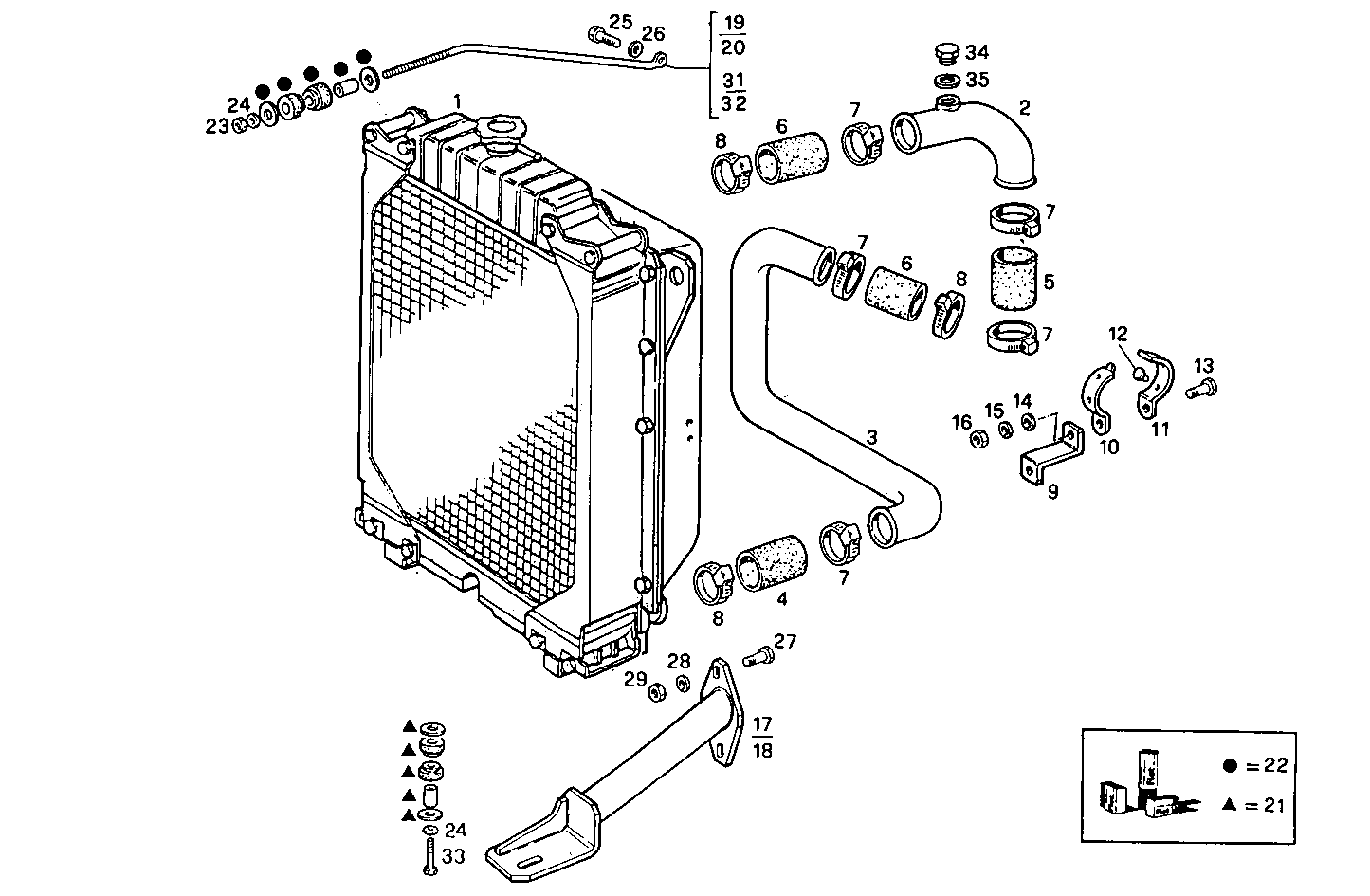

A22010033 RADIATOR FOR SETTING TILL MAX POWER

Iveco/FPT RADIATOR FOR SETTING TILL MAX POWER

Item Part number Description
1 8015724 WATER RADIATOR ASSY
2 8105330 WATER PIPE
3 8015982 WATER PIPE
4 4788148 WATER HOSE
5 4787630 RUBBER SLEEVE
6 98432897 WATER HOSE
7 17764891 CLIP Ø40/60 MM
8 98490783 CLIP Ø55-65 MM
9 8015261 RETAINER
10 8113298 CLAMP
11 8113299 CLAMP
12 1366290 RUBBER LUG
13 16605624 HEXAGON BOLT M8X25 MM (8.8)
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 17094914 WASHER 8x16
16 17037931 HEXAGON NUT M8X1,25
17 8014425 SUPPORT LEFT
18 8014424 SUPPORT RIGHT
19 8014451 TIE ROD LEFT [up to 03-93]
20 8014452 TIE ROD RIGHT [up to 03-93]
21 8090341 KIT-RADIATOR A.S. COMPLETE
22 8090413 KIT-RADIATOR A.S. COMPLETE
23 17038421 HEXAGON NUT M12 (8)
24 17091074 WASHER Ø12X24X2,8 MM
25 8014453 SCREW
26 17090174 SPRING WASHER Ø10X20 MM
27 16614824 SCREW M16X50
28 17092174 SPRING WASHER Ø16X32X3,4
29 17038921 NUT M16X2
31 8015736 TIE ROD LEFT [from 03-93]
32 8015737 TIE ROD RIGHT [from 03-93]
33 15541521 SCREW M12X1.25X90 [up to 565948]
34 10300911 PLUG M8
35 4858605 WASHER Ø8X12 MM
