7675SU00.00

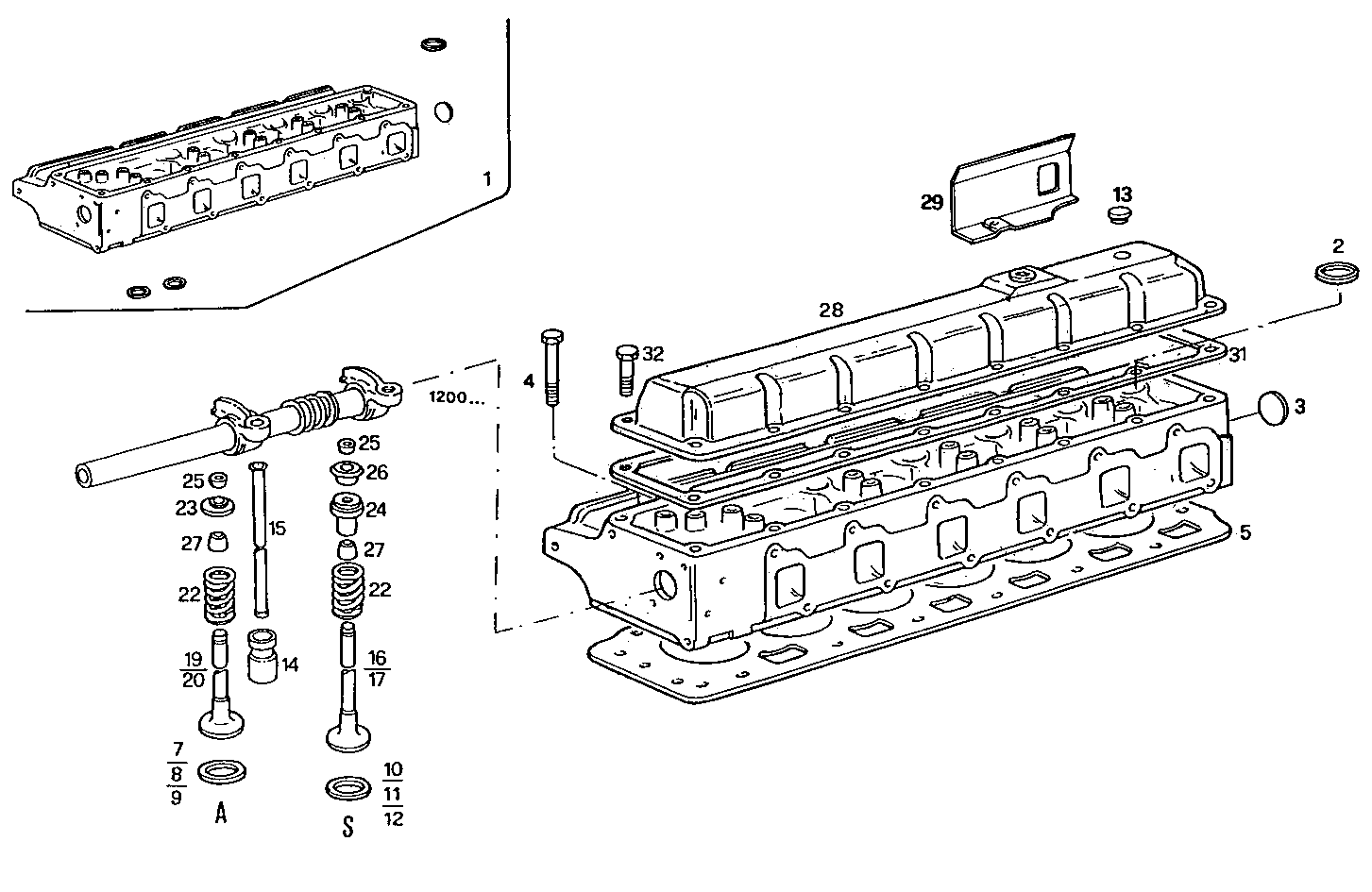

0600.156 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 87840037 CYLINDER HEAD ASSY
2 83957021 PLUG
3 83957025 PLUG
4 87801691 SCREW
5 87801753 CYL.HEAD GASKET
7 81876756 VALVE SEAT STD.
8 81876763 VALVE SEAT +0.25
9 81876768 VALVE SEAT +0.51
10 81865194 VALVE SEAT STD. EXHAUST
11 81865195 VALVE SEAT +0.25 EXHAUST
12 81865196 VALVE SEAT +0.51 EXHAUST
13 87761857 PLUG
14 83946434 VALVE TAPPET
15 81877890 PUSHROD
16 82850523 EXHAUST VALVE
17 82850521 EXHAUST VALVE 0,015 MM
19 82850530 INLET VALVE
20 82850528 INLET VALVE 0,015 MM
22 83999742 ENGINE VALV.SPRING
23 83958102 TAPPET INTAKE
24 83952336 TAPPET EXHAUST
25 81876796 VALVE CONE
26 83952337 CAP
27 87840154 RING
28 87800926 CYL. HEAD COVER
29 81876817 PIPE SOCKET
31 83976376 HEAD COVER GASKET
32 83949109 SCREW
