7675SU00.00

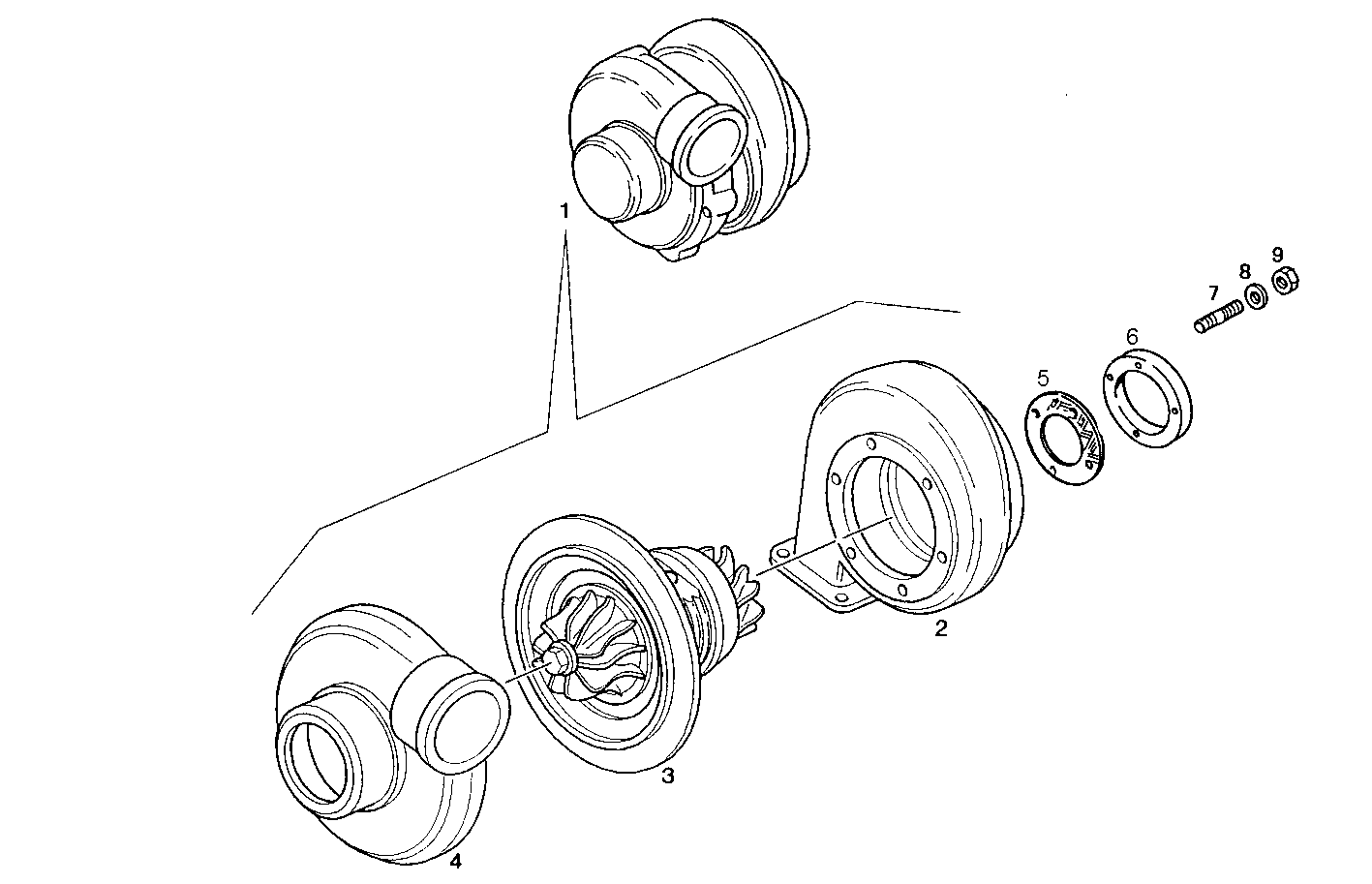

2400.143 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 87840733 | TURBOCHARGER ASSY |
| 2 | 9969259 | COVER |
| 3 | 9969258 | TURBOCHARGER |
| 4 | 9969260 | COVER |
| 5 | 4734717 | GASKET |
| 6 | 8113659 | FLANGE |
| 7 | 16729324 | STUD M8X12X20 MM |
| 8 | 17089674 | SPRING WASHER Ø8X16 MM SP=2,2 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
