7675SU00.00

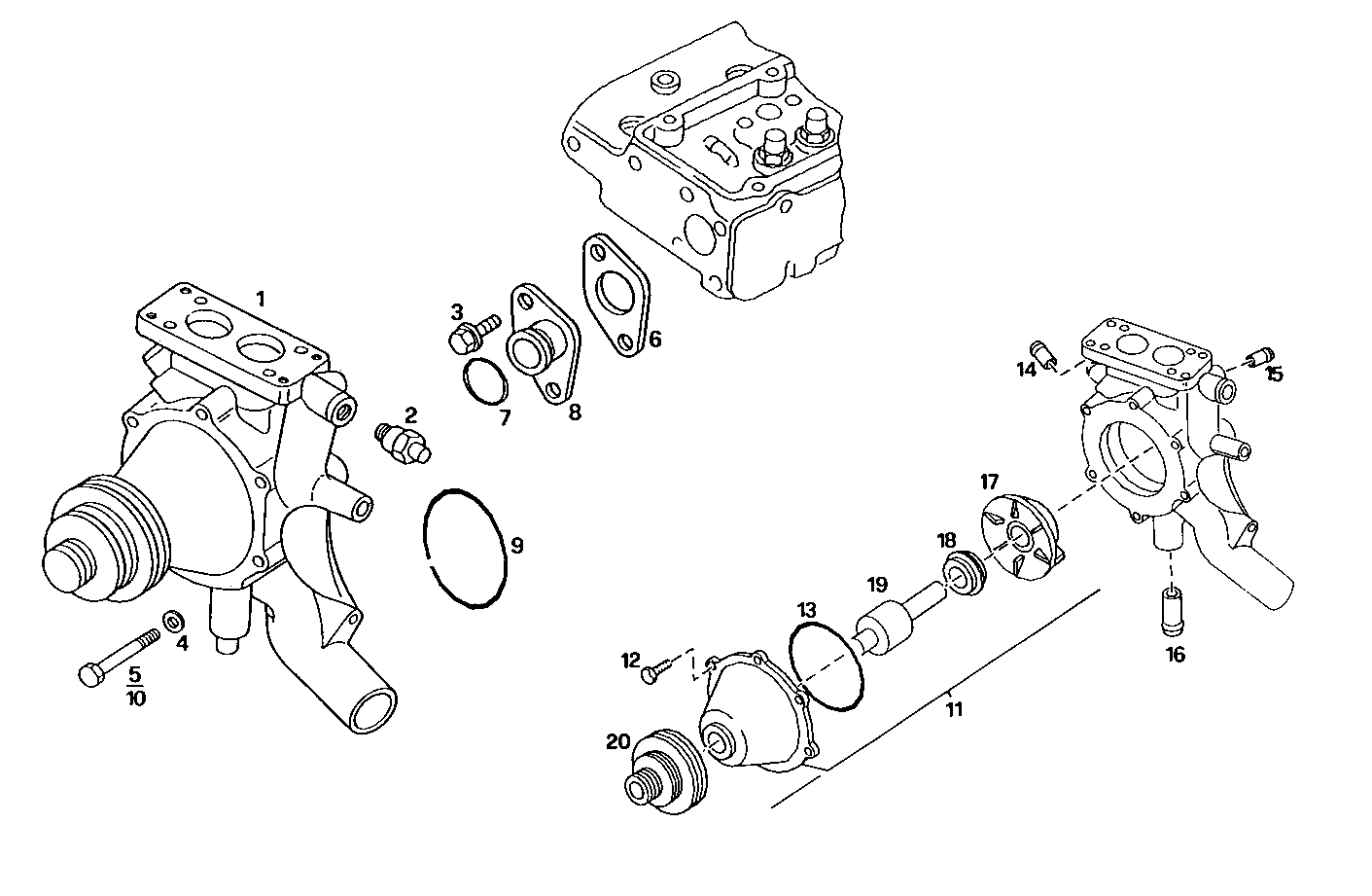

3200.104 WATER PUMP
| Item |
Part number |
Description |
|
1 |
87801637 |
WATER PUMP ASSY |
|
2 |
83917490 |
TRANSMITTER |
|
3 |
82853254 |
SCREW |
|
4 |
83935787 |
WASHER |
|
5 |
83908326 |
SCREW |
|
6 |
87800983 |
FLAT ENGINE GASKET |
|
7 |
14463881 |
O-RING Ø3,53X34,52 MM |
|
8 |
83999257 |
FLANGE |
|
9 |
83416201 |
O-RING |
|
10 |
81821826 |
SCREW |
|
11 |
87801641 |
COVER ASSY |
|
12 |
16287221 |
HEXAGON BOLT M8X25 MM |
|
13 |
87840712 |
O-RING |
|
14 |
87840365 |
WATER PIPE |
|
15 |
87840710 |
WATER PIPE |
|
16 |
87841218 |
WATER PIPE |
|
17 |
87840010 |
WATER PUMP IMPELL. |
|
18 |
81868281 |
BUSH |
|
19 |
83958136 |
DRIVE BEARING |
|
20 |
87801638 |
PULLEY |
