7675U00.00

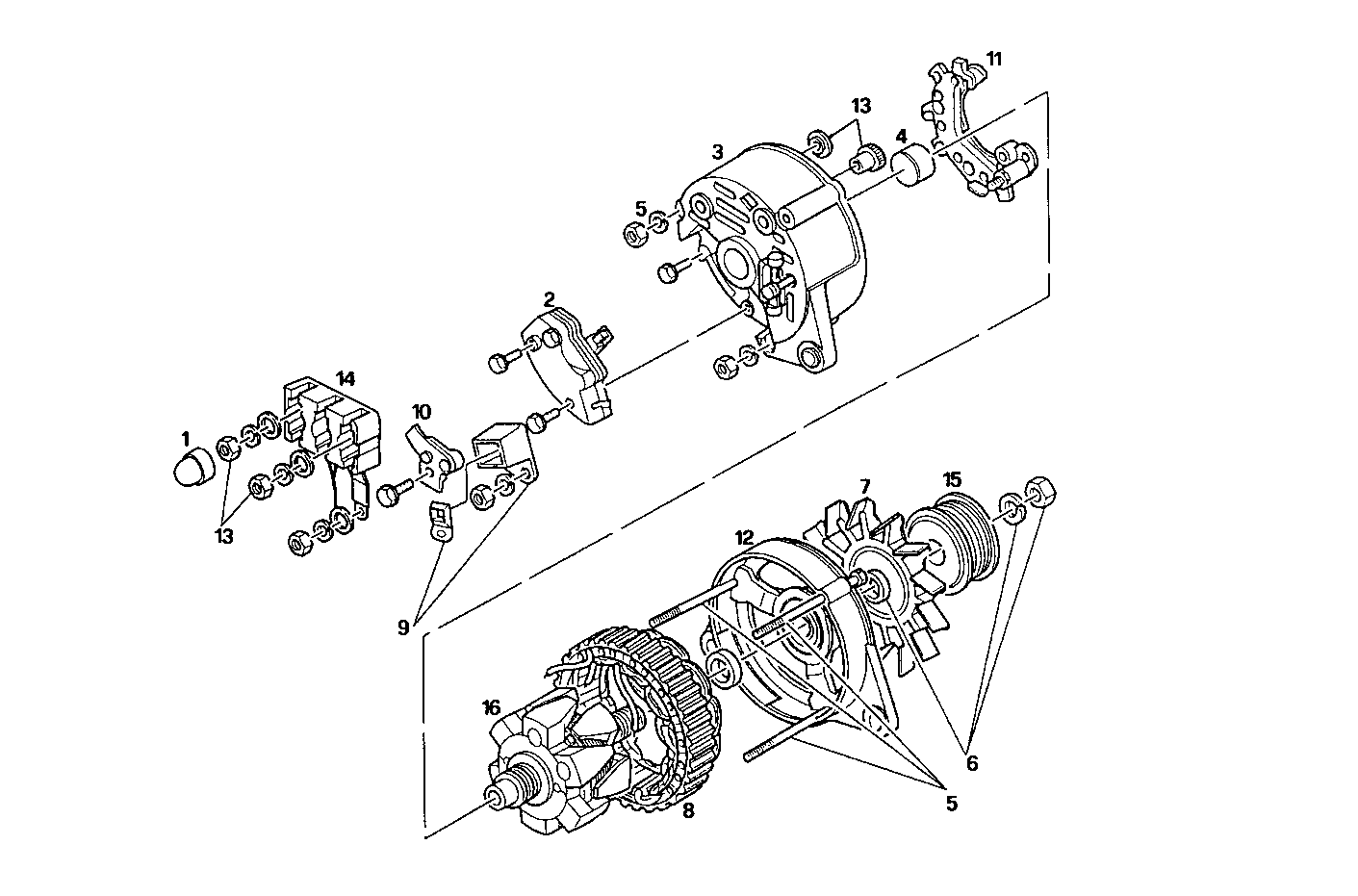

4030.049 GENERATOR (COMPONENTS)
Item | Part number | Description |
---|---|---|
1 | 81864706 | CAP |
2 | 82851898 | VOLTAGE REGULATOR |
3 | 82010946 | SUPPORT |
4 | 83961479 | DRIVE BEARING |
5 | 83961480 | KIT-GENERATOR |
6 | 83961481 | KIT-GENERATOR |
7 | 83961483 | GENERATOR FAN |
8 | 83981541 | STATOR |
9 | 83981549 | KIT-GENERATOR |
10 | 83999819 | INDICATOR |
11 | 83999825 | RECTIFIER |
12 | 83999866 | SUPPORT |
13 | 83999870 | KIT-GENERATOR |
14 | 83999875 | RETAINER |
15 | 82001941 | PULLEY |
16 | 83961487 | ROTOR |
