8031i05.05

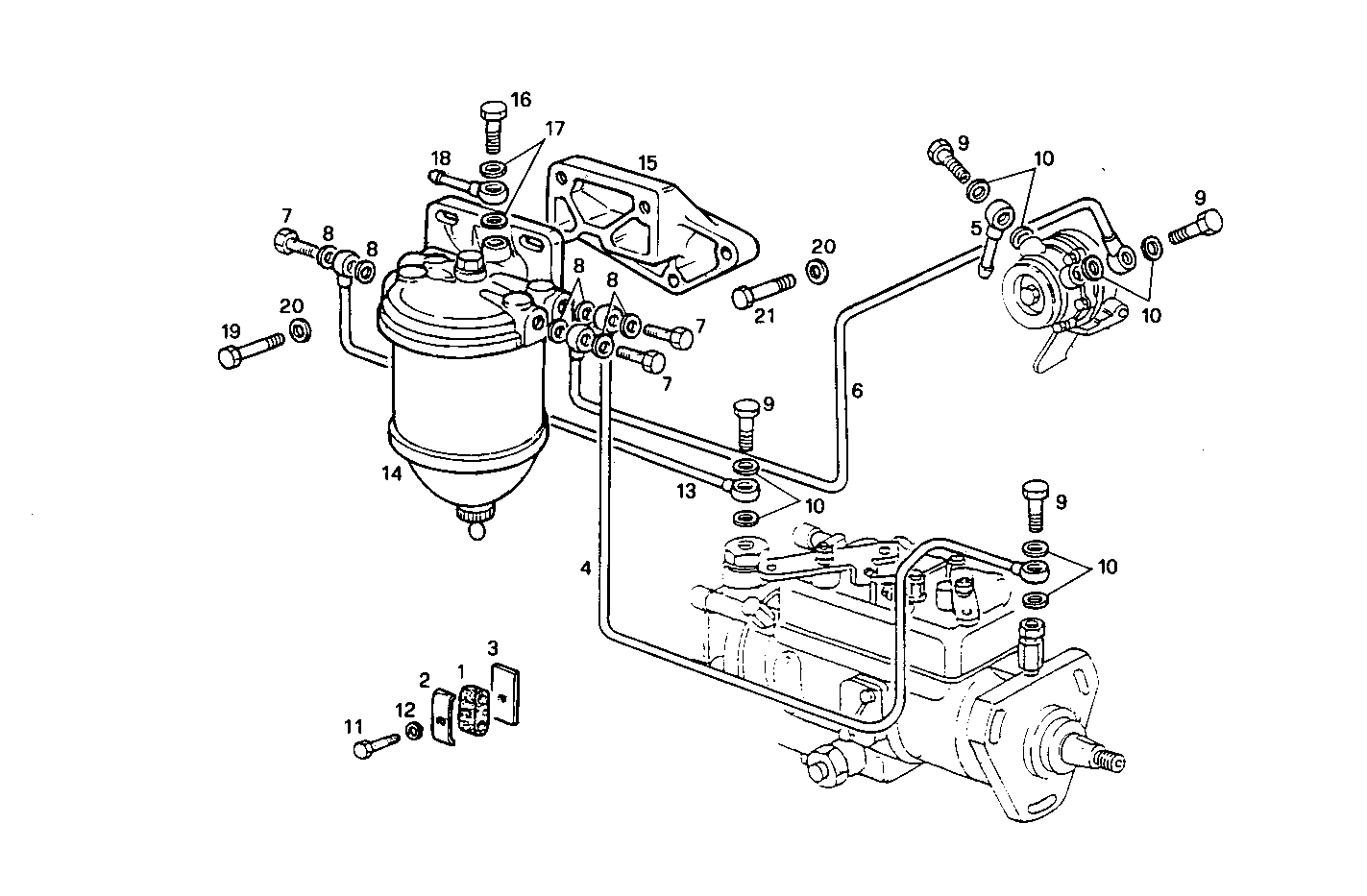

A15040001 SIMPLE FUEL FILTER - CAV

Iveco/FPT SIMPLE  FUEL FILTER

Item Part number Description
1 4659217 DOWEL
2 4659218 CLIP
3 4659219 PLATE
4 8009105 FUEL LINE
5 98416591 SWIVEL COUPLING
6 8009106 FUEL LINE
7 4864083 SCREW CONNECTOR M14X1,5X30 MM
8 4858608 SEAL GASKET dia.14x19,5x1,5
9 4864082 BANJO BOLT M12X1,5X25 MM
10 4858607 WASHER Ø12X17 MM SP=1,5 MM
11 10978221 HEXAGON BOLT M5X25 MM
12 17800271 WASHER
13 8009107 FUEL LINE
14 4612229 FUEL FILTER
15 4615697 SUPPORT
16 4617972 SCREW CONNECTOR
17 4858606 GASKET Ø10X14X1 MM
18 4671701 SWIVEL COUPLING
19 11306921 SCREW M10X1,25X30
20 11198371 SPRING WASHER Ø10X20 MM
21 15888821 HEXAGON BOLT M10X1,25X70 MM
