8031i06.05

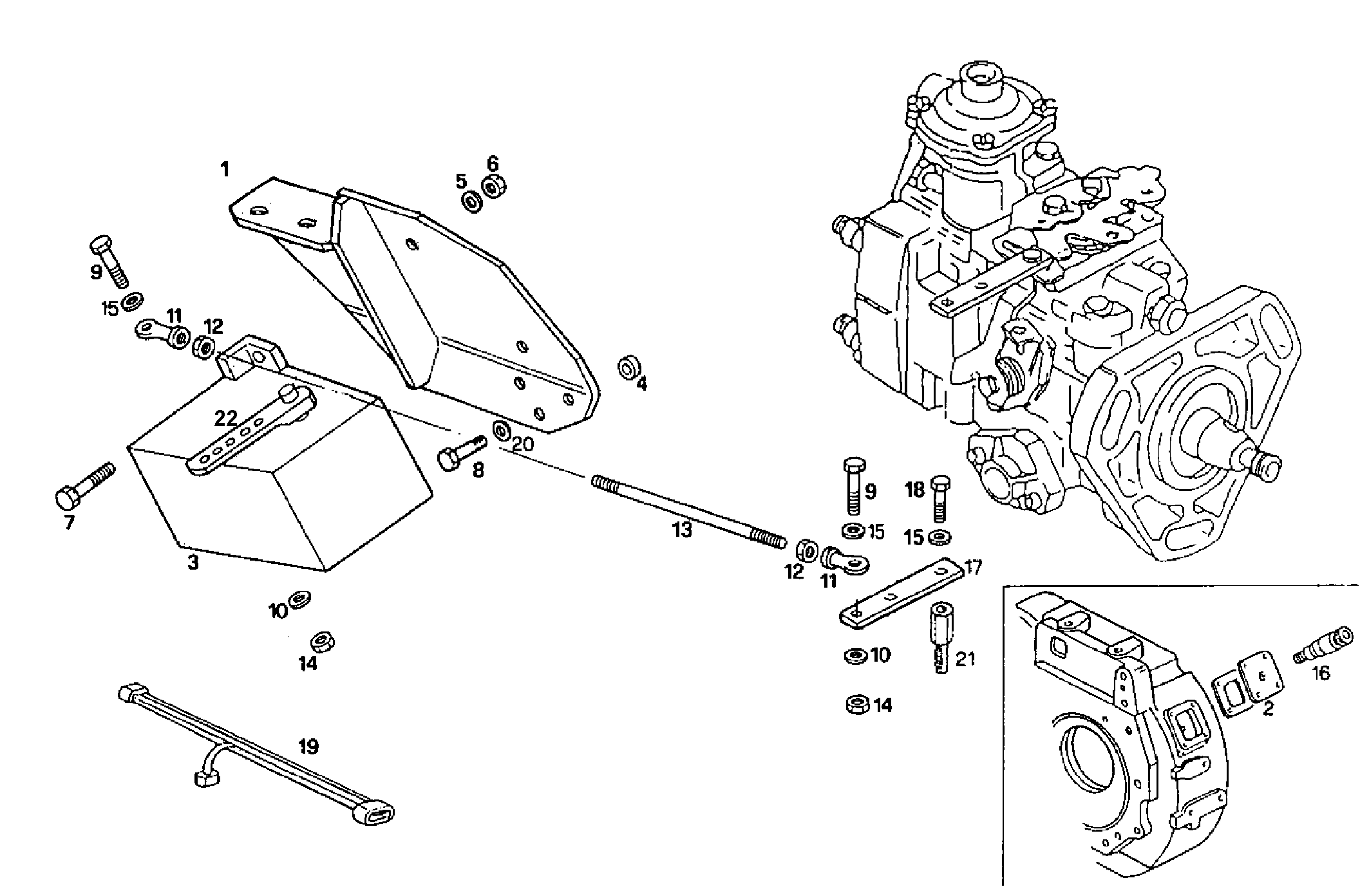

A28100011/01 ELECTRONIC GOVERNOR G.A.C. - 12V

Iveco/FPT ELECTRONIC GOVERNOR G.A.C.

Item Part number Description
1 8029265 RETAINER [from 10-99]
2 8025809 COVER
3 8018971 ENGINE ACTUATOR ASSY
4 8101556 SPACING BAR SP=13,00 MM
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 17037931 HEXAGON NUT M8X1,25
7 16605624 HEXAGON BOLT M8X25 MM (8.8)
8 15970921 HEXAGON BOLT M10X1,25X35 MM
9 16603824 SCREW M6X25
10 17094704 WASHER Ø6X12X1,6 MM
11 4934541 BRACE/STRUT
12 17037821 HEXAGON NUT M6X1
13 8823237 TIE ROD
14 17152721 NUT M6
15 17088474 WASHER Ø6X12 MM
16 8018673 PICK-UP
17 8024920 RETAINER
18 16603624 HEXAGON BOLT M6X16 MM (8.8)
19 8018968 ENGINE HARNESS
20 17090474 SPRING WASHER Ø10X27 MM SP=2,5
21 8012878 SPACING BAR
22 8031536 LEVER
