8031i06.05

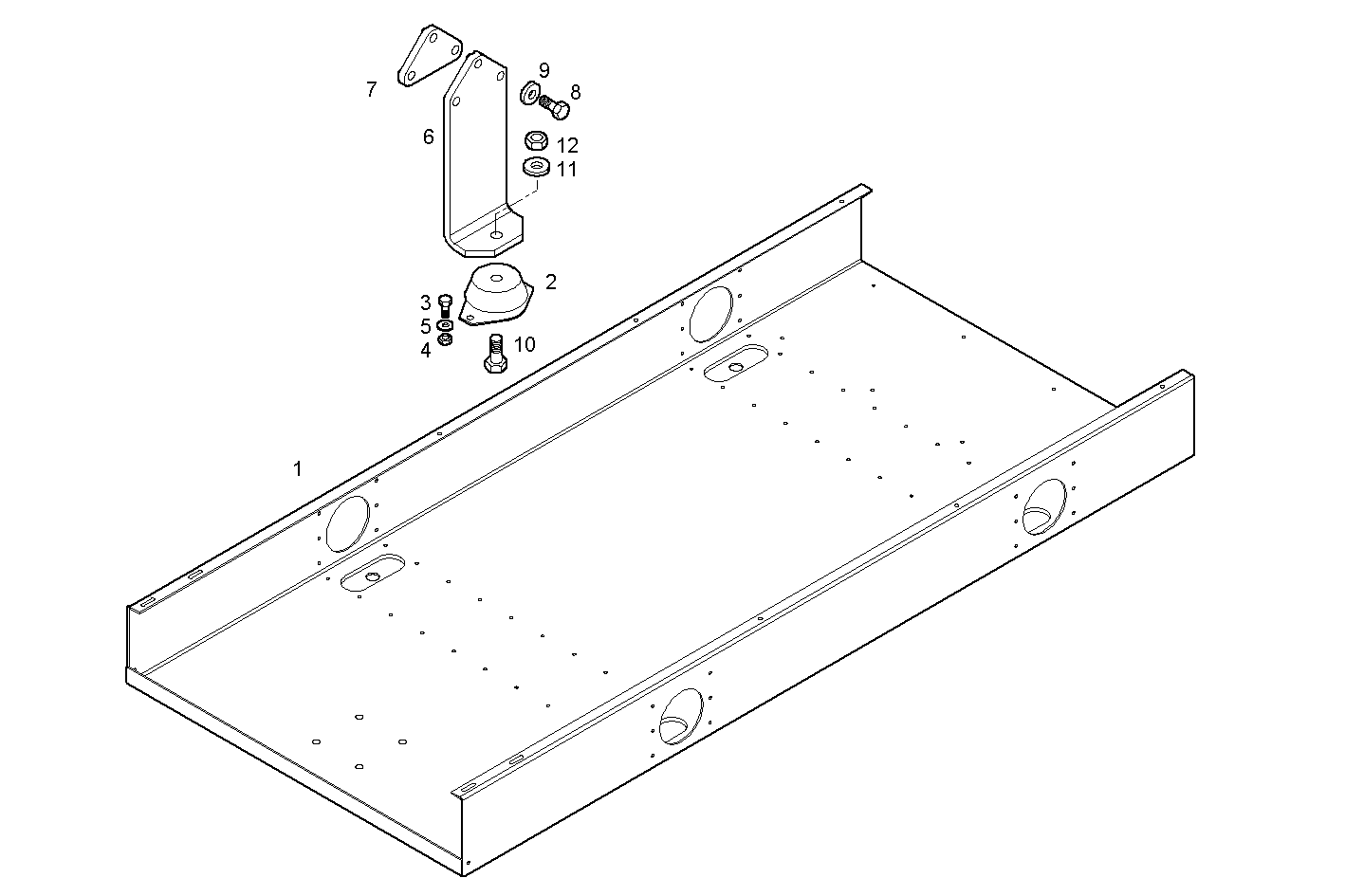

A36510006 SUBBASE FOR GENERATOR UNIT

Iveco/FPT SUBBASE FOR GENERATOR UNIT

Item Part number Description
1 8030260 SUBBSAE-SUPPORT FRAME
2 8016784 RUBBER PAD
3 16607625 SCREW M10X25
4 17038131 HEXAGON NUT M10
5 17090174 SPRING WASHER Ø10X20 MM
6 8028208 FRONT ENG. MOUNT
7 4919820 SPACING BAR
8 16610034 SCREW M12X35 MM
9 17091074 WASHER Ø12X24X2,8 MM
10 16614624 HEXAGON BOLT M16X40 MM
11 17092374 SPRING WASHER Ø16X34X3,6 MM
12 17038931 HEXAGON NUT M16X2
