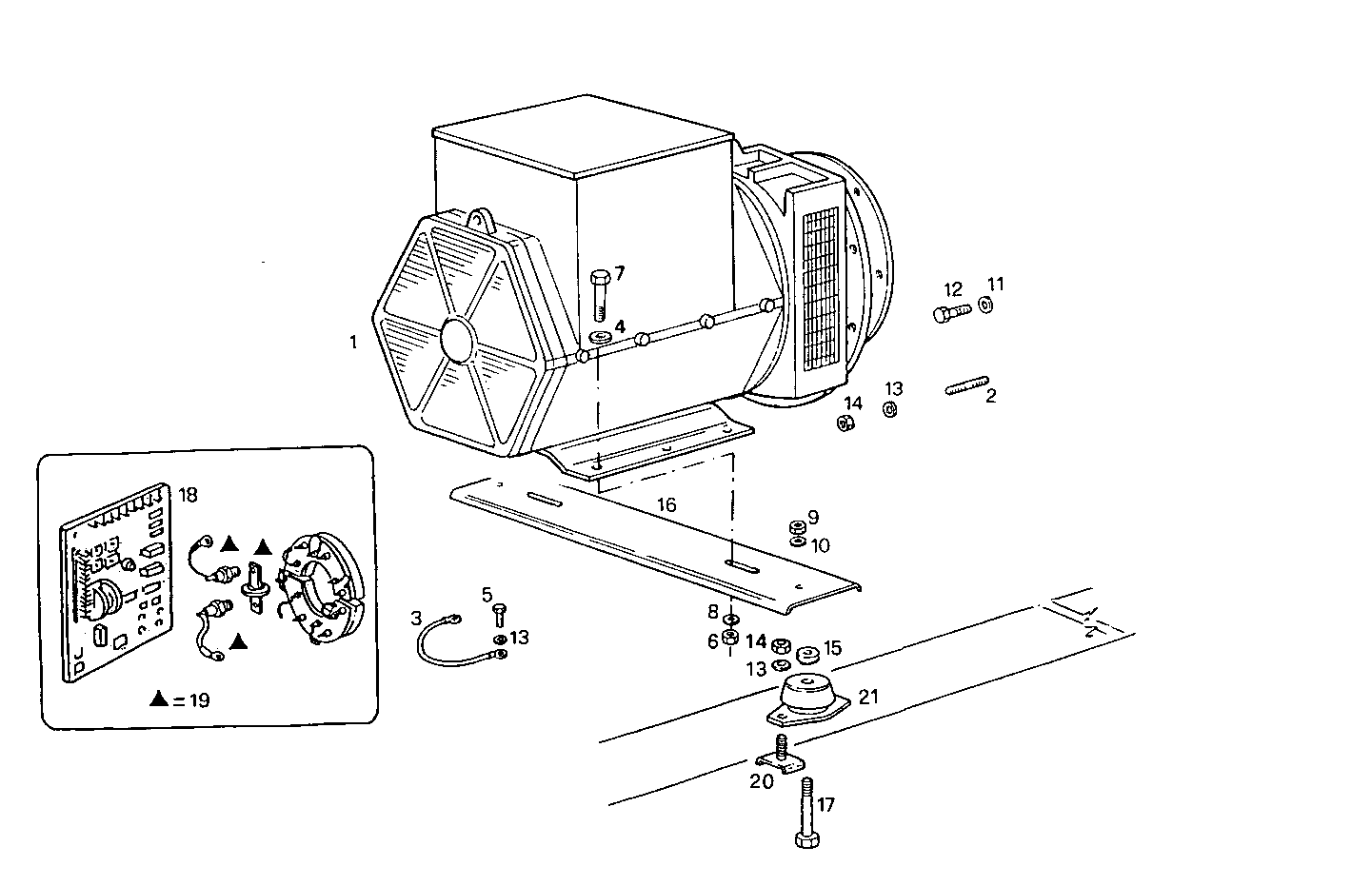

Item |
Part number |
Description |
1 |
8025939 |
ELECTRIC MACHINE BCI 184 G16 50-60HZ |
2 |
16731224 |
STUD M10X25 MM |
3 |
8104707 |
WIRE/CABLE |
4 |
4929369 |
WASHER |
5 |
16043124 |
SCREW M8X14 MM |
6 |
17038421 |
HEXAGON NUT M12 (8) |
7 |
16610124 |
HEXAGON BOLT M12X40 MM |
8 |
17091374 |
SPRING WASHER Ø12X30X3,0 MM |
9 |
17038921 |
NUT M16X2 |
10 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
11 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
12 |
15970521 |
HEXAGON BOLT M10X20 MM |
13 |
17090174 |
SPRING WASHER Ø10X20 MM |
14 |
17038121 |
HEXAGON NUT M10 |
15 |
8015486 |
SPACING BAR |
16 |
8016047 |
SUPPORT |
17 |
16614924 |
SCREW M16X55 |
18 |
8106757 |
EL.MACHINE VOLTAGE REGUL. Stamford |
19 |
8092769 |
KIT-GENERATOR Stamford |
20 |
8016024 |
SCREW |
21 |
8016784 |
RUBBER PAD |
