8031i06.05

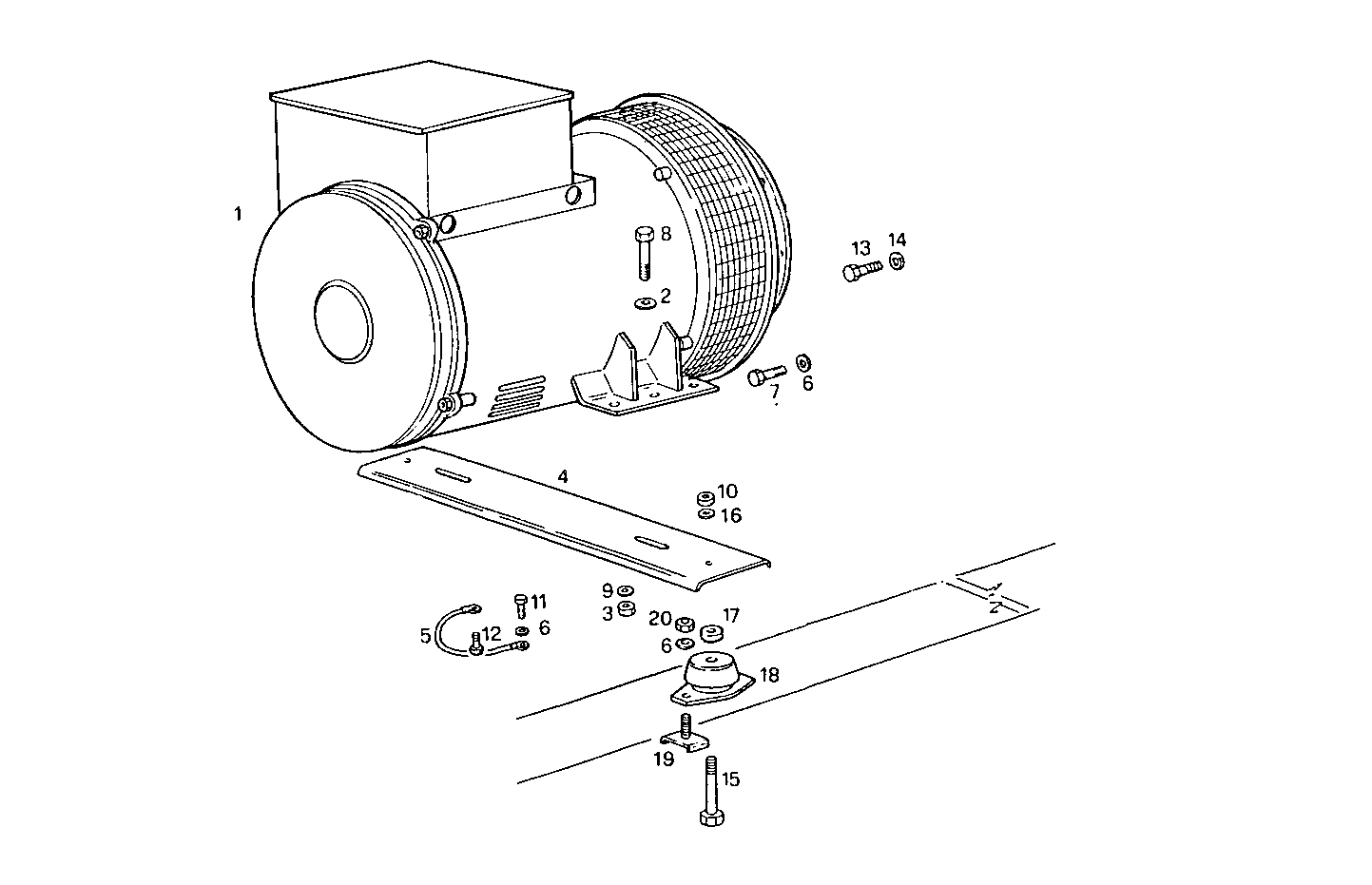

A37210085 SINGLE BEARING ELECTRIC MACHINE - MARELLI

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8025942 ELECTRIC MACHINE M8B 160 SC/4 50-60HZ
2 4929369 WASHER
3 17038421 HEXAGON NUT M12 (8)
4 8016047 SUPPORT
5 8104707 WIRE/CABLE
6 17090174 SPRING WASHER Ø10X20 MM
7 16607824 HEXAGON BOLT M10X35 MM (8.8)
8 16610124 HEXAGON BOLT M12X40 MM
9 17091374 SPRING WASHER Ø12X30X3,0 MM
10 17038921 NUT M16X2
11 16043124 SCREW M8X14 MM
12 16603724 HEXAGON BOLT M6X20 MM (8.8)
13 15970521 HEXAGON BOLT M10X20 MM
14 17494934 WASHER Ø10X18,1X2,2 MM
15 16615324 HEXAGON BOLT M16X80 MM
16 17092374 SPRING WASHER Ø16X34X3,6 MM
17 8016265 SPACING BAR
18 8016784 RUBBER PAD
19 8016024 SCREW
20 17038121 HEXAGON NUT M10
